EVALUATION BOARD SOFTWARE QUICK START PROCEDURES
This section provides quick start procedures and software informa-
tion for using the ADA8282CP-EBZ board.

EVALUATION BOARD SOFTWARE

To use the board with the SDP-B, make sure that the ACE software
is available on your computer. The software installer and a compre-
hensive user guide for the tool are available on the

QUICK START PROCEDURES

Figure 6 shows the typical evaluation board setup for the
ADA8282CP-EBZ. Complete the following steps to enable function-
ality testing of the part:
1. Configure the jumpers as shown in
2. Connect the SDP connector on the ADA8282CP-EBZ to Con-
nector A of the SDP-B.
3. Connect the 6 V power supply to the board at P2 and connect
to a power source.
4. Plug the USB cable into the USB port.
5. Run the ACE software.
6. Upon running the software, the hardware should automatically
be detected (see Figure 3).
Figure 3. ACE Executable
7. Double-click the ADA8282
to the ACE board view (see
analog.com
ACE Wiki.
Figure 2.
evaluation board plug-in to navigate
Figure 4).

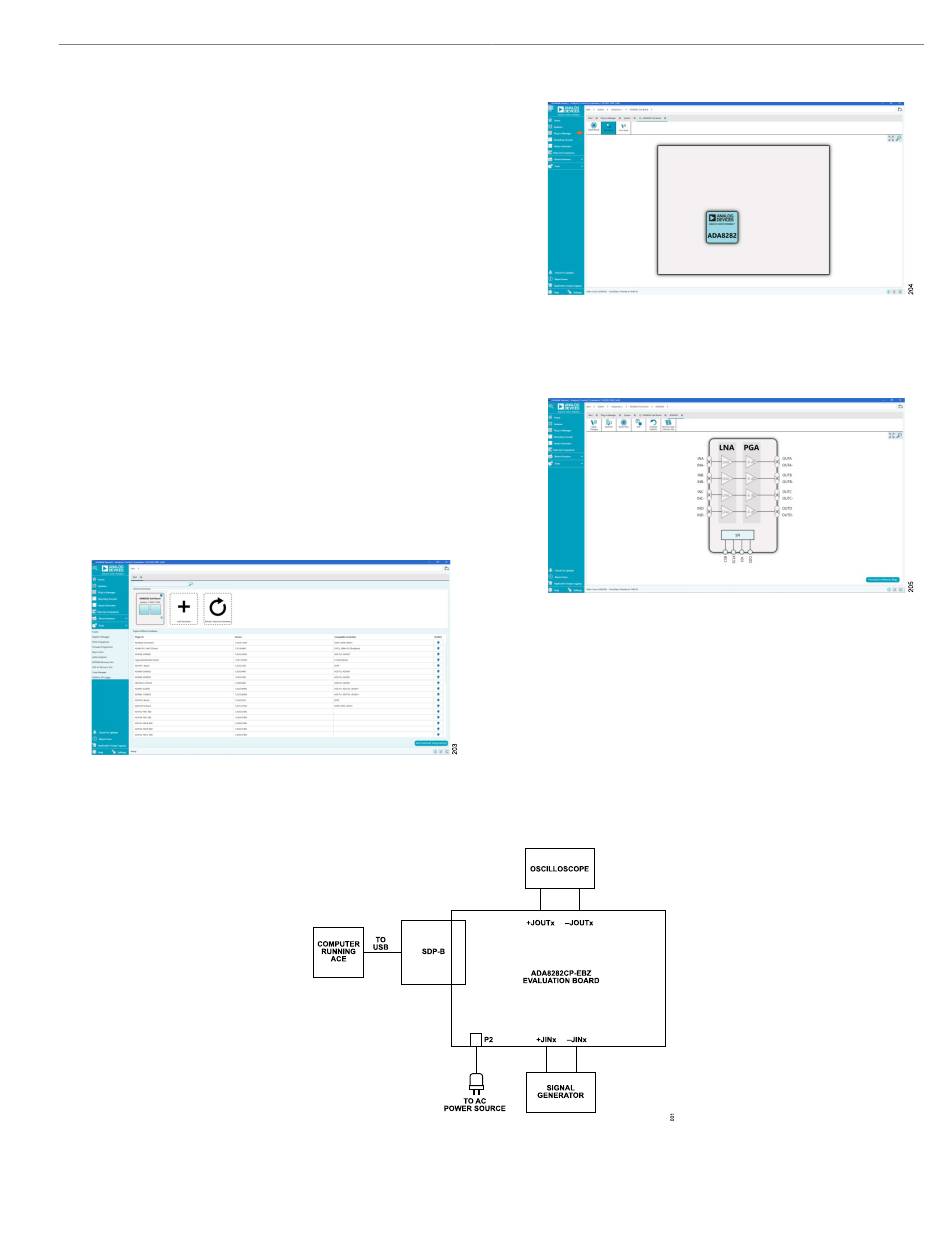

Figure 6. Typical Evaluation Setup
Figure 4. ADA8282 ACE Board View
8. Double-click the ADA8282 component on the board to navigate
to the chip view (see Figure
previous or different view.
Figure 5. ADA8282 ACE Chip View
9. Write a data byte of 0x0F to Register 0x17 to enable all
channels of the device, using any of the configuration methods
discussed in the Configuring the ADA8282 Through ACE
tion.
10. Power up the signal generator and check the waveform through
the oscilloscope. The default gain is 18 dB for all channels.
EVAL-ADA8282
5). Click the tabs to select a
sec-
