One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
FEATURES
ADAQ23875
15 MSPS, 16-bit µModule evaluation board
Versatile analog signal conditioning circuitry
On-board reference, LDO, and power supply circuits
PC software for control and data analysis of time and
frequency domain
System demonstration platform-compatible (SDP-H1)
EVALUATION BOARD KIT CONTENTS
EVAL-ADAQ23875FMCZ evaluation board
12 V wall adapter power supply
EQUIPMENT NEEDED
PC running Windows 10 or higher
SDP-H1
(EVAL-SDP-CH1Z) controller board
Low noise, precision signal source (such as the SYS-2700 series)
Standard USB A to USB mini-B
Band-pass filter suitable for 16-bit testing (value based on
signal frequency)
SOFTWARE NEEDED
EVAL-ADAQ23875FMCZ
SDP-H1
driver
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Arrow.com.
Downloaded from
ADAQ23875
15 MSPS, 16-Bit, μModule Data Acquisition Solution
ACE
plug-in

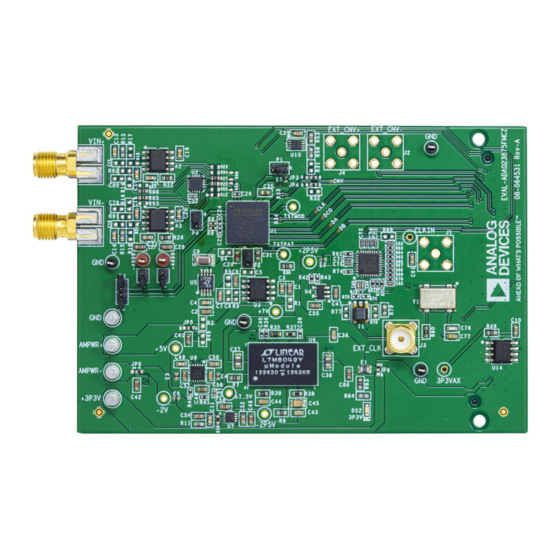

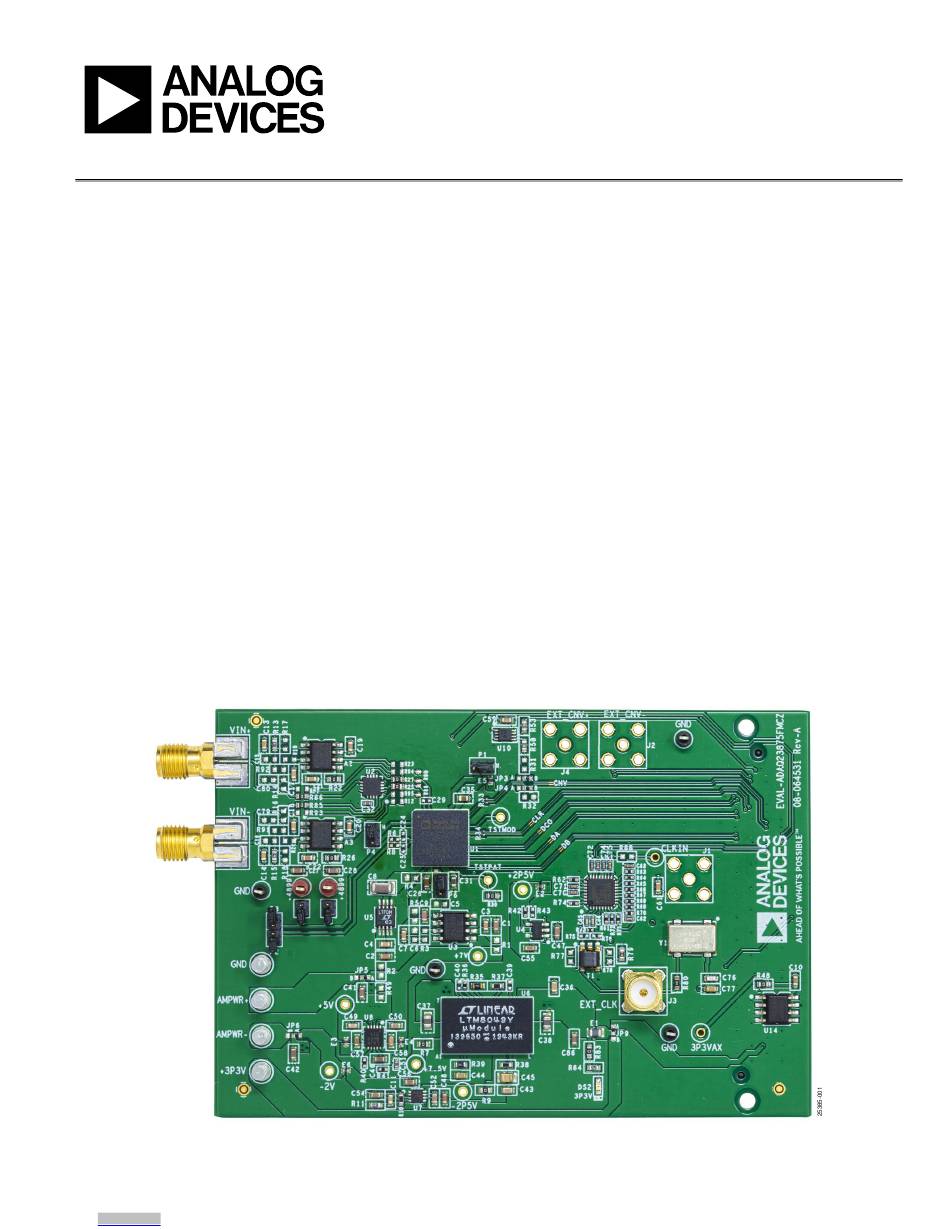

EVALUATION BOARD PHOTOGRAPH
EVAL-ADAQ23875FMCZ
GENERAL DESCRIPTION
The EVAL-ADAQ23875FMCZ evaluation board enables
simplified evaluation of the
high speed, precision µModule® data acquisition solution.
The evaluation board demonstrates the performance of the
ADAQ23875
µModule and is a versatile tool for a variety of
applications.
The ADAQ23875 µModule combines multiple common signal
processing and conditioning blocks in a single device that includes
a low noise, fully differential analog-to-digital converter (ADC)
driver, a stable reference buffer, a high resolution, 16-bit, 15 MSPS
successive approximation register (SAR) ADC, and the critical
passive components necessary for optimum performance. A full
description of this product is available in the
sheet, which must be consulted when using the evaluation board.
The EVAL-ADAQ23875FMCZ evaluation board interfaces with
the high speed system demonstration platform,
SDP-CH1Z) via a 160-pin connector, as shown in Figure 2.
Figure 1.
Rev. 0 | Page 1 of 26
User Guide
UG-1896
ADAQ23875
15 MSPS, 16-bit,
ADAQ23875
data
SDP-H1 (EVAL-
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADAQ23875FMCZ
Summary of Contents for Analog Devices EVAL-ADAQ23875FMCZ
-
Page 1: Features
Low noise, precision signal source (such as the SYS-2700 series) Standard USB A to USB mini-B The EVAL-ADAQ23875FMCZ evaluation board interfaces with Band-pass filter suitable for 16-bit testing (value based on the high speed system demonstration platform,... -
Page 2: Table Of Contents
Description of Analysis Window ..........8 Evaluation Board Photograph ............1 Troubleshooting ................15 Revision History ................2 Connecting the EVAL-ADAQ23875FMCZ and the SDP-H1 to the PC ..................15 Evaluation Board Hardware ............3 Verifying the Board Connection ..........15 Setting Up the Evaluation Board ..........3 Disconnecting the EVAL-ADAQ23875FMCZ ...... -
Page 3: Evaluation Board Hardware
ADAQ23875), a choice of a 4.096 V reference (U5, LTC6655) from an external 3.3 V supply applied using the JP9 solder link if or 2.048V reference (U3, ADR4520), on-board power supplies desired (see Table 2). The EVAL-ADAQ23875FMCZ positive to derive the necessary supply rails using the LTM8049 (U6), rails, 7 V (+VS), 5 V (VDD), and 2.5 V (VIO), are generated... -
Page 4: Analog Inputs
The default board configuration presents 4.096 V on the REFBUF pin. The default The SMA connectors on the EVAL-ADAQ23875FMCZ (VIN+ board configuration also presents a buffered 2.048 V (midscale) and VIN−) provide analog inputs from a low noise, audio at the VCMO pin of the FDA on the ADAQ23875. -
Page 5: Evaluation Board Connectors
There are several test points and single in line (SIL) headers on 160-pin FMC connector used to interface with the SDP-H1) used the EVAL-ADAQ23875FMCZ. These test points provide easy on the EVAL-ADAQ23875FMCZ are listed in Table 2 and access to on-board signals for troubleshooting and evaluation Table 3, respectively. -
Page 6: Software Installation
To ensure that the evaluation system is correctly recognized when it is connected to the PC, install the software and the SDP-H1 driver before connecting the EVAL-ADAQ23875FMCZ and the SDP-H1 board to the USB port of the PC. INSTALLING THE... - Page 7 EVAL-ADAQ23875FMCZ User Guide UG-1896 The Windows Security window appears. Click Install (see The installation is complete (see Figure 9). Click Next > Figure 7). The installation is in progress. No action is and then click Finish to complete the installation.
-
Page 8: Software Operation
The Waveform Results section displays amplitude, sample Attached Hardware section. frequency, and noise analysis data for the selected channels. If the EVAL-ADAQ23875FMCZ is not connected to the Click Export to export captured data. The waveform, USB port via the SDP-H1 board when the software is histogram, and FFT data is stored in .xml files, along with the... - Page 9 To perform a linearity test, apply a sinusoidal signal with 0.5 dB analysis. When one frequency is analyzed, use the Singe Tone above full scale to the EVAL-ADAQ23875FMCZ board at the Analysis section. When two frequencies are analyzed, use the VIN+ and VIN−...
- Page 10 UG-1896 EVAL-ADAQ23875FMCZ User Guide Figure 11. EVAL-ADAQ23875FMCZ Board View Rev. 0 | Page 10 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 11 EVAL-ADAQ23875FMCZ User Guide UG-1896 Figure 12. EVAL-ADAQ23875FMCZ Analysis View Figure 13. EVAL-ADAQ23875FMCZ Waveform Rev. 0 | Page 11 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 12 UG-1896 EVAL-ADAQ23875FMCZ User Guide Figure 14. EVAL-ADAQ23875FMCZ Histogram Figure 15. EVAL-ADAQ23875FMCZ FFT Rev. 0 | Page 12 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 13 EVAL-ADAQ23875FMCZ User Guide UG-1896 Figure 16. EVAL-ADAQ23875FMCZ INL Figure 17. EVAL-ADAQ23875FMCZ DNL Rev. 0 | Page 13 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 14 UG-1896 EVAL-ADAQ23875FMCZ User Guide Figure 18. EVAL-ADAQ23875FMCZ FFT with an Oversampling Rate (OSR) of 256×, Inputs Shorted Rev. 0 | Page 14 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from...
-
Page 15: Troubleshooting
User Guide UG-1896 TROUBLESHOOTING SDP-H1 board is the communication link between the PC and the EVAL-ADAQ23875FMCZ. Figure 2 shows a diagram of the connections between the EVAL-ADAQ23875FMCZ and SDP-H1 board. To ensure that the evaluation system is correctly recognized when it is connected to the PC, install the... -
Page 16: Mechanical Stress
UG-1896 EVAL-ADAQ23875FMCZ User Guide Good quality ceramic bypass capacitors of at least 2.2 µF (0402, MECHANICAL STRESS X5R) must be placed from the output of the LDOs generating The mechanical stress of mounting a device to a board may the μModule supply rails (VDD, VIO, VS+, and VS−) to GND cause subtle changes to the SNR and internal voltage reference. -
Page 17: Evaluation Board Schematics
EVAL-ADAQ23875FMCZ User Guide UG-1896 EVALUATION BOARD SCHEMATICS Figure 20. EVAL-ADAQ23875FMCZ Board Schematic, Power Supplies Rev. 0 | Page 17 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from... - Page 18 UG-1896 EVAL-ADAQ23875FMCZ User Guide Figure 21. EVAL-ADAQ23875FMCZ Board Schematic, Input Signal Path Rev. 0 | Page 18 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from...
- Page 19 EVAL-ADAQ23875FMCZ User Guide UG-1896 Figure 22. EVAL-ADAQ23875FMCZ Board Schematic, External Clock Rev. 0 | Page 19 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from...
- Page 20 UG-1896 EVAL-ADAQ23875FMCZ User Guide Figure 23. EVAL-ADAQ23875FMCZ Board Schematic, FMC Connector and External Supplies Rev. 0 | Page 20 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 21 EVAL-ADAQ23875FMCZ User Guide UG-1896 Figure 24. EVAL-ADAQ23875FMCZ Board Primary Silkscreen Figure 25. EVAL-ADAQ23875FMCZ Board Primary Layer, L1 Rev. 0 | Page 21 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 22 UG-1896 EVAL-ADAQ23875FMCZ User Guide Figure 26. EVAL-ADAQ23875FMCZ Board Ground Layer, L2 Figure 27. EVAL-ADAQ23875FMCZ Board Power Layer, L3 Rev. 0 | Page 22 of 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 23 User Guide UG-1896 Figure 28. EVAL-ADAQ23875FMCZ Board Bottom Layer, L4 Figure 29. EVAL-ADAQ23875FMCZ Board Secondary Silkscreen 100.50 Figure 30. EVAL-ADAQ23875FMCZ Board Drill Chart and Size 69 mm × 100.5 mm Rev. 0 | Page 23 of 26 Arrow.com. Arrow.com. Arrow.com.
-
Page 24: Ordering Information
UG-1896 EVAL-ADAQ23875FMCZ User Guide ORDERING INFORMATION Table 5. Bill of Materials Reference Designator Description Part No. Manufacturing +3P3V, AMPWR+, AMPWR−, Connector PCB solder terminal turrets 2501-2-00-80-00-00-07-0 Mill-max +4899, −4899 Connector PCB test point, red 5000 Keystone Electronics A2, A3 Unity-gain stable, ultra low distortion... - Page 25 EVAL-ADAQ23875FMCZ User Guide UG-1896 Reference Designator Description Part No. Manufacturing R36, R40, R41, R42, R61, R62, 0 Ω resistor precision thick film chip MC00625W040210R Multicomp R63,R64, R65, R66, R67, R68, R69, R70, R71, R72 137 kΩ resistor precision thick film chip...
- Page 26 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
