User Guide
EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

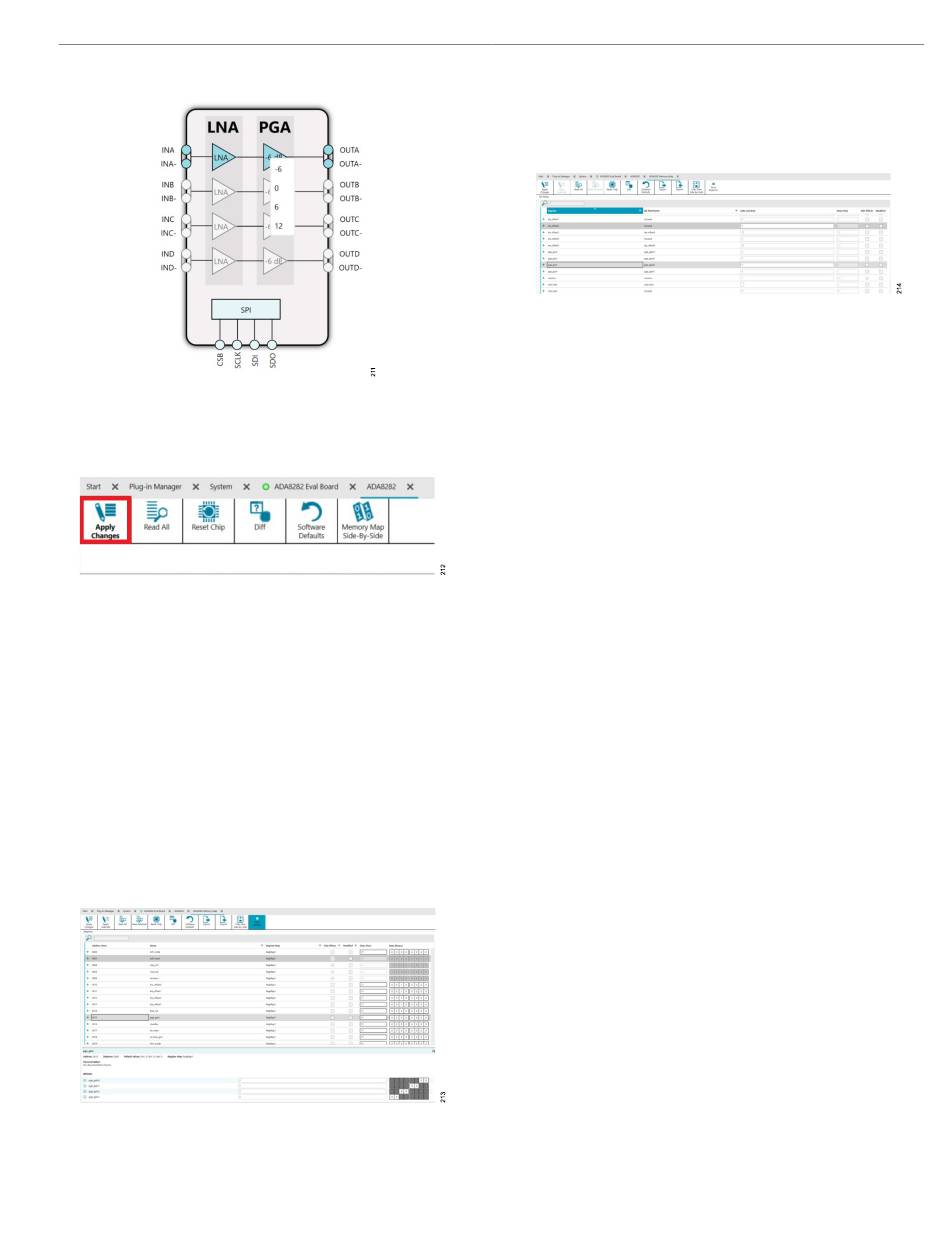

Figure 11. Manipulating Gain
To write the preferred settings to the registers of the device, click
Apply Changes on the toolbar (see
Figure 12. Chip View Toolbar

USING THE ACE MEMORY MAP

The memory map for the ADA8282
Proceed to Memory Map found on the lower right portion of the
chip view (see Figure 5). The memory map view can show either
the register fields or the bit fields of the device.
The register view allows the user to manipulate the bits one by one.
Each register may be expanded to show its corresponding bit fields
for easier configuration. To enable a channel, configure Register
0x17 (en_chan). To change the total gain of a channel, configure
Register 0x15 (pga_gain). For more details regarding the register
settings, refer to the ADA8282 data sheet.
Clicking a bit toggles its value (see
Figure 13. Register Field View
analog.com
Figure 12).
can be accessed by clicking the
Figure 13).
The bit field view allows the user to configure the ADA8282 by
modifying its control values. The hexadecimal data is displayed in
the Data (Hex) column.
Figure 14. Bit Field View
As with the chip view, the desired setting of the registers is only
written to the ADA8282 when Apply Changes is clicked.
For more detailed information on using the ACE software, see the
ACE Wiki.
EVAL-ADA8282
Rev. A | 6 of 15
