User Guide

EVALUATION BOARD SOFTWARE

SOFTWARE INSTALLATION PROCEDURES

Before using the EV-ADAQ7767-1FMC1Z, download and install
the Analysis | Control | Evaluation (ACE)
download the ADAQ7767-1 ACE plug-in from the ACE Evaluation
Board Plug-ins section of the ACE Software page or from the
EV-ADAQ7767-1FMC1Z product page.
The ACE Software is a desktop software application that allows
the evaluation and control of multiple evaluation systems across
the Analog Devices, Inc., product portfolio. The installation process
consists of the ACE Software and
Warning
To ensure that the evaluation system is correctly recognized when
it is connected to the PC, install the
driver before connecting the EV-ADAQ7767-1FMC1Z and the SDP-
H1 controller board to the USB port of the PC.
Installing the ACE Software
To install the ACE software, take the following steps:
1. Download the ACE software to a Windows
2. Double-click the ACEInstall.exe file to begin the installation. By
default, the software is saved at C:\Program Files (x86)\Ana-
log Devices\ACE.
3. A dialog box appears seeking permission to allow the program
to make changes to the PC. Click Yes to begin the installation
process.

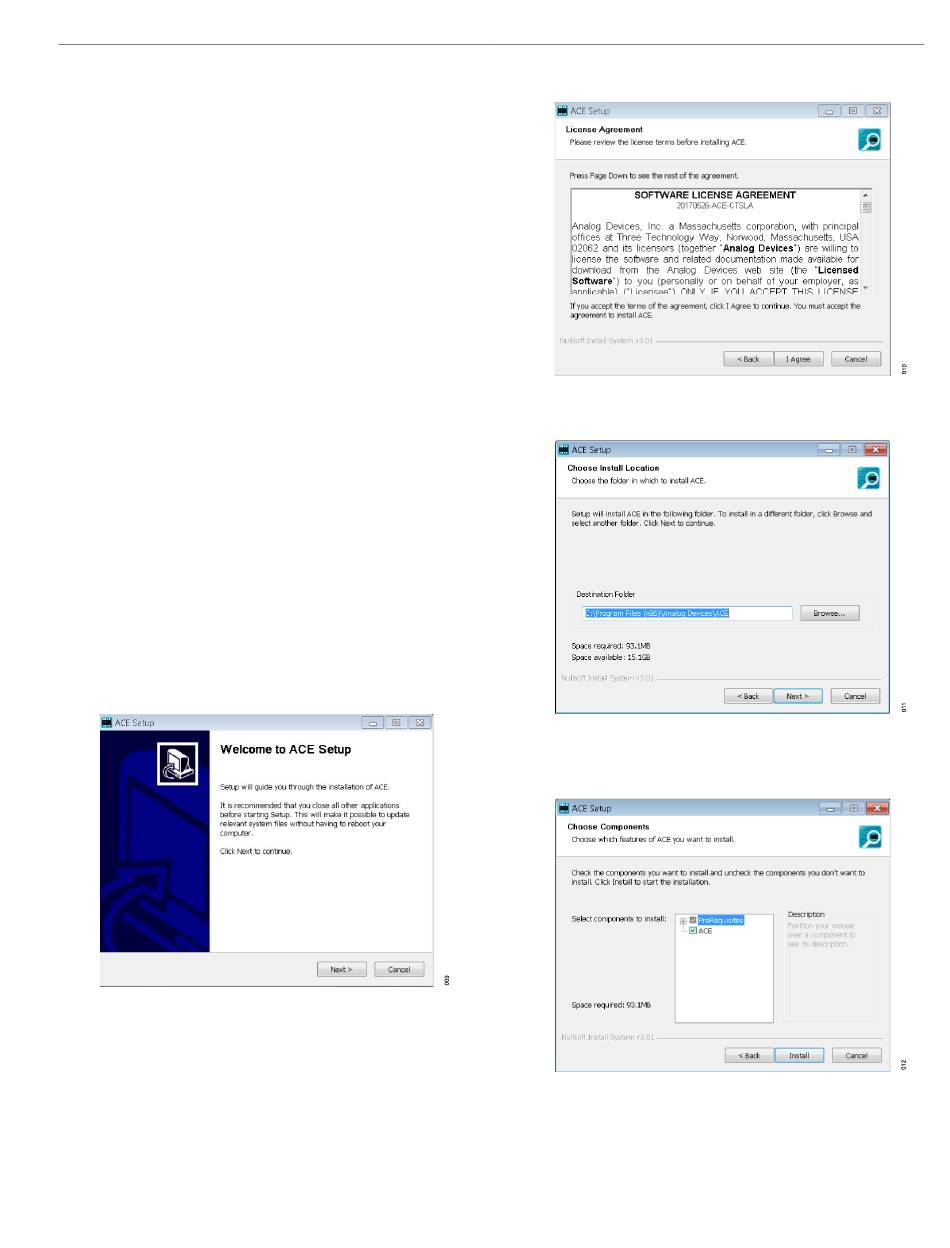

4. Click Next > to continue the installation, as shown in
Figure 9. Evaluation Software Install Confirmation
5. Read the software license agreement and click I Agree (see
Figure 10).
analog.com
Software. In addition,
SDP-H1 driver installations.
ACE Software and the SDP-H1
®
-based PC.
Figure 9.
EVAL-ADAQ7767-1
Figure 10. License Agreement
6. Choose an installation location and click Next (see
Figure 11. Choose Install Location
7. Select the Pre-Requisites checkbox to include the installation
of the SDP-H1 driver. Click Install (see
Figure 12. Choose Components
8. The Windows Security screen appears. Click Install (see
Figure 13). The installation is in progress. No action is required
(see Figure 14).
Figure 11).
Figure 12).
