Evaluating the ADATE320 1.25 GHz Dual Integrated DCL with PPMU, Level Setting DACs, and On-Chip Calibration
FEATURES
Full feature evaluation board for the
►
Supply voltages: +12 V and −8 V on-board voltage regulators
►
Signal input and output breakout through SMA connectors
►
Differential pairs provided with 50 Ω-controlled impedance traces
►
with equal lengths
LED indicators for read and write data
►
PC software for control through USB
►
EVALUATION KIT CONTENTS
EVAL-ADATE320EBZ evaluation board
►
EQUIPMENT NEEDED
®
PC running Windows
►
USB 2.0 port and USB 2.0 high speed A cable to B cable
►
Benchtop power supplies and connector cables
►
Data timing generator (DTG) or equivalent
►
Oscilloscope
►
DOCUMENTS NEEDED
ADATE320 data sheet
►
SOFTWARE NEEDED
ADATE320 Evaluation Board Software
►
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Registers
ADATE320
User Guide | EVAL-ADATE320
EVALUATION BOARD PHOTOGRAPH

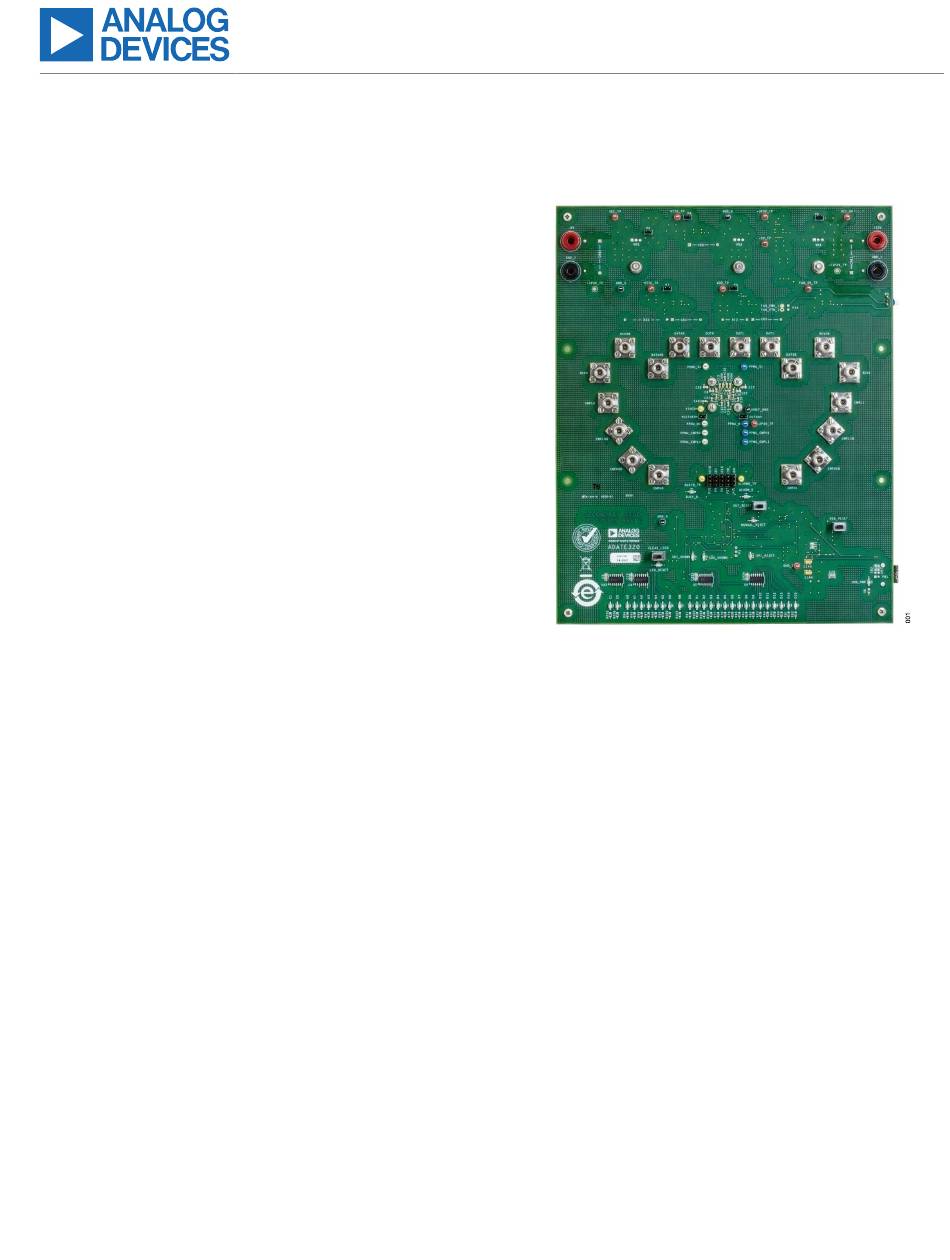

Figure 1. EVAL-ADATE320EBZ Evaluation Board
GENERAL DESCRIPTION
The EVAL-ADATE320EBZ is a full-featured evaluation board de-
signed to allow the user to simply evaluate all features of the
ADATE320 dual-integrated driver, comparator, and active load
(DCL) with a per pin parametric measurement unit (PPMU). The
EVAL-ADATE320EBZ features breakout connections through the
Subminiature Version A (SMA) terminals for all of the signal inputs
and outputs. The differential pairs are provided with 50 Ω-controlled
impedance traces with equal lengths.
The EVAL-ADATE320EBZ only takes in +12 V and −8 V supplies,
and the on-board regulators provide the required device supplies.
The EVAL-ADATE320EBZ can be controlled through the on-board
connectors or through the USB port of a Windows-based PC using
the ADATE320 Evaluation Board Software, which is available for
download on the EVAL-ADATE320EBZ product page. The default
setup is for control through the USB port. Communication with
the ADATE320 Evaluation Software is through the USB, and the
light emitting diode (LED) indicators on the EVAL-ADATE320EBZ
provide displays for the read and write data.
The ADATE320 data sheet provides full details on the ADATE320,
as well as the information on each of the registers within
the ADATE320, and must be consulted when using the EVAL-
ADATE320EBZ.
UG-2115
Rev. 0 | 1 of 19
Advertisement
Related Manuals for Analog Devices EVAL-ADATE320EBZ
Summary of Contents for Analog Devices EVAL-ADATE320EBZ
- Page 1 The differential pairs are provided with 50 Ω-controlled impedance traces with equal lengths. The EVAL-ADATE320EBZ only takes in +12 V and −8 V supplies, and the on-board regulators provide the required device supplies. The EVAL-ADATE320EBZ can be controlled through the on-board...
- Page 2 User Guide EVAL-ADATE320 TABLE OF CONTENTS Features..............1 Using the EVAL-ADATE320EBZ......6 Evaluation Kit Contents......... 1 Evaluation Board Software........7 Equipment Needed..........1 Software Operation..........7 Documents Needed..........1 DAC Levels............7 Software Needed...........1 SETUP FILE............7 Evaluation Board Photograph........1 Single Read from Part and Single Write to General Description..........1...
- Page 3 ► Figure 5 shows an example of an error prompt with four b. Using a USB cable, connect the EVAL-ADATE320EBZ to asterisks. Follow all the recommendations within the prompt the PC. Most Windows PCs automatically install the USB window before attempting to start the software again.
- Page 4 User Guide EVAL-ADATE320 QUICK START GUIDE the software user interface (see Figure 6) and command prompt (see Figure 7) reflect the default values (see the ADATE320 data sheet for more information). If the user interface and the command prompt do not reflect the default values, perform the following steps: 1.
- Page 5 −8 V between −8 V DC and GND ► The default link options are listed in Table The GND input is provided on the EVAL-ADATE320EBZ. Each device supply is decoupled to GND with a 10 μF and 0.1 μF Table 1. Default Jumper Setup Jumper No.
- Page 6 ADATE320. Designed to be interactive, the The EVAL-ADATE320EBZ requires two voltage supplies (+12 V EVAL-ADATE320EBZ also features an LED array at the bottom and −8 V). The +12 V and −8 V supplies are enough to power the portion to help the user know that the correct data are being written entire board including the digital portion.
- Page 7 User Guide EVAL-ADATE320 EVALUATION BOARD SOFTWARE To write the current DAC and control registers values displayed in SOFTWARE OPERATION the GUI to the ADATE320, click the Write All Reg button. To start the ADATE320 Evaluation Board Software, follow these The user can read back the DAC and control registers from the steps: ADATE320 and display each reading to the main window, as well 1.
- Page 8 User Guide EVAL-ADATE320 EVALUATION BOARD SOFTWARE CONTROL REGISTERS It is difficult for the user to manually fill the single write panel to configure the settings of the ADATE320, thus the control registers panel was added to address this. The control registers panel allows the modification of the settings of the ADATE320 by letting the user know which register is being written to, and what specific setting is being changed (see...
- Page 9 User Guide EVAL-ADATE320 EVALUATION BOARD SCHEMATICS AND SILKSCREENS Figure 12. EVAL-ADATE320EBZ Schematic, Page 1 analog.com Rev. 0 | 9 of 19...
- Page 10 User Guide EVAL-ADATE320 EVALUATION BOARD SCHEMATICS AND SILKSCREENS Figure 13. EVAL-ADATE320EBZ Schematic, Page 2 analog.com Rev. 0 | 10 of 19...
- Page 11 User Guide EVAL-ADATE320 EVALUATION BOARD SCHEMATICS AND SILKSCREENS Figure 14. EVAL-ADATE320EBZ Schematic, Page 3 analog.com Rev. 0 | 11 of 19...
- Page 12 User Guide EVAL-ADATE320 EVALUATION BOARD SCHEMATICS AND SILKSCREENS Figure 15. EVAL-ADATE320EBZ Schematic, Page 4 analog.com Rev. 0 | 12 of 19...
- Page 13 User Guide EVAL-ADATE320 EVALUATION BOARD SCHEMATICS AND SILKSCREENS Figure 16. EVAL-ADATE320EBZ Schematic, Page 5 analog.com Rev. 0 | 13 of 19...
- Page 14 User Guide EVAL-ADATE320 EVALUATION BOARD SCHEMATICS AND SILKSCREENS Figure 17. EVAL-ADATE320EBZ Schematic, Page 6 Figure 18. EVAL-ADATE320EBZ Silkscreen, Primary analog.com Rev. 0 | 14 of 19...
- Page 15 User Guide EVAL-ADATE320 EVALUATION BOARD SCHEMATICS AND SILKSCREENS Figure 19. EVAL-ADATE320EBZ Silkscreen, Secondary analog.com Rev. 0 | 15 of 19...
- Page 16 BILL OF MATERIALS Quantity Reference Designator Description Part No. Manufacturing Not applicable Printed circuit board (PCB) 08_035315d Analog Devices supplied +12V, −8V Connector PCB, banana jacks 108-0902-001 Cinch Connectivity Solutions uninsulated standard red +2P5V_TP, +3P3V_TP, +5V_TP, Connector PCB, red test points TP-104-01-02...
- Page 17 User Guide EVAL-ADATE320 ORDERING INFORMATION Quantity Reference Designator Description Part No. Manufacturing LED_RESET, MANUAL_RESET, LED UNI-COLOR GREEN, 570NM CMD28-21VGC/TR8 Visual Communications Company SDI_SHOWN, SPI_RESET, USB_PWR P1, P2, P8, P9, P10, P11 Connector PCB, Berg, headers, straight, TSW-103-08-G-S Samtec male, three position Connector PCB, receptacle, side entry USB-B-S-F-B-TH-R Tyco Electronics Connectivity...
- Page 18 12 kΩ resistor, SMD, 0.1%, 1/8 W, 0805, ERA-6AEB123V Panasonic AEC-Q200, high reliability U1, U8, VR1, VR6, VR8 IC, 1 A, low dropout, complementary ADP1708ARDZ-R7 Analog Devices metal–oxide semiconductor (CMOS) linear regulator IC, TTL dual, one shot SN74LV123AD Texas Instruments IC, CMOS, 2K, 16-bit microwire-...
- Page 19 Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
