FEATURES
Ready SPI interface for setup and control
►
Easy connection to test equipment
►
EVALUATION KIT CONTENTS
ADA8282CP-EBZ evaluation board
►
6 V, 2 A switching power source
►
EQUIPMENT NEEDED
®
PC running Windows
►
USB 2.0 port
►
SDP-B
►
SOFTWARE NEEDED
Analysis control evaluation (ACE) software
►

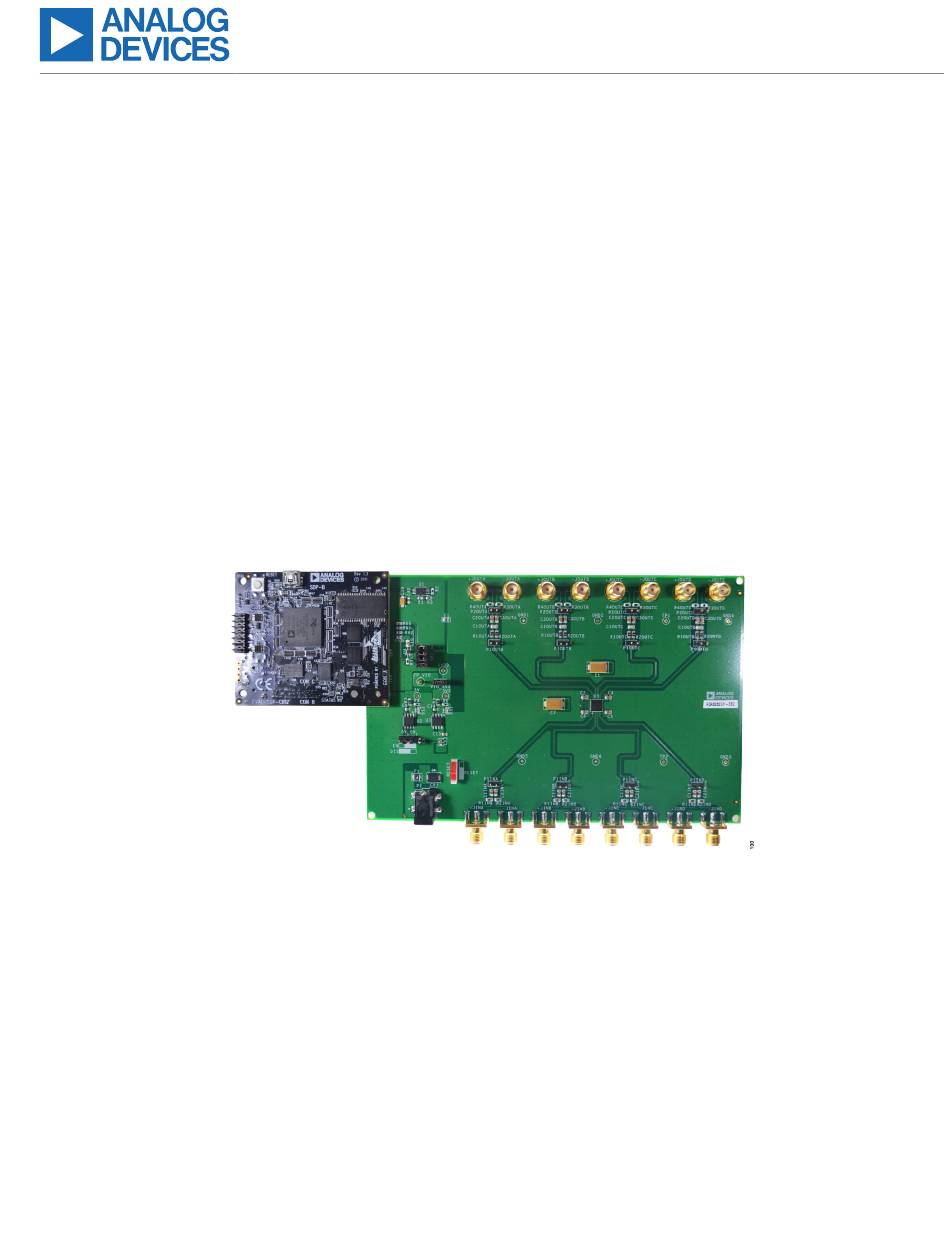

DIGITAL PICTURE OF THE BOARD
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Evaluating the ADA8282 Radar Receive Path AFE
Figure 1.
User Guide | EVAL-ADA8282
GENERAL DESCRIPTION
The ADA8282CP-EBZ is designed to aid in the evaluation of the
ADA8282
radar receive path analog front-end (AFE). The board
connects to the system demonstration platform (SDP) for easy
configuration of registers through a serial peripheral interface (SPI)
using the ACE evaluation software. The board provides headers to
allow configuration using other platforms. It also includes on-board
options to provide manual reset capability to the part.
This user guide provides quick start instructions for working with the
board.
Full specifications for the ADA8282 are available in the product
data sheet, which should be consulted in conjunction with this user
guide when using the evaluation board.
UG-846
Rev. A | 1 of 15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices EVAL-ADA8282
Summary of Contents for Analog Devices EVAL-ADA8282
-
Page 1: Features
User Guide | EVAL-ADA8282 UG-846 Evaluating the ADA8282 Radar Receive Path AFE FEATURES GENERAL DESCRIPTION Ready SPI interface for setup and control The ADA8282CP-EBZ is designed to aid in the evaluation of the ► ADA8282 radar receive path analog front-end (AFE). The board Easy connection to test equipment ►... -
Page 2: Table Of Contents
User Guide EVAL-ADA8282 TABLE OF CONTENTS Features..............1 Evaluation Board Software Quick Start Evaluation Kit Contents......... 1 Procedures............4 Equipment Needed..........1 Evaluation Board Software.........4 Software Needed...........1 Quick Start Procedures........4 General Description..........1 Configuring the ADA8282 Through ACE....5 Digital Picture of the Board........1 Using the Register Debugger...... -
Page 3: Evaluation Board Hardware
User Guide EVAL-ADA8282 EVALUATION BOARD HARDWARE POWER SUPPLY ANALOG OUTPUTS The ADA8282CP-EBZ comes with a wall-mountable switching pow- Each output is configured with SMA ports, +JOUTx and −JOUTx er supply that provides a 6 V, 2 A maximum output. The supply may... -
Page 4: Procedures
User Guide EVAL-ADA8282 EVALUATION BOARD SOFTWARE QUICK START PROCEDURES This section provides quick start procedures and software informa- tion for using the ADA8282CP-EBZ board. EVALUATION BOARD SOFTWARE To use the board with the SDP-B, make sure that the ACE software is available on your computer. -
Page 5: Configuring The Ada8282 Through Ace
User Guide EVAL-ADA8282 EVALUATION BOARD SOFTWARE QUICK START PROCEDURES 2. Click Read (see Figure CONFIGURING THE ADA8282 THROUGH ACE software provides several views or interfaces for configur- ing the ADA8282 via the SDP-B. Raw SPI writes and reads may be done through the register debugger. -
Page 6: Using The Ace Memory Map
User Guide EVAL-ADA8282 EVALUATION BOARD SOFTWARE QUICK START PROCEDURES The bit field view allows the user to configure the ADA8282 by modifying its control values. The hexadecimal data is displayed in the Data (Hex) column. Figure 14. Bit Field View As with the chip view, the desired setting of the registers is only written to the ADA8282 when Apply Changes is clicked. -
Page 7: Ada8282 Register Summary
User Guide EVAL-ADA8282 EVALUATION BOARD SOFTWARE QUICK START PROCEDURES ADA8282 REGISTER SUMMARY The register settings for the ADA8282 are given in the register section of the ADA8282 data sheet. An abbreviated register summary is shown Table Table 2. ADA8282 Register Summary... -
Page 8: Evaluation Board Schematics And Artwork
User Guide EVAL-ADA8282 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 15. Input Schematic analog.com Rev. A | 8 of 15... - Page 9 User Guide EVAL-ADA8282 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 16. Output Schematic analog.com Rev. A | 9 of 15...
- Page 10 User Guide EVAL-ADA8282 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 17. DUT Schematic analog.com Rev. A | 10 of 15...
- Page 11 User Guide EVAL-ADA8282 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 18. Power Section Schematic analog.com Rev. A | 11 of 15...
- Page 12 User Guide EVAL-ADA8282 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 19. SDP Schematic Figure 20. Evaluation Board Layout, Layer 1 analog.com Rev. A | 12 of 15...
- Page 13 User Guide EVAL-ADA8282 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 21. Evaluation Board Layout, Layer 2 Figure 22. Evaluation Board Layout, Layer 3 Figure 23. Evaluation Board Layout, Layer 4 analog.com Rev. A | 13 of 15...
-
Page 14: Ordering Information
Reference Designator Description Manufacturer Part Number IC 32 kB serial EEPROM Microchip Technology 24LC32A-I/ST 500 mA, low noise regulator Analog Devices, Inc. ADP7105ARDZ-5.0 Low noise linear regulator Analog Devices, Inc. ADP7118ARDZ-3.3 IC-TTL bus buffer NXP Semiconductors 74HC1G125GW 4-channel LNA and PGA Analog Devices, Inc. -
Page 15: Notes
Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
