iC7 Series Cooling Modules
Operating Guide
11.1.7 Dimensions of the Optional DIN Flanges
+SGFD
88.4
(3.48)
88.4
(3.48)
Ø54.3
(2.14)
Ø102
(4.01)
Ø165
(6.49)
+SIFD
161
(6.34)
261.5
(10.29)

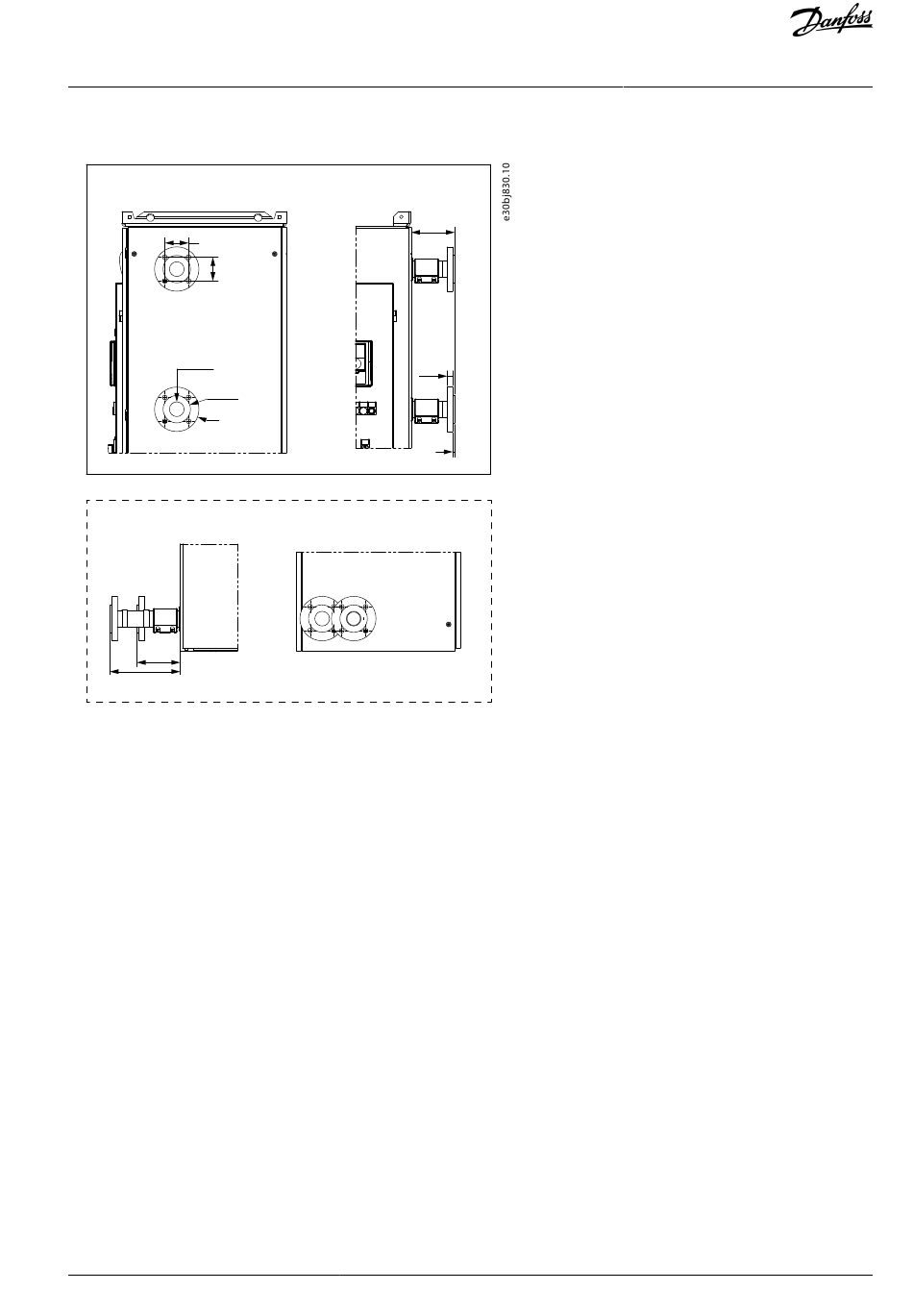

Illustration 37: Dimensions of the Optional DIN Flanges, +SGFD and +SIFD, in mm (in)
