iC7 Series Cooling Modules
Operating Guide

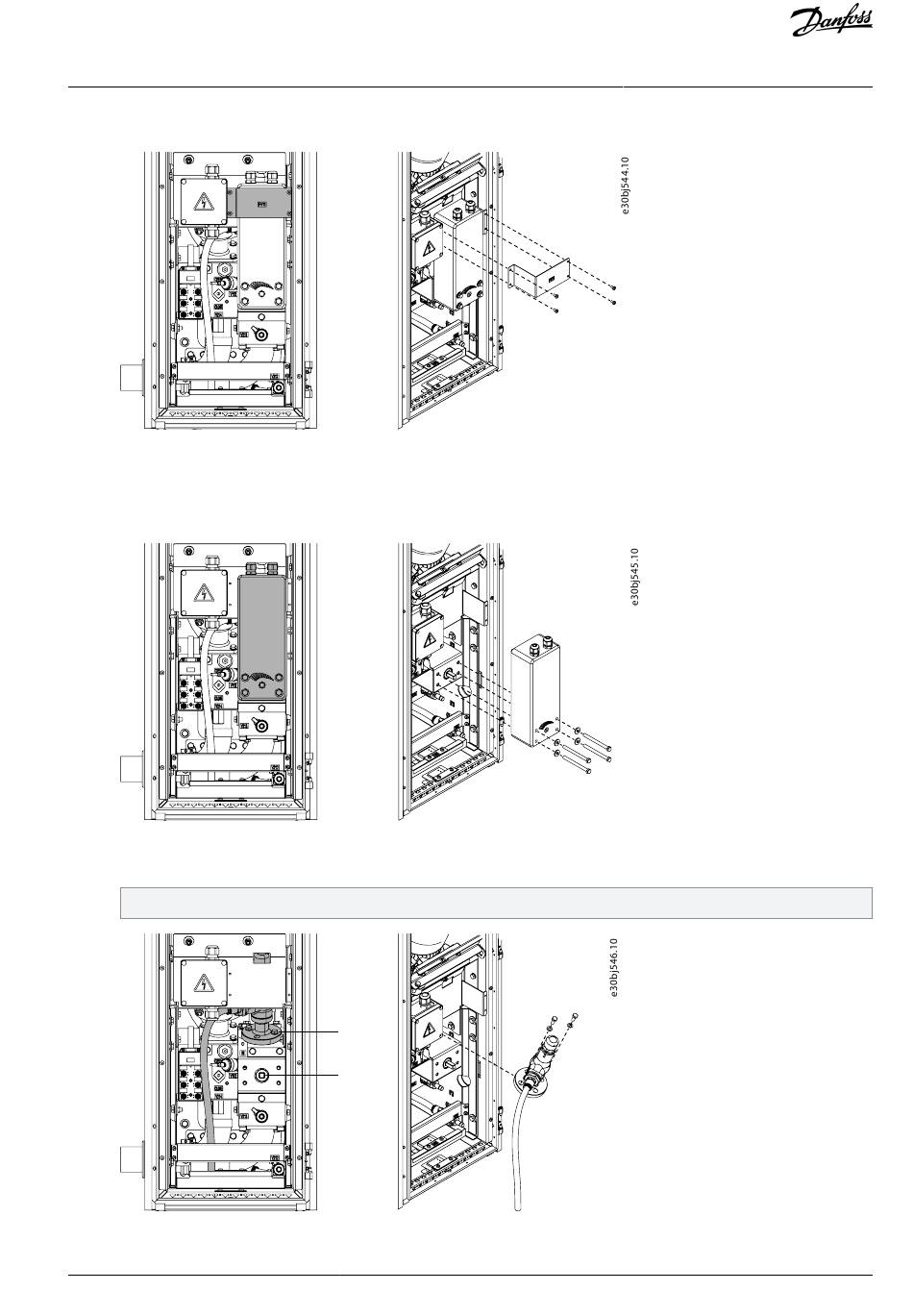

1. Remove the actuator mounting plate, marked with the text "FV11". The plate is mounted with 4 size M5x10 TX screws.
Illustration 20: Removing the Mounting Plate of the Valve Actuator
2. Before removing the valve actuator, adjust the valve to one of the extreme positions, 0º (bypass), or 90º (via HEX).
3. Release the valve actuator by removing the 4 size M8x95 hex screws. Do not remove the wires from the actuator. Support
the actuator near by, so that the wires are not damaged.
Illustration 21: Removing the Valve Actuator
4. Release the relief valve by removing the 2 size M8x20 hex screws. Jig the relief valve sideways to loosen and remove it.
Notice that the actuator shaft is now loose.
Illustration 22: Removing the Relief Valve
Danfoss A/S © 2022.02
1
2
Cooling Installation
AQ339830072437en-000202 / 172F0589 | 35
