iC7 Series Cooling Modules
Operating Guide
V216
V219
LLS11
V121
PT12

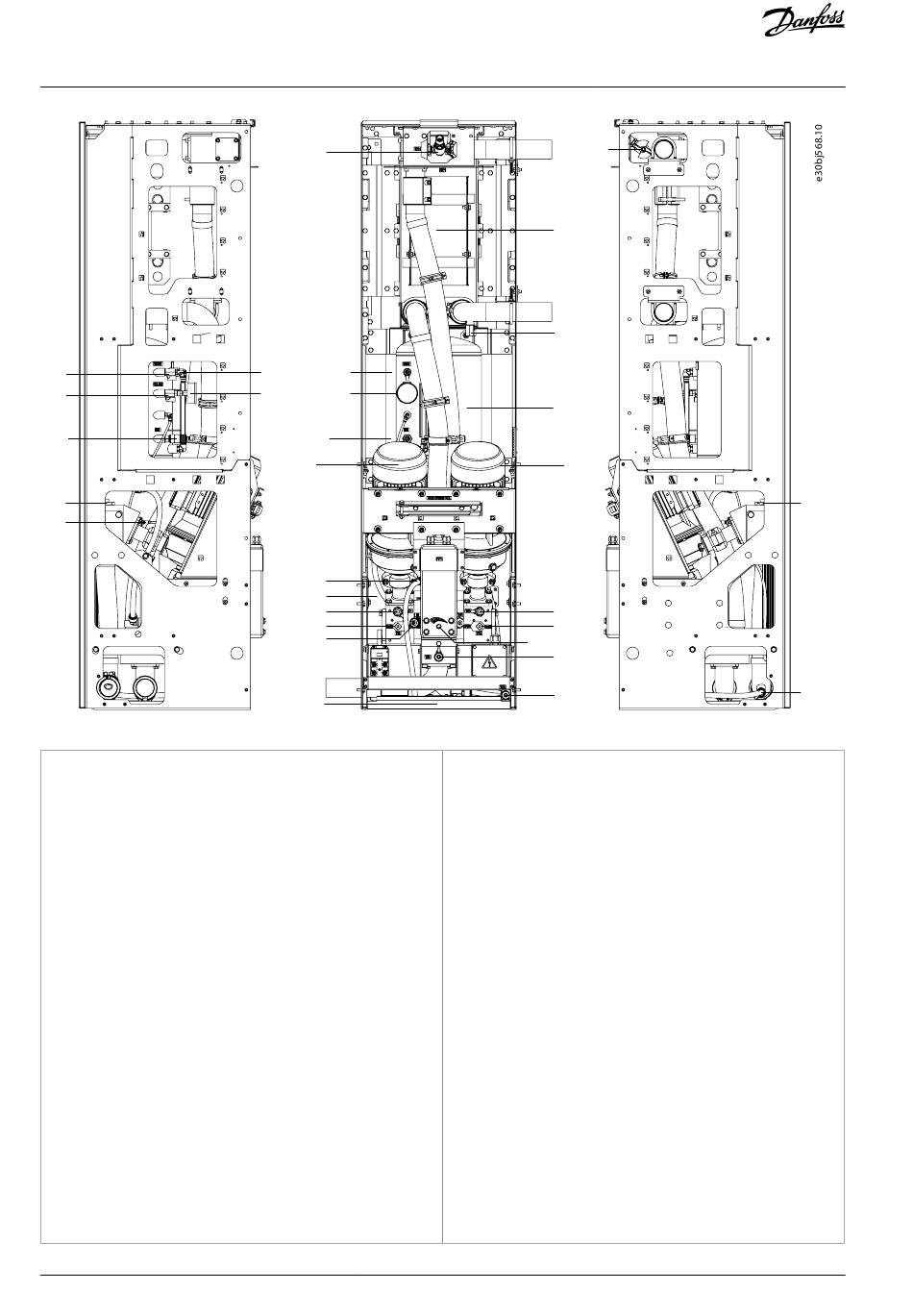

Illustration 19: Location of Valves and Instrumentation in Dual-pump 76 kW and 152 kW Cooling Module
EV11 Expansion tank
FV11 3-way valve actuator
HX11 Heat exchanger
LLS11 Liquid level sensor
LS11 Leakage sensor
P1 Pump 1
P2 Pump 2
PG11 Pump inlet pressure gauge
PT11 Pump inlet pressure transmitter
PT12 Pump outlet pressure transmitter
TE11 Coolant to drives temperature sensor
V111 3-way valve
V112 Pump 1 shut-off valve
V113 Pump 2 shut-off valve
V121 Pump 1 shut-off valve
32 | Danfoss A/S © 2022.02
V218
V217 V216, V217
PG11 V219, PG11
LLS11
P1
V231
TE11
V214
V112
PT11
LS11
V218
HX11
V241
EV11
P2
V215
V113
FV11, V111
V213
V212
V122 Pump 2 shut-off valve
V123 Check valve
V211 Shut-off valve
V212 Filling/Draining valve
V213 Filling/Draining valve
V214 Draining valve
V215 Draining valve
V216 Pneumatic connection shut-off valve
V217 Valve for pneumatic connection
V218 De-airing valve
V219 Valve for pressure gauge
V221 Expansion tank shut-off valve
V222 Expansion tank shut-off valve
V231 Relief valve
V241 Draining valve
