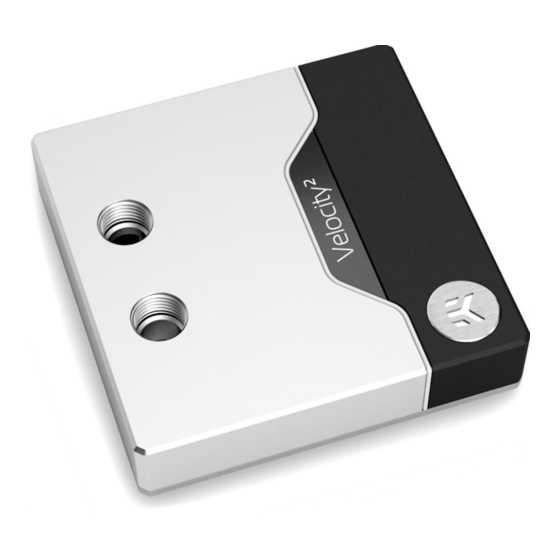

EK-Quantum
Velocity² D-RGB AM5
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Velocity2 D-RGB AM5 and is the answer not in the manual?

Questions and answers

Related Manuals for EK-Quantum Velocity2 D-RGB AM5

Summary of Contents for EK-Quantum Velocity2 D-RGB AM5

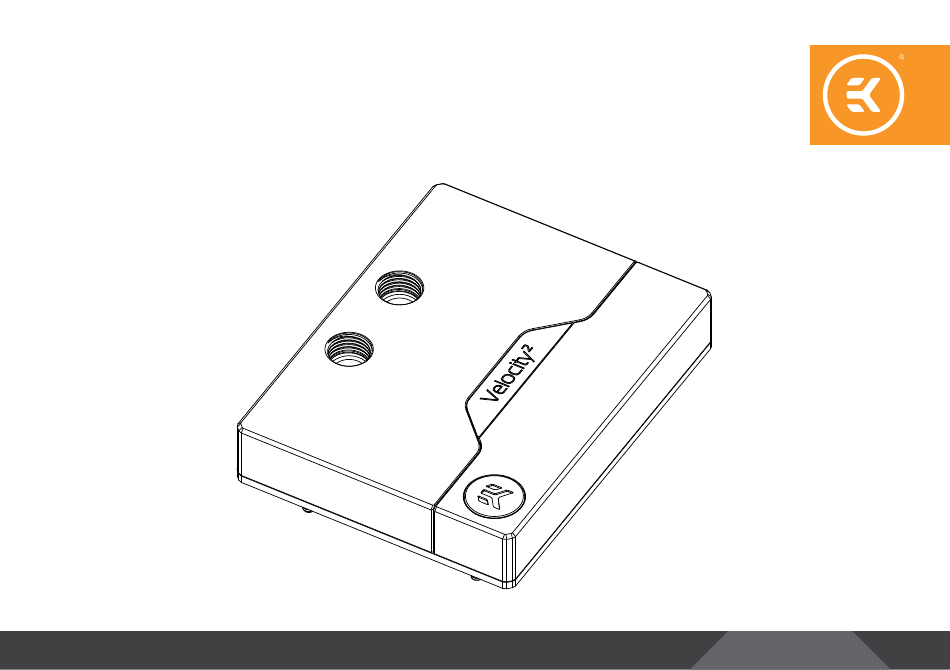

  • Page 1 EK-Quantum Velocity² D-RGB AM5 USER GUIDE...
  • Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI NICKEL ACETAL FULL NICKEL SATIN TITANIUM NICKEL GOLD PREPARING THE MOTHERBOARD INSTALLING THE WATER BLOCK CONNECTING THE D-RGB LED STRIP TESTING THE LOOP WARRANTY SUPPORT AND SERVICE...

  • Page 4: General Information On Water Block Compatibility

    - AMD® socket AM5 BOX CONTENTS Allen Key 2 mm (1 pc) Allen Key 2.5 mm (1 pc) Tx7 L-Shaped wrench (1 pc) EK-Quantum Velocity² D-RGB AM5 Thermal grease (1 pc) Velocity Mounting Screw AM5 (Ni) (1 pc) - 4 -...

  • Page 5: Water Block Dimensions

    WATER BLOCK DIMENSIONS 89 mm 12.5 mm 20.5 mm 25.5 mm 34 mm - 5 -...

  • Page 6: Technical Specifications And Water Block Parts

    TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI Technical Specification: - Dimensions: (L x H x W) - 89 x 113.5 x 34 mm - D-RGB cable length: 50 cm - D-RGB LED count: 16 - D-RGB connector: 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground) Position EAN Description...

  • Page 7: Nickel Acetal

    NICKEL ACETAL Technical Specification: - Dimensions: (L x H x W) - 89 x 113.5 x 34 mm - D-RGB cable length: 50 cm - D-RGB LED count: 16 - D-RGB connector: 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground) Position EAN Description...

  • Page 8: Full Nickel

    FULL NICKEL Technical Specification: - Dimensions: (L x H x W) - 89 x 113.5 x 34 mm - D-RGB cable length: 50 cm - D-RGB LED count: 16 - D-RGB connector: 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground) Position EAN Description...

  • Page 9: Satin Titanium

    SATIN TITANIUM Technical Specification: - Dimensions: (L x H x W) - 89 x 113.5 x 34 mm - D-RGB cable length: 50 cm - D-RGB LED count: 16 - D-RGB connector: 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground) Position EAN Description...

  • Page 10: Nickel Gold

    NICKEL GOLD Technical Specification: - Dimensions: (L x H x W) - 89 x 113.5 x 34 mm - D-RGB cable length: 50 cm - D-RGB LED count: 16 - D-RGB connector: 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground) Position EAN Description...

  • Page 11: Preparing The Motherboard

    PREPARING THE MOTHERBOARD STEP 1 If already installed, please remove the motherboard from your UNC 6-32 SCREW computer and place it on an even surface. STEP 2 HOLD-DOWN Using a Philips-head screwdriver remove the four UNC 6-32 screws CLAMPS securing the original plastic hold-down clamps around the socket as shown in the illustration.

  • Page 12: Installing The Water Block

    STEP 4 Applying thermal compound: Apply the enclosed thermal grease (thermal compound) on the CPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even in thickness over the entire surface of the IHS. The excessive or uneven application of thermal grease may lead to poor performance! For this step, you will need:...
  • Page 13 STEP 2 Position the CPU Water Block onto the Motherboard. Make sure to align the holes (as shown in the picture). Before placing the water block, it is mandatory to remove the protective foil from the backside. Make sure to double-check the layer of the Thermal Grease before placing the water block onto the motherboard.

  • Page 14: Connecting The D-Rgb Led Strip

    STEP 4 With EK-Velocity² series water blocks, it is mandatory to use the bottom port as the INLET. Mixing the ports may result in poor thermal performance of the water block. OUTLET Tighten the fittings in a clockwise direction until the gasket underneath is compressed.

  • Page 15: Testing The Loop

    TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components.

  • Page 16: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
