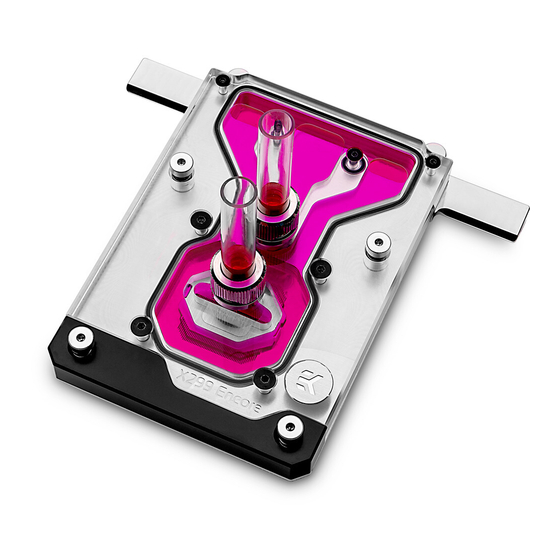

- Page 1 EK-Quantum Momentum ROG Rampage VI Encore MONOBLOCK USER GUIDE...
- Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENT PREPARING YOUR MOTHERBOARD REMOVING BACKPLATE AND STOCK COOLER APPLYING THERMAL COMPOUND CUTTING AND PLACING THERMAL PADS ON THE MOTHERBOARD PLACING THE BLOCK ON TO MOTHERBOARD ATTACHING BLOCK ON THE MOTHERBOARD PLACING THE REPLACEMENT HEATSINK ON TO MOTHERBOARD CONNECTING THE D-RGB LED STRIP INSTALLATION OF FITTINGS AND TUBING REQUIRED TOOLS... -
Page 4: Preparing Your Motherboard
PREPARING YOUR MOTHERBOARD REMOVING BACKPLATE AND STOCK COOLER Mosfet screws Remove all encircled screws. There are seven (7) screws on the back of the motherboard that needs to be removed in order to remove the factory installed mosfet heat pipe cooling solution. Do not forget to unplug the fan connector. -
Page 5: Cutting And Placing Thermal Pads On The Motherboard
CUTTING AND PLACING THERMAL PADS ON THE MOTHERBOARD Thermal Pad F – 1.0 mm Your block comes with thermal pads which needs to be trimmed in order to fit the voltage regulation area (MOSFET) on the motherboard’s circuit board. 1. Thermal PAD F 1,0mm - (120x16mm) EAN: 3830046996732 Thermal Pad F –... -
Page 6: Placing The Block On To Motherboard
PLACING THE BLOCK ON TO MOTHERBOARD Place EK-Quantum Momentum ROG Rampage VI Encore series water block to the motherboard or vice versa (as shown on the photo). Make sure that mounting holes are aligned. ATTACHING BLOCK ON THE MOTHERBOARD STEP 1 Prior to fastening the screws please make sure the mounting holes on the motherboard’s circuit board are aligned with the water block. -
Page 7: Placing The Replacement Heatsink On To Motherboard
Replacement Heatsink From the original heatsink take off four (4) standoffs using EK-loop wrench and attach them on to replacement heatsink which comes with the EK-Quantum Momentum ROG Rampage VI Encore monoblock. STEP 1 STEP 2 Before placing the replacement heatsink on to motherboard, attach the I/O cover screen on to the replacement heatsink and secure it with five (5) factory provided screws. - Page 8 STEP 3 Carefully place the replacement heatsink on to motherboard (as shown on the photo). Make sure that Thermal Pad is placed correctly. STEP 3 STEP 4 Use a Phillips head screwdriver with the factory I/O cover screws. Factory I/O Cover Screws Also pay attention not to use too much force by pressing the replacement heatsink down onto the motherboard.
-
Page 9: Connecting The D-Rgb Led Strip
INSTALLATION OF FITTINGS AND TUBING Tubing STEP 1 EK recommends the use of EK-Fittings. When using fittings other than EK series please use hose clamps or appropriate substitute to secure the tubing to the barb. The use of biocide containing and EK-Fitting corrosion inhibiting coolant is always recommended for any liquid cooling system. -
Page 10: Required Tools
REQUIRED TOOLS Phillips-head screwdriver Scissors Allen Key - 10 -... -
Page 11: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
