Access to programming

In order to access the programming session of the fire detection system,
it is necessary to work through the following procedure:

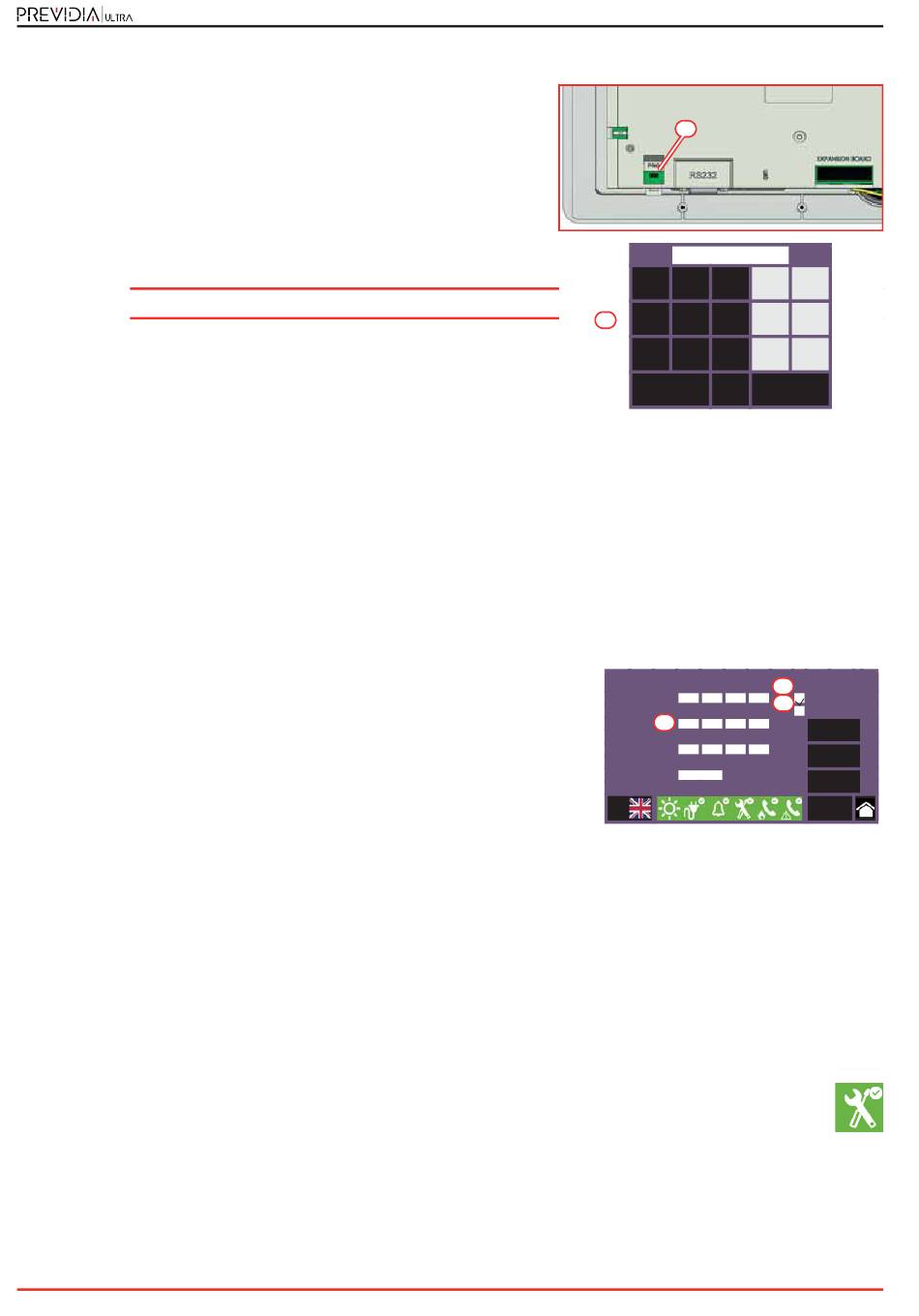

1. Insert the programming jumper on the back of the FPMCPU module
(see opposite, [A]).
2. Press the Programming button on the stand-by screen (see above - [A]).
3. A keypad will appear (see opposite, [B]) for the entry of a code with
installation privileges.
Note:
The default access code to level 3 is "00004".
4. You access the programming menu, where the following items are
available:
- Configuration
- Network
- Factory data
2.2

Setting the IP network address

If an Ethernet network connection is used, it will be necessary to set up the IP address and parameters of the network.
This operation must be done for anyone of the following devices:
• the Previdia Ultra control panel, via the main FPMCPU module
• the backup FPMCPU module, via the FPMCPU module itself
• the FPMCPU repeater module, when connected to an Ethernet network, via the FPMCPU module itself
In order to set the network parameters, it is first necessary to access the
programming phase of the control panel (paragraph 2.1) and then tap on the
Network button which appears on the screen.
The network parameters screen will be shown [A].
Beside these there is the Backup panel option [B]. If enabled, the FPMCPU
module you are using will be set as control panel backup CPU unit. In this
case, the network parameters must be the same as the parameters set for
the main FPMCPU module.
Once set, it will be necessary to tap on the Ok button and save the data.
If the module has been set as a backup CPU unit, the message "In backup" will appear on the display
In the same section you have the tools to register the control panel to the installer profile at the Inim Cloud service ([C]
refer to paragraph 4.8 Registration of the control panel to Inim Cloud).
2.3

Accessing the configuration menu

To access the configuration menu it is necessary to first access the programming phase of the control panel (paragraph
2.1) and then tap on the Configure button which appears on the screen.
Alternatively, it is possible to tap directly on the configuration status icon (see above, [C]).
Entry of a valid access code is necessary In both cases.
Once the configuration menu has been accessed, the control panel screen will provide a layout of the control panel and
its parts.
