3.1

Access to programming

In order to access the programming session of the voice emergency
system, it is necessary to work through the following procedure:

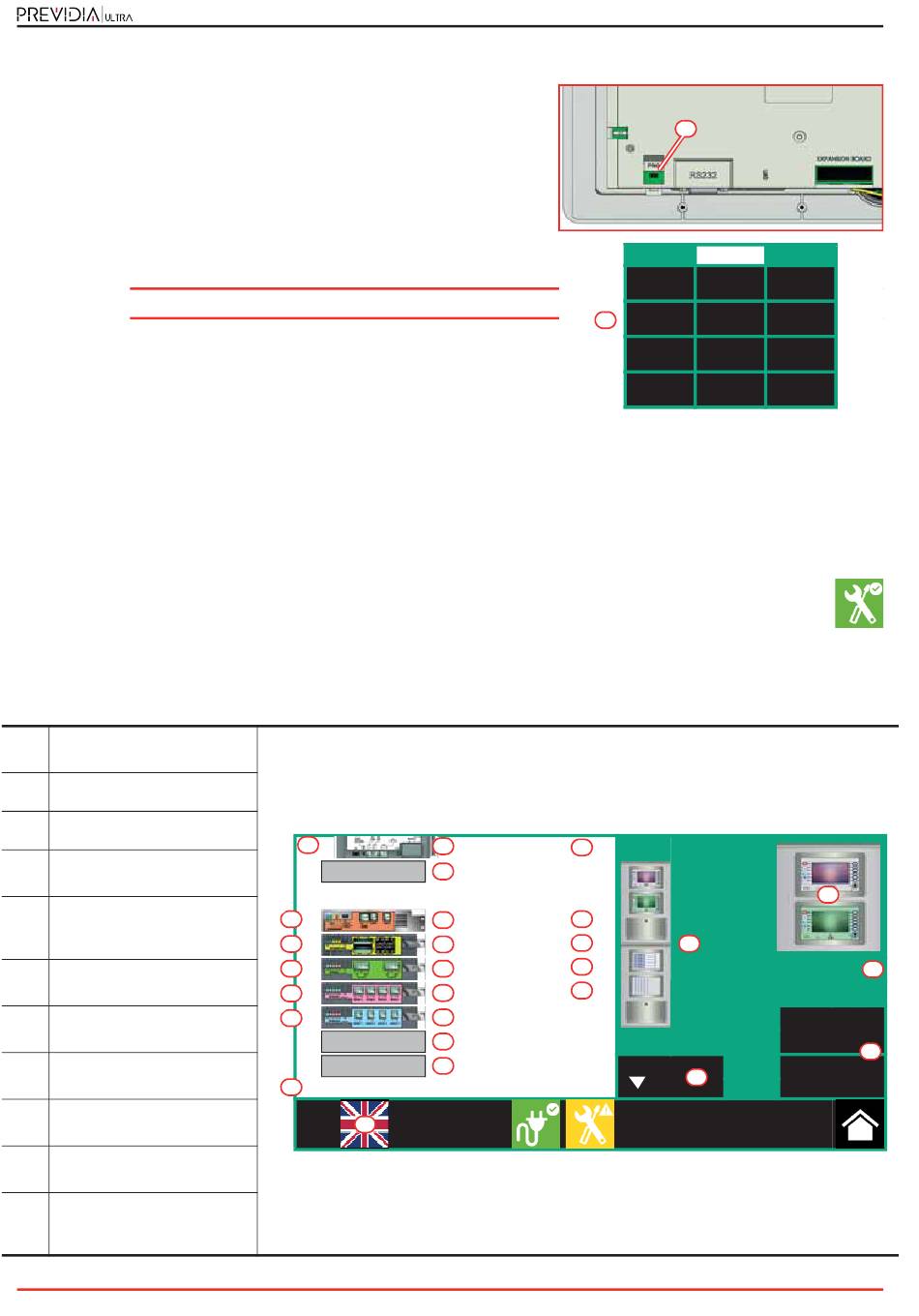

1. Insert the programming jumper on the back of the FPAMIAS module
(see opposite, [A]).
2. Press the Programming button on the stand-by screen (see above - [A]).
3. A keypad will appear (see opposite, [B]) for the entry of a code with
installation privileges.
Note:
The default access code to level 3 is "00004".
4. You access the programming menu, where the following items are
available:
- Configuration (paragraph 3.2)
- Modify (paragraph 3.7.1)
- Factory data (paragraph 4.5)
3.2

Accessing the configuration menu

To access the configuration menu it is necessary to first access the programming phase of the control panel (paragraph
3.1) and then tap on the Configure button which appears on the screen.
Alternatively, it is possible to tap directly on the configuration status icon (see above - [D]).
Entry of a valid access code is necessary In both cases.
Once the configuration menu has been accessed, the control panel screen will provide a layout of the control panel and its parts.
Internal layout of the
[A]
selected cabinet
[B] Internal module detected
[C]
Position empty
Address and firmware
[D]
revision of detected module
Modules assigned to the fire
[E]
detection and voice
emergency system
Modules not assigned to the
[F]
voice emergency system
Map of the entire control
[G]
panel
Arrow button to navigate
[H]
among the cabinets
Layout of the selected
[I]
cabinet
Button to change the
[J]
network address
Buttons to carry out setting
[K]
changes or to exit without
saving
16
A
B
N.01 FW:1.0.0.
C
E
B N.01 FW:1.0.0.
E B N.01 FW:1.0.0.
E B
N.04 FW:1.0.0.
*
B
F N.05 FW:1.0.0.
*
B
F
C
C
*
F
Touch to set address and acquire
C
L: 3
Fire detection and extinguishing system
A
00004
1 2
B
4 5
7 8
C 0
D
D
D G
D
Network Address: 2
D
H
01/01/2022
Configuration of the emergency voice system
3
6
9
OK
I
J
Set
K
Esc
18:23
