Configuration manual
4.4

Signal check and fault search

Once the configuration setup has been completed, the control panel will check the status of the devices and input/
output terminals.
Eventual faults on these elements will be shown on the screen. In this case, it is necessary to remove the causes of the
fault until you return to the stand-by screen that shows no fault messages (refer to the Previdia Ultra system installation
manual).
4.5

Factory data

The Factory data button from the programming menu (paragraph 2.3 -
[J], paragraph 3.2 - [K]) deletes all the configuration data and resets the
control panel to the factory default settings.

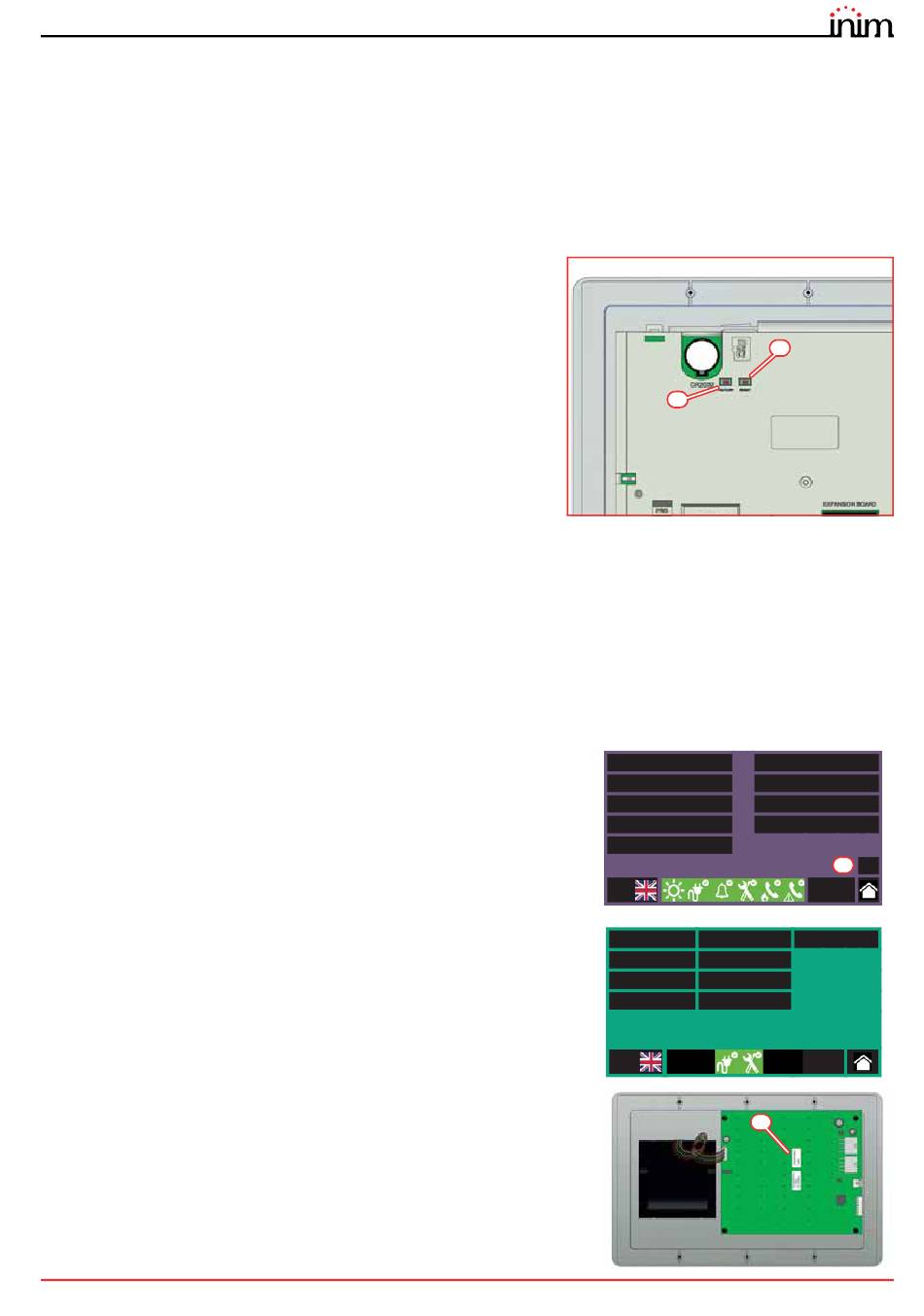

As an alternative to using the Factory data button, it is possible to reset
the factory default settings by means of the buttons on the back of the
front-plate module. Press and hold the "Factory data" button [A] and press
and release the "Reset" button [B].
Following confirmation of the request to reset to the factory data, the
selection of the control panel languages will be requested (a mandatory
main language and an optional secondary language).
A progress bar will confirm factory data resetting in course.
4.6

Setting the date and time

When setting this parameter, it is necessary to tap on the respective field in the bottom right-hand corner of the screen,
enter an access code with either supervisor or installer capabilities then, by means of the scroll keys, navigate through
the programming fields and set the desired date and time.
4.7

Firmware revision

The installer of Previdia Ultra system can see the firmware revision of each control panel module in order to facilitate any
upgrade or configuration procedure.
Such information can be achieved depending on the type of the module:
Front-plate module: by means of the System Status button on the display
in the stand-by condition, you can access a section where it is possible to
view the status of the various system elements.
In the lower left corner of this section [A] you can see:
• serial number of the front plate module in use
• counter of the number of alarms starting from system installation
• firmware version of the front-plate module (FW, both the main and the
emergency backup CPU.)
• minimum required revision of Previdia/STUDIO configuration software
(SW)
• site specific data release (Data), progressive number of system
configuration upgrades
FPMLED, FPMPRN, FPMEXT front-plate modules: the module firmware
revision is written on a label on the back of the module [B]; the label can be
seen by opening the cabinet door when the module is already installed.
Generic configuration of the control panel
B
A
Panel Dialler
Zones I/O Lines
Points Extinguish Board
Groups Cloud
Timer
SN:SNSNSNSN Alarm counter: ccc
FW001FPMCPU - FW:xxxxxxxxxxxxx - SW:yy.yy.yy - Date:zzz
L: 1
Panel Audio Zone
I/O Line Audio Input
Groups Speaker Line
Timer Fire Tel.
FW001FPMAMIAS - FW:xxxxxxxxxxxxx - SW:yy.yy.yy - FS: fs.fs.fs
SN:SNSNSNSN - Date:zzz - Alarm counter: ccc - MAC:a1-b2-c3-d4-e5
Panel: Ultra 1
L: 1
B
A
Esc
01/01/2022
18:23
IDANet Board
01/01/2022
18:23
