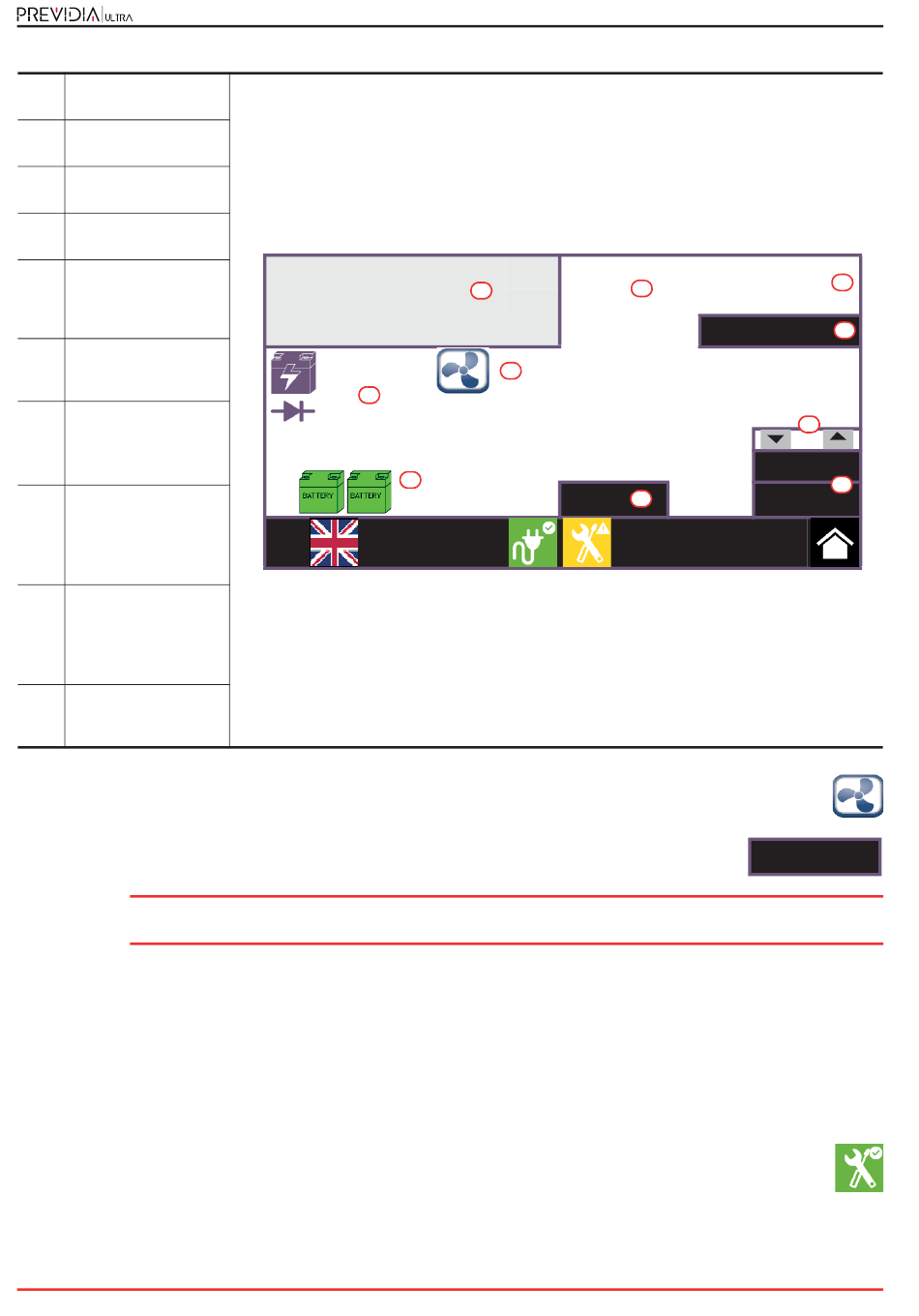

Information on the
[A]
module
Button for addressing
[B]
the module
Section containing a
[C]
list of current faults
Voltage and output
[D]
current of the module
Battery parameters
(internal resistance,
[E]
voltage, status and
current)
Internal temperature
[F]
and battery charge
voltages
Fan configuration
button
[G]
(IFAMPSU only and by
FPAMIAS only)
Buttons for selecting
the delay time (in
minutes) for network
[H]
delay signalling
(only from FPAMIAS)
Button for instant
battery test, normally
performed every 10
[I]
minutes
(only from FPAMIAS)
Buttons to carry out
[J]
setting changes or to
exit without saving
By means of the fan button it is possible to configure the activation and deactivation temperatures of
the fan.
By tapping on the Change Address button it is possible to change the address of the module on
the CAN BUS, which is shown in the section with the module information, together with the
serial number and firmware version.
Note:
Addresses which exceed the maximum number of modules supported by the control panel will not be
considered valid.
4.3

Acquiring the configuration

Once the previously described operations have been completed, it will be necessary to save the defined configuration to
the control panel memory. This operation can be done via the configuration screen, by means of the "Set" button
(paragraph 2.3 - [J], paragraph 3.2 - [K]).
A progress bar will confirm data saving in course.
Once this operation has been completed and valid addresses have been assigned to all the devices, the
configuration status icon will turn green. Any successive changes to the hardware configuration (for example,
the loss of a module or addition of a new module) will turn the icon yellow to signal that the control panel
configuration is different to the one saved to the memory.
