3. Enroll the loop devices, after the respective fault search (paragraph 3.4.2)
4. Set up the control panel parameters (Chapter 3, System Parameters)
5. Configure the connected devices and their groups (Chapter 4, Parameters of devices and their groupings)
6. Check eventual signalling and search for faults (paragraph 5.3)
7.
Set the date and time (paragraph 3.10)
Note:
Once the configuration operations have been completed correctly, the control panel will be ready to
operate.
The control panel is configured to consider each input point (detector, module, terminal) as a fire-alarm
point. Therefore, in the event of a fire alarm it will activate all the outputs available on its loops or
terminals.
At this point it is necessary to proceed with eventual changes to the configuration data for the
distribution of points in zones, edit descriptions of the various system elements, define specific
activation sequences, etc.
2.2
Access to programming

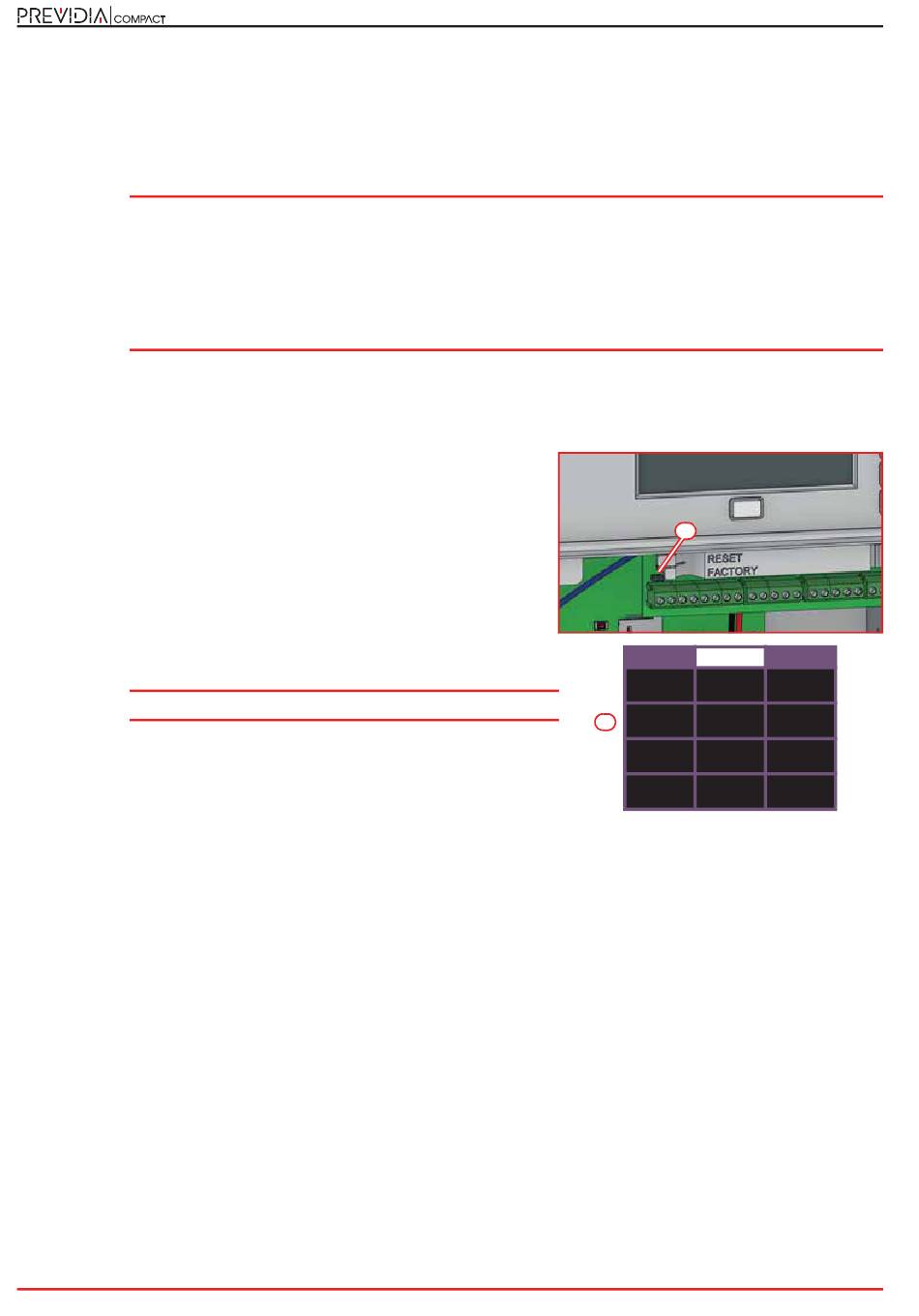

To access the programming phase of the Previdia control panel, it is
necessary to work through the following procedure:
1.
Insert the programming jumper (see opposite, [D]).
2. Press the Programming button on the stand-by screen (see above,
[A]).
3. A keypad will appear (see opposite, [E]) for the entry of a code with
installation privileges.
Note:
The default access code to level 3 is "00004".
4. The accessed programming menu will provide the following options:
- Configuration (refer to paragraph 2.3)
- Modify (refer to paragraph 2.4)
- Factory default settings (refer to paragraph 2.5)
2.3
Accessing the configuration menu
The configuration menu allows the programmer to put all the parts of the Previdia Compact System in the configuration
(control panel, connections and connected devices) after the initial installation phase.
To access the configuration menu it is necessary to first access the programming phase of the control panel (paragraph
2.2) and then tap on the Configuration button which appears on the screen. Once inside the Configuration menu, the
control panel screen will show an image of the control panel frontplate highlighting the access buttons to the
configuration sections.
8
Fire detection and extinguishant system
D
00004
1
2
3
E
4
5
6
7
8
9
C
0
OK
