ITALIANO - ENGLISH

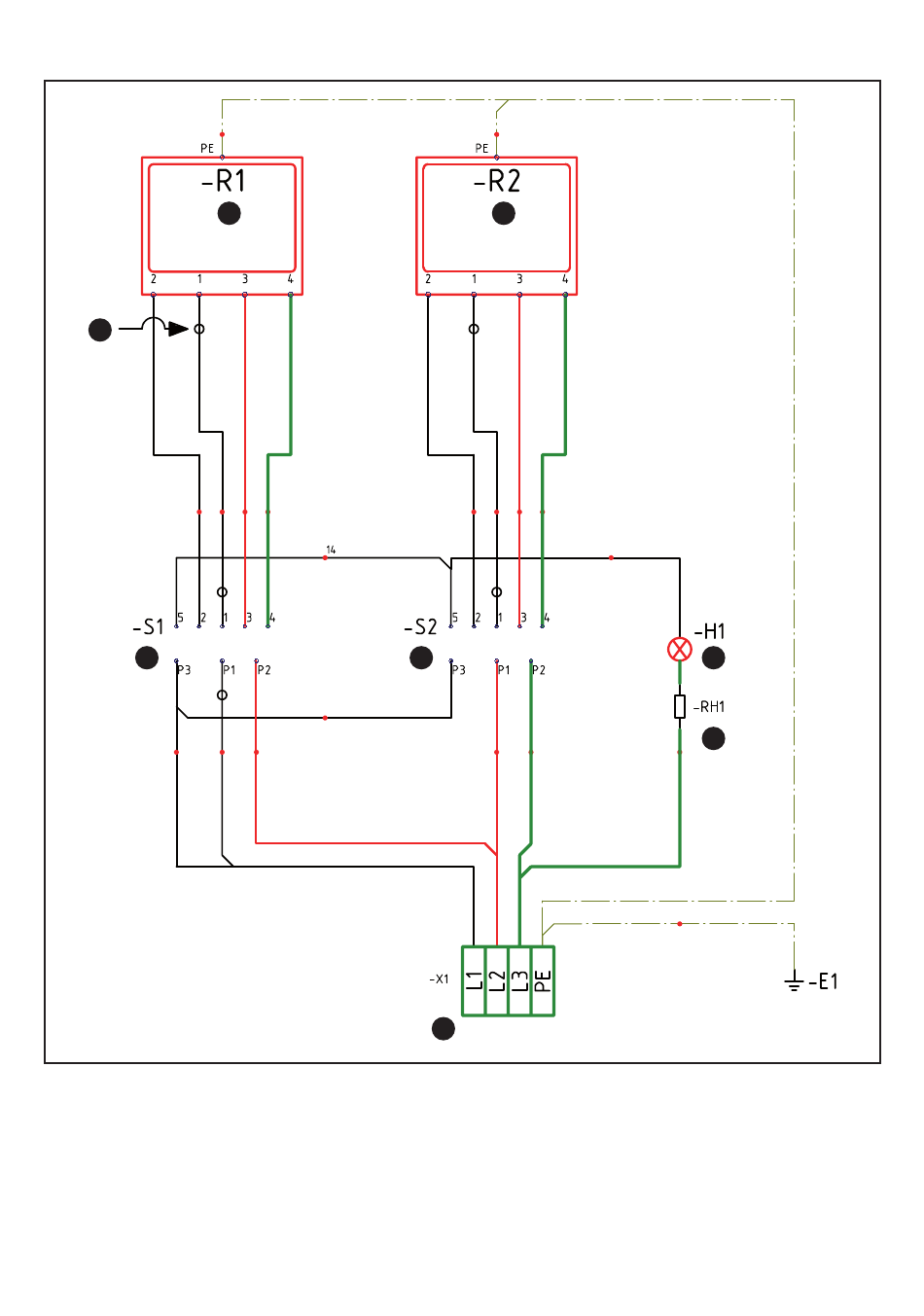

SCHEMA ELETTRICO (0S0PE4 - 0S1PE4) - ELECTRIC DIAGRAM (0S0PE4 - 0S1PE4)
6
5
1) Morsettiera - Terminal board.
2) Resistenza spia verde - Hight element mains power
light
3) Lampada spia di rete - Mains power light.
4) Commutatore selettore potenza (piastra posteriore)
- Power selector switch (rear plate).
XII
8
7
4
1
400V3
5) Commutatore selettore potenza (piastra anteriore) -
Power selector switch (front plate).
6) Termorestringente- heat-shrink tubing
7) Piastra elettrica posteriore - Rear electric plate
8) Piastra elettrica anteriore - Front electric plate
ALLEGATI - ANNEXES
3
2
3395230_allegati_rev.1
