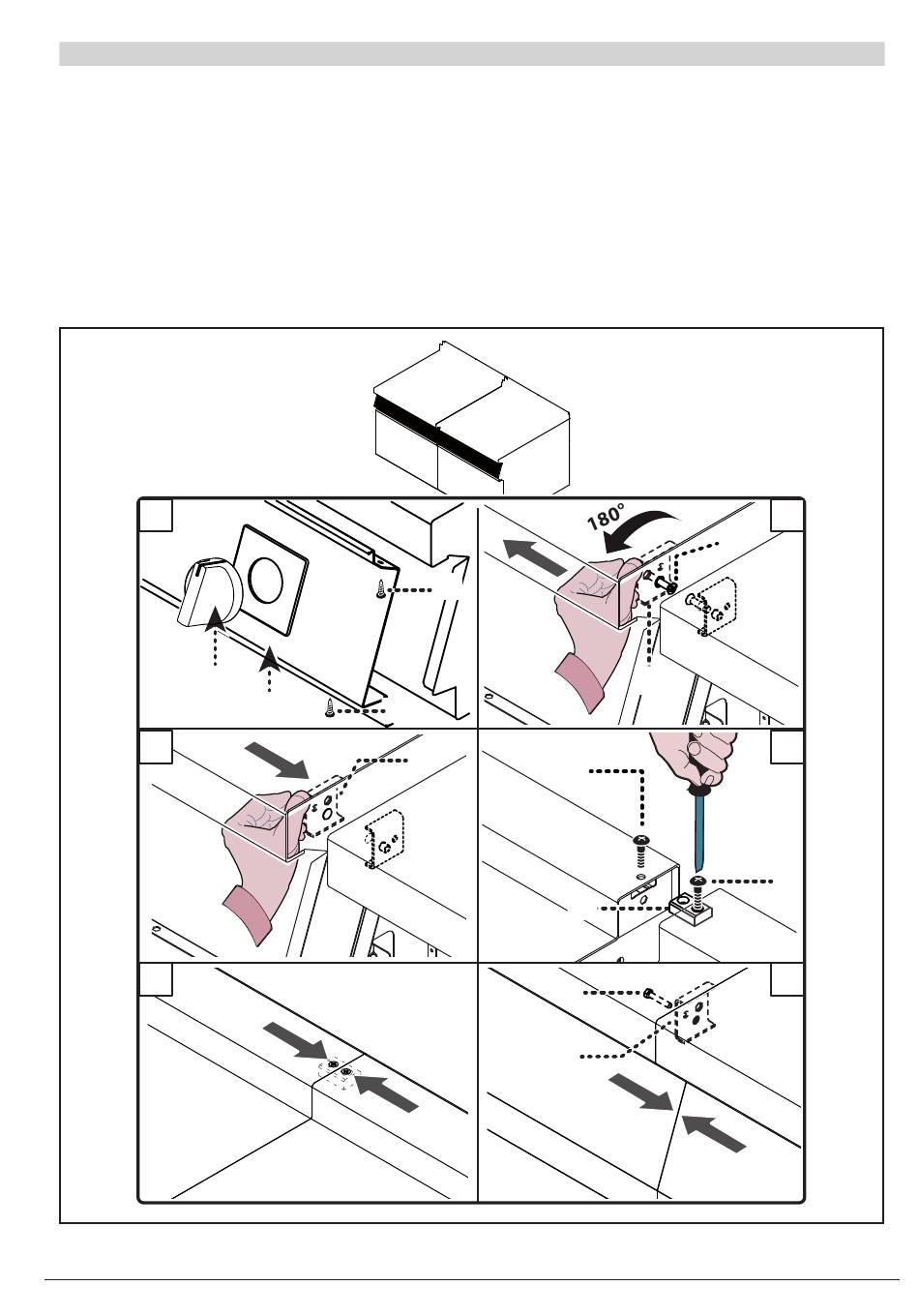

MOVIMENTAZIONE E INSTALLAZIONE
Per montare le apparecchiature in batteria
(fi anco a fi anco) procedere nel modo indicato.
Sfi lare le manopole (A).
1)
Svitare le viti (C) e smontare i cruscotti (B).
2)
Svitare la vite (D) e ruotare la staff a (E) di 180°
3)
in senso antiorario.
Collegare le apparecchiature con le viti (F) e
4)
la staff a (G) (parte posteriore).
1
A
3
5
3395230_inst_rev.1

MONTAGGIO APPARECCHIATURE IN BATTERIA

B
C
Collegare le apparecchiature con la vite (H)
5)
(forniita a corredo) e la staff a (E) (parte ante-
riore).
Rimontare i cruscotti (B) e le manopole (A)
6)
ad operazione ultimata.
Per le apparecchiature in batteria sono disponi-
bili, a richiesta, diversi kit di allestimento (vedi
"catalogo generale").
C
E
F
G
H
E
ITALIANO
2
D
E
4
F
6
9
