3.1.3
HDD Module Installation
ITA-3650T reserves space for installing a 2.5" HDD module.
The installation procedure is as follows:
1.
Place the HDD into 2.5" HDD holder, and secure it in place using 4 screws.
2.
The HDD holder features 7 semi-circles on both sides, which are used to attach
rubber cushions.
3.
Place the HDD holder onto HDD bracket, and secure it in place using 7 screws.
4.
Install the complete HDD module in the chassis and affix it in place using 6
screws.
5.
Place the cooling pad onto the PCB panel of the HDD. Align the cooling pad with
the magnetic head to avoid covering the head.
ITA-3650T Series User Manual

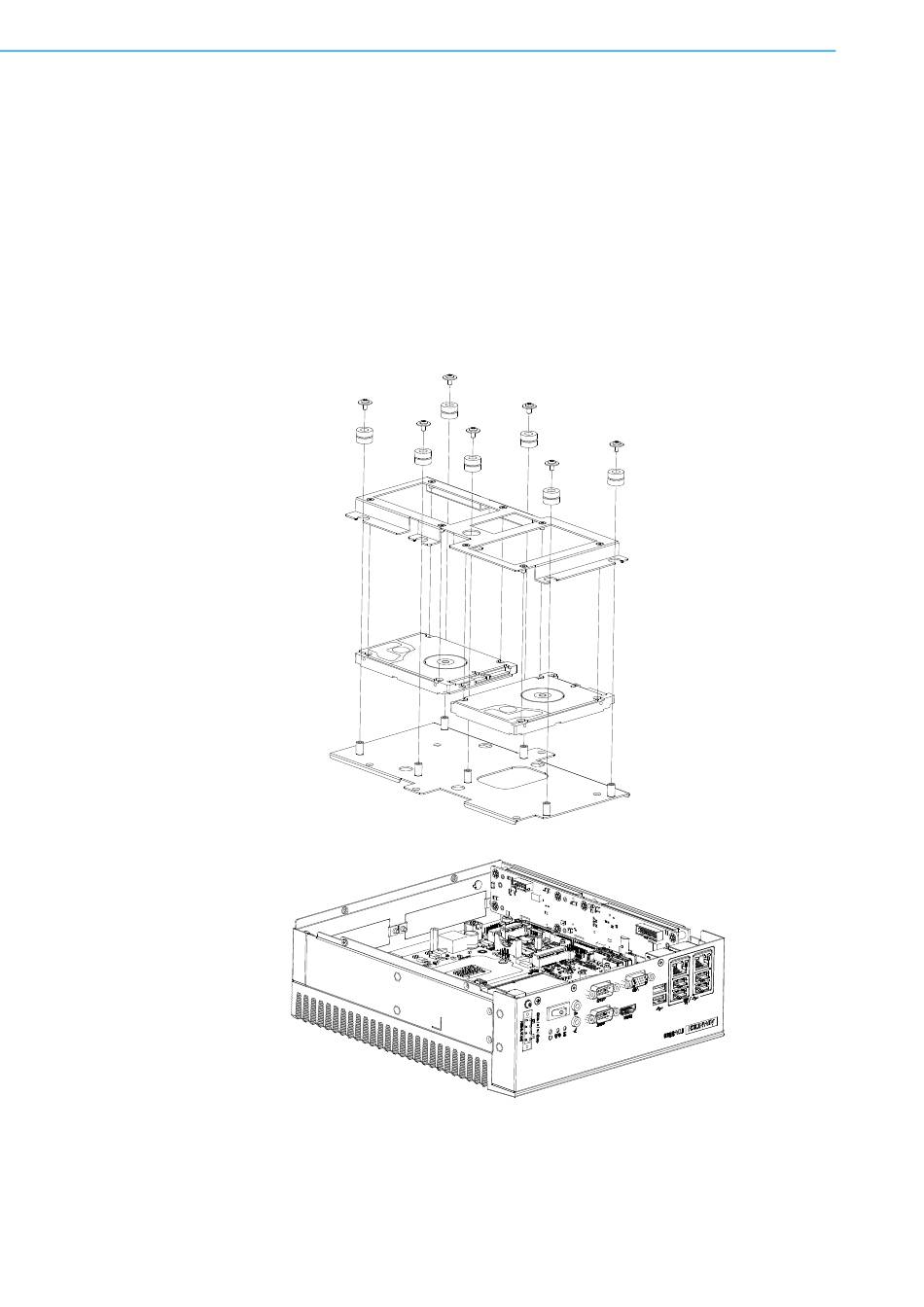

Figure 3.3 HDD Module Installation
22
