3.1.5
Mount Bracket Installation
Align the 2 mount brackets with the screw holes on the chassis side panel. Secure
the brackets in place using 4 M4 screws, as shown in Figure 3.5.
3.1.6
Expansion Module Installation
To install an AI acceleration module, follow the instructions below:
1.
Remove the top cover.
2.
Loosen the 12 screws in the expansion module panel. Remove the expansion
module panel.
3.
Install the AI expansion module onto the chassis base, as shown in Figure 3.6.
ITA-3650T Series User Manual

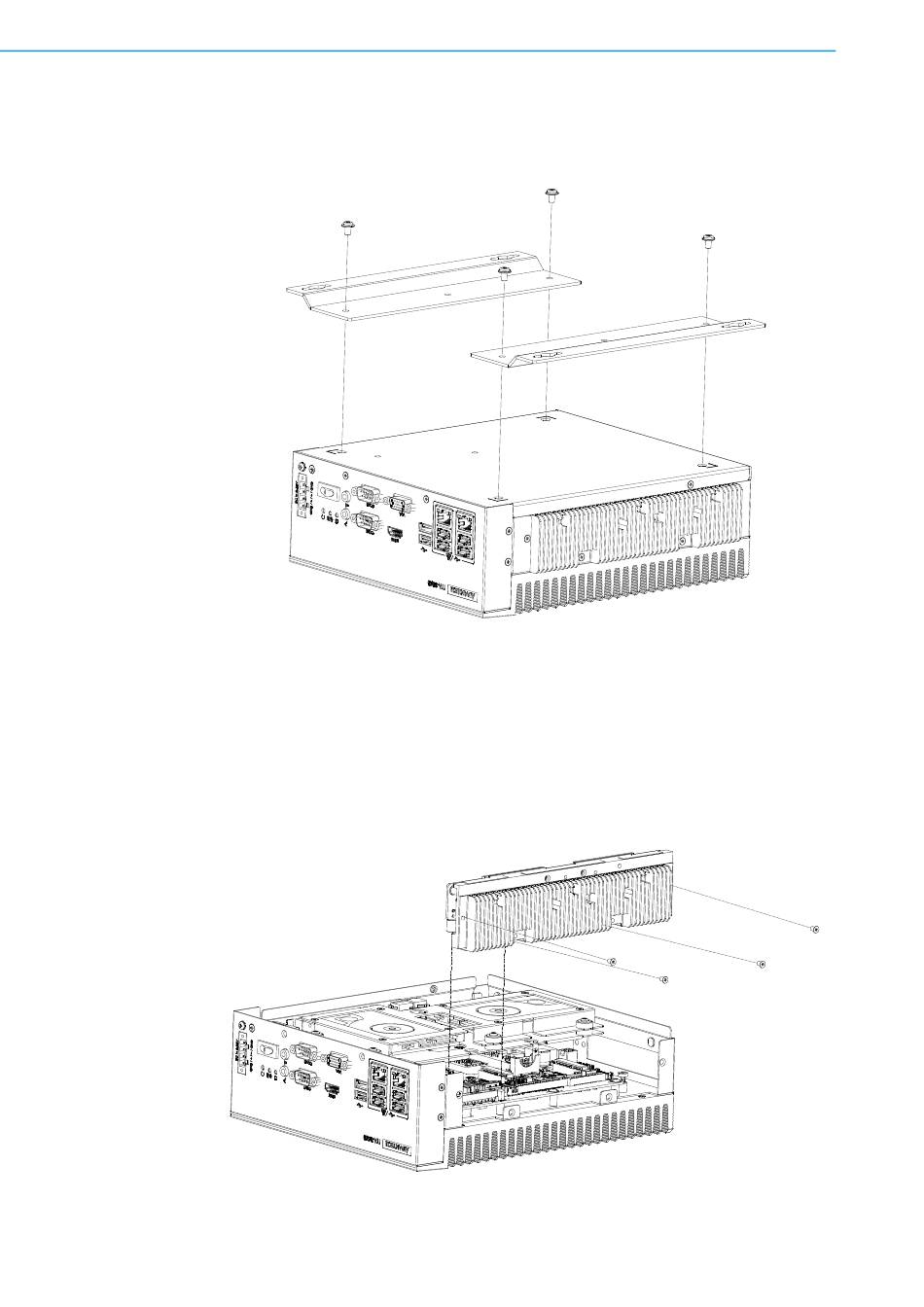

Figure 3.5 Mount Bracket Installation
Figure 3.6 Expansion Module Installation
24
