5 Configuration of the system
5.1.3 FC VSD Pr of ile

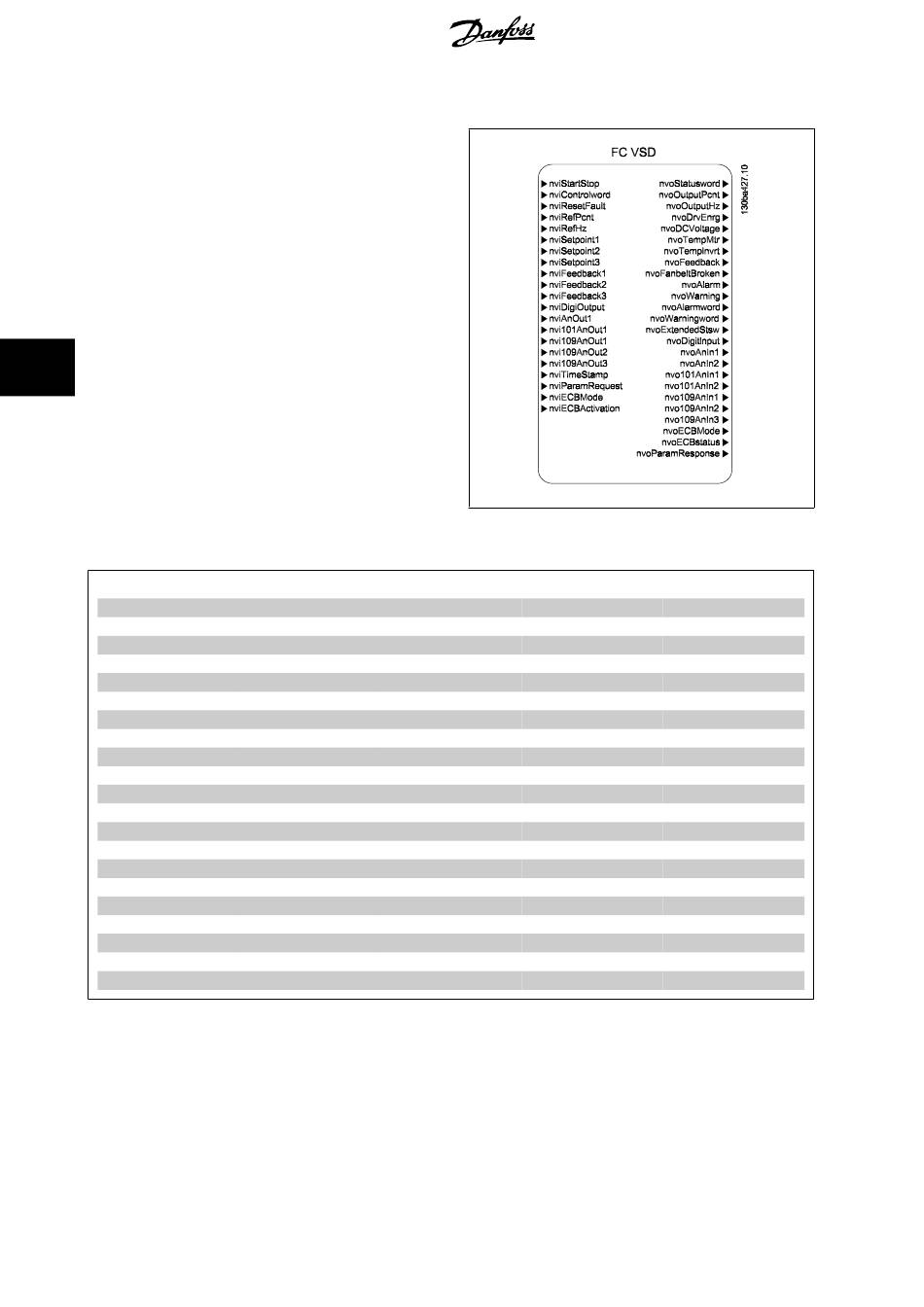

The FC VSD Profile describes all Danfoss VLT specific network variables.
5
I nput variables
Variable Funct ion
Start/Stop
Control word
Reset fault
Reference [%]
Reference [Hz]
CL Setpoint 1
CL Setpoint 2
CL Setpoint 3
Bus feedback 1
Bus feedback 2
Bus feedback 3
Digital/relay outputs
Analog output (42)
Analog output (X30/8)
Analog output (X42/7)
Analog output (X42/9)
Analog output (X42/11)
Setting of RTC
ECB option Mode
ECB By-pass activation
Parameter access command nviParamRequest
20
Var iable Nam e SNVT t ype
nviStartStop SNVT_switch
nviControlword SNVT_state
nviResetFaut SNVT_switch
nviRefPcnt SNVT_lev_percent
nviRefHz SNVT_freq_hz
nviSetpoint1 SNVT_lev_percent
nviSetpoint2 SNVT_lev_percent
nviSetpoint3 SNVT_lev_percent
nviFeedback1 SNVT_lev_percent
nviFeedback2 SNVT_lev_percent
nviFeedback3 SNVT_lev_percent
nviDigiOutput SNVT_state_64
nviAnOut1 SNVT_lev_percent
nvi101AnOut1 SNVT_lev_percent
nvi109AnOut1 SNVT_lev_percent
nvi109AnOut2 SNVT_lev_percent
nvi109AnOut3 SNVT_lev_percent
nviTimeStamp SNVT_time_stamp
nviECBMode SNVT_state
nviECBActivation SNVT_switch
UNVT_param_request
MG.11.E2.02 - VLT
Prof ile
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
FC VSD
®
is a registered Danfoss trademark
VLT® FC 100 LonWorks
FC 100 par .
CTW/reference
CTW
CTW
Reference
Reference
20-21
20-22
20-23
8-94
8-95
8-96
5-90
6-53
6-63
26-43
26-53
26-63
0-70
31-00
31-19
-
