VLT® FC 100 LonWorks

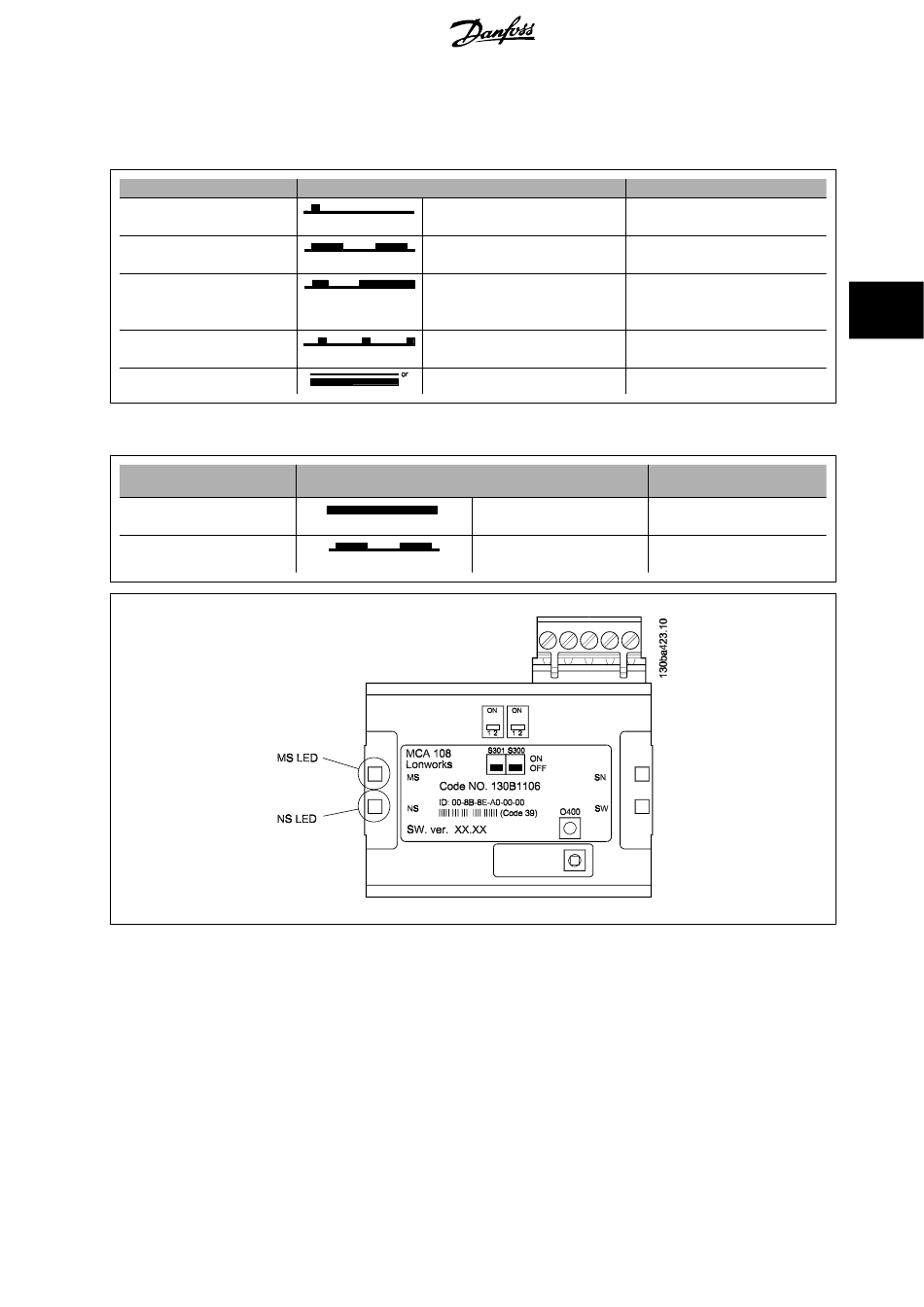

4.1.8 LED Behaviour
MS: Ser vice LED ( r ed)
Situation
Configured state (Nornal operation)
Non configures state
Applicationlessstate
Watchdog resets
Faulty hardware
NS: St at us LED ( green)
Situation
Node configured
Wink sevice
LED
½ sec. ON, then continously OFF
Flashing ½ Hz
1 sec. ON, 2 sec. OFF, then continuosly
ON
Short flash about each 3 sec.
Steady ON or OFF
LED
Steady ON
Flashing ½ Hz for 20 sec.
®
MG.11.E2.02 - VLT is a registered Danfoss trademark
4 How to install
Description
The node is configures and running nor-
mally
Node is not configures but has an appli-
cation. Proceed with loading node.
Node has no application, the LonWorks
option needs replacing or reprogram-
ming
Indicates problem with application. The
LonWorks option needs replacing
The LonWorks option needs replacing
Description
The node is configures and running
normally
Wink service activated in order to
identify node.
