Installation Guide

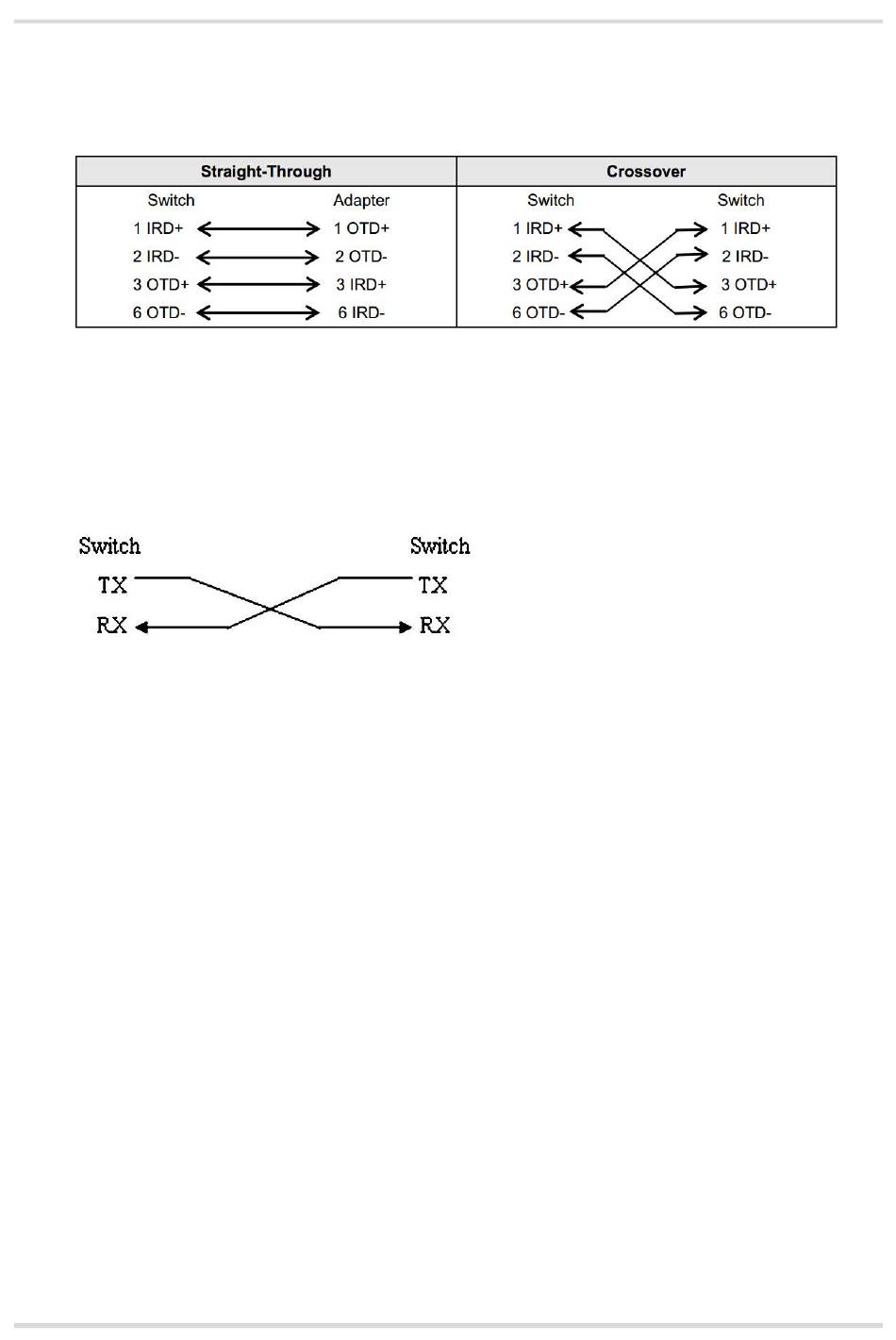

The following figure shows wiring of straight-through and crossover cables for the 100BASE-TX/10BASE-T port.
Figure 6-2
100BASE-TX/10BASE-T Twisted Pair Connections
Optical Fiber Connection
You can choose single mode or multimode fibers according to the module types. Figure 6-3 shows the
connection of fiber-optic cable.
Figure 6-3
Fiber-Optic Cable Connection
