Installation Guide

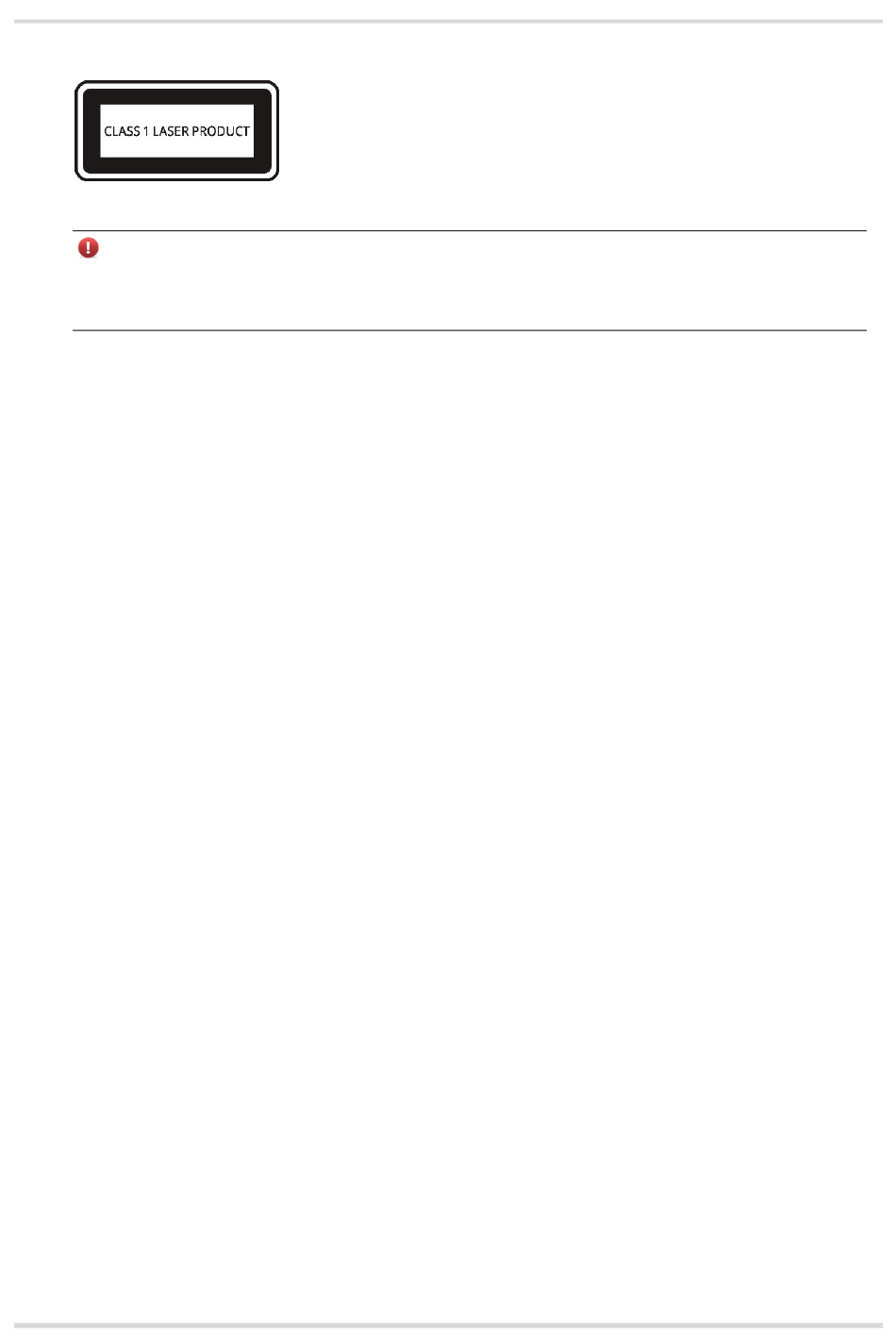

Figure 2-1 Laser Product Warning
Warning
Do not approach or look into any optical port under any circumstances. This may cause permanent damage to
your eyes.
2.2

Installation Environment Requirements

To ensure the normal operation and prolonged service life of the device, it is essential to install it indoors in a
location that meets the following requirements.
2.2.1

Bearing Requirements

Assess the combined weight of the device and its accessories, including the cabinet, chassis, and power supply,
and verify that the installation site's ground meets the necessary specifications.
2.2.2

Ventilation Requirements

Maintain adequate clearance around the device for air circulation and heat dissipation. After connecting various
cables, bundle them or place them in cable management brackets to prevent them from blocking air vents.
2.2.3

Space Requirements

Ensure that indoor pathways are at least 800 mm (31.50 in.) wide to allow for proper chassis handling and
module swapping.
Do not install the device directly against a wall. Instead, maintain a minimum clearance of 0.4 m (15.75 in.)
around the device for heat dissipation and device maintenance.
2.2.4

Temperature and Humidity Requirements

For optimal device performance and extended service life, it is essential to maintain suitable temperature and
humidity conditions in the equipment room. Prolonged exposure to excessively high or low temperature and
humidity can potentially cause damage to the device.

When exposed to high relative humidity, insulating materials may exhibit poor insulation capabilities,
increasing the risk of electrical leakage. Furthermore, high humidity can cause mechanical changes in
materials and corrosion of metallic components.

When exposed to low relative humidity, the insulating strip may dry out and shrink, increasing the risk of static
electricity generation. This static electricity can pose a danger to the circuits inside the device.

In a dry environment, static electricity is prone to occur and damage the internal circuits of the device.

High temperature environments can be detrimental to the device, leading to reduced performance and a
shorter service life. Prolonged exposure to elevated temperatures can expedite the device's aging process.
8
Preparing for Installation
