Installation Guide

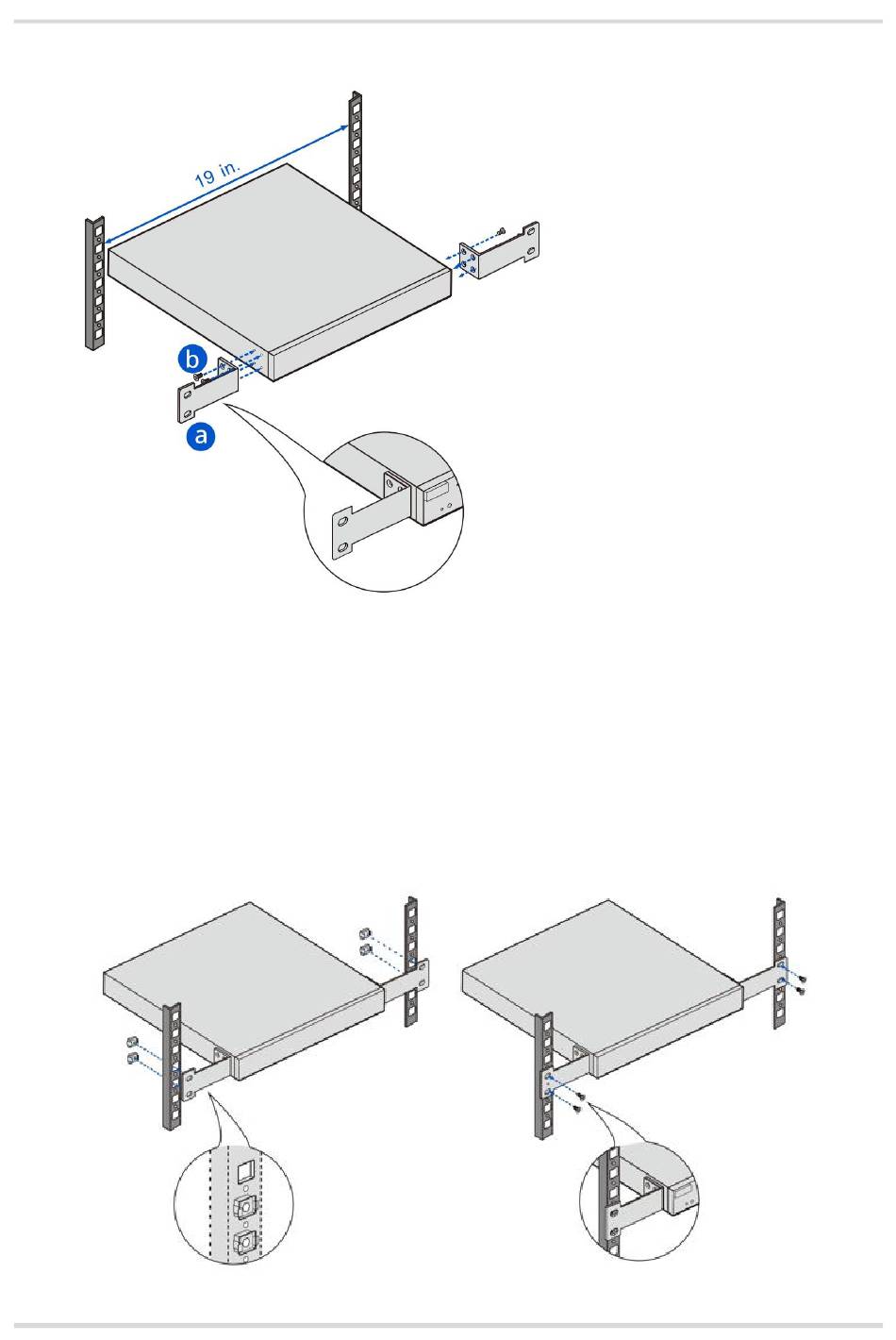

Figure 3-2 Securing Mounting Brackets
Follow the steps below to mount the switch in a 19-inch rack:
(1) Verify that the mounting brackets are securely attached to both sides of the switch
(2) Install the cage nuts into the square holes of the rack posts.
(3) Have one person support the bottom of the switch while moving it along the rack to find the desired position.
(4) Another person secures the switch to the rack by attaching the mounting brackets to the rack using M6
screws and cage nuts. Ensure that the switch is level and firmly mounted in place.
Figure 3-3 Mounting the Switch in a Rack
15
Installing the Switch
