Installation Guide
6

Appendixes

6.1

Connectors and Media


1000BASE-T/100BASE-TX/10BASE-T Port
The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto
MDI/MDIX Crossover.
Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (recommended) with a
maximum distance of 100 meters (328 feet).
The 1000BASE-T port requires all four pairs of wires to be connected for data transmission. Figure 6-1 shows
the four pairs of wires for the 1000BASE-T port.

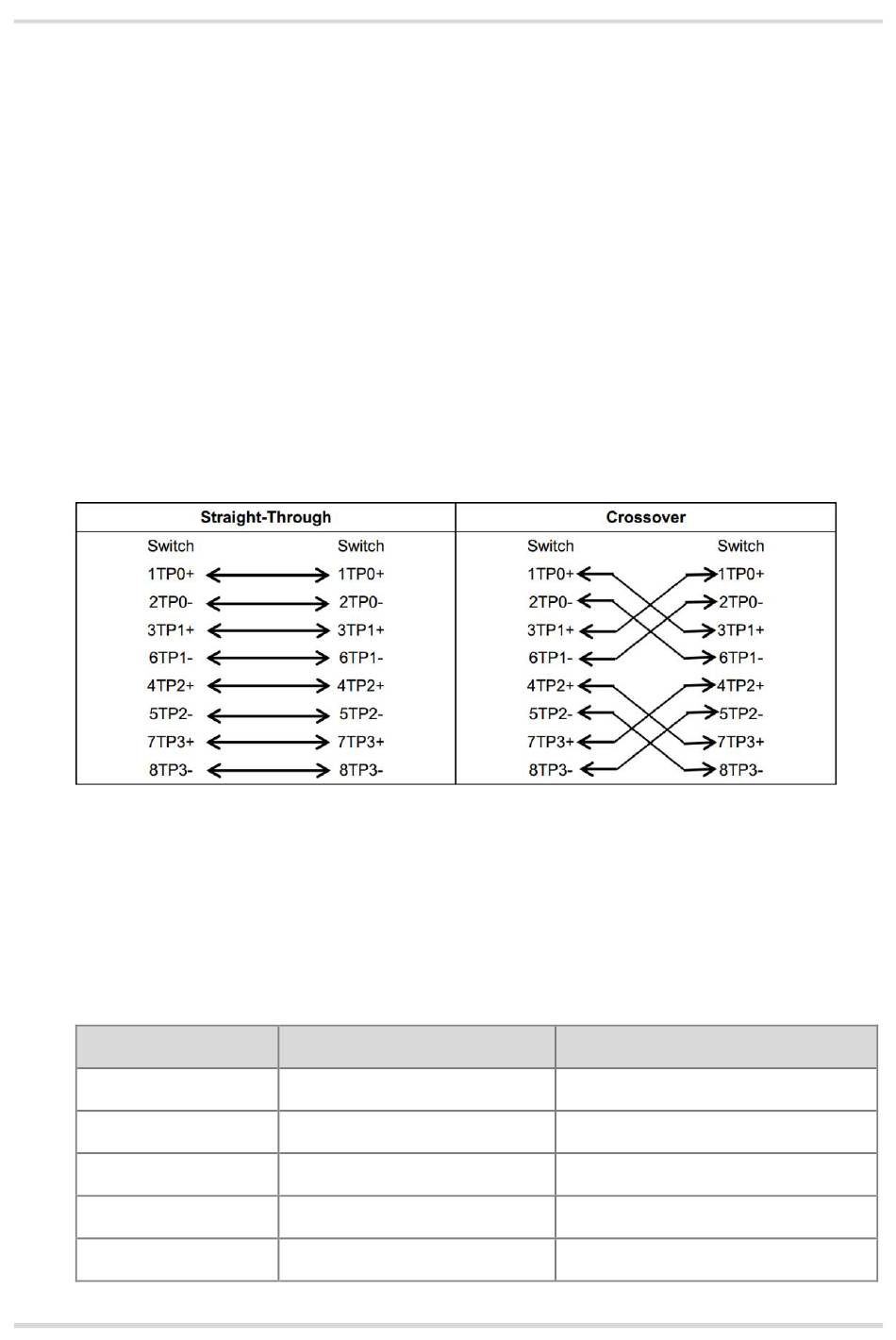

Figure 6-1 1000BASE-T Twisted Pair Connections
100BASE-TX/10BASE-T can be interconnected using cables of the preceding specifications. For 10 Mbps, the
100BASE-TX/10BASE-T port can be connected using 100-ohm Category 3, Category 4, and Category 5 cables;
for 100 Mbps, the 100BASE-TX/10BASE-T port can be connected using 100-ohm Category 5 cables with a
maximum connection distance of 100 meters. The following table shows 100BASE-TX/10BASE-T pin
assignments.
Table 6-1 100BASE-TX/10BASE-T Pin Assignments
Pin
1
2
3
6
4, 5, 7, 8
Socket
Input Receive Data+
Input Receive Data-
Output Transmit Data+
Output Transmit Data-
Not Used
22
Plug
Output Transmit Data+
Output Transmit Data-
Input Receive Data+
Input Receive Data-
Not Used
