Ruijie Networks RG-ES05 Hardware Installation And Reference Manual

Reyee 5/8-port plastic series switches
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Ruijie Reyee 5/8-Port Plastic Series Switches
Hardware Installation and Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-ES05 and is the answer not in the manual?

Questions and answers

Related Manuals for Ruijie Networks RG-ES05

Summary of Contents for Ruijie Networks RG-ES05

  • Page 1 Ruijie Reyee 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide...
  • Page 2 Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption Statement This document is provided “as is”.
  • Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance  Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support...

  • Page 4: Product Overview

    Port Port Ethernet Port RG-ES05 RG-ES08 RG-ES05G RG-ES08G 1000Base-T is downward compatible with 100Base-TX and 10Base-T. 1.1 RG-ES05 Technical Specifications Model RG-ES05 Ports Supports 5 10/100 Base-TX auto-sensing Ethernet ports.  AC input Rated voltage range: 100 VAC to 240 VAC...

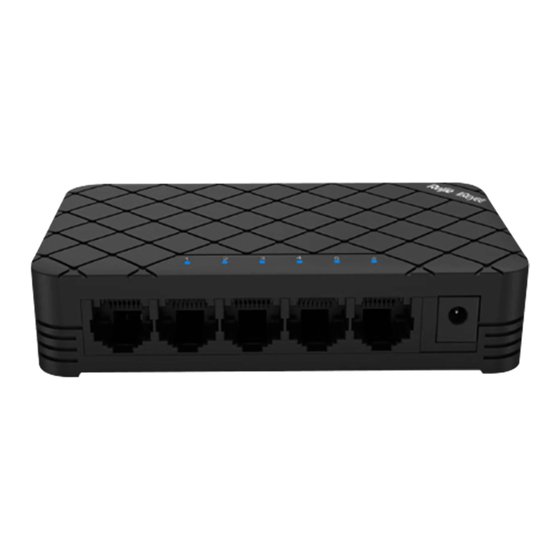

  • Page 5 Weight 0.19 kg (0.42 lbs) (With Package) The RG-ES05 switch is a class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Product Appearance On the front panel, the RG-ES05 Ethernet switch provides five 10/100Base-TX Ethernet ports and a DC power port.
  • Page 6 Heat Dissipation The RG-ES05 adopts natural heat dissipation, thereby ensuring normal function of the device. Maintain a minimum clearance of 100 mm (3.94 in.) around the device. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.
  • Page 7 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Not supported Not supported Power Less than 3W Consumption Operating 0℃ to 40℃ (32° F to 104° F) Temperature Storage -40℃ to 70℃ (-40° F to 158° F) Temperature Operating Humidity 10% to 90% RH Storage Humidity 5% to 95% RH...
  • Page 8 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Front Panel Figure 1-4 Front Panel of RG-ES08 Note: 1. 10/100Base-TX Ethernet port 2. RJ45 port status LED 3. System status LED 4. DC power port Heat Dissipation The RG-ES08 adopts natural heat dissipation, thereby ensuring normal function of the device. Maintain a minimum clearance of 100 mm (3.94 in.) around the device.
  • Page 9 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide The port is not connected. Solid on The port is connected at 10/100 Mbps. RJ45 port status LED The port is receiving or sending traffic at 10/100 Blinking Mbps. 1.3 RG-ES05G Technical Specifications RG-ES05G Model...
  • Page 10 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide GB4943-2011 Security Standards EN 62638-1 Earth Leakage ≤ 1.5mA Current Dimensions 108.1 mm x 64 mm x 24.8 mm (4.26 in. x 2.52 in. x 0.98 in.) (W x D x H) Weight 0.2 kg (0.44 lbs) (With Package)
  • Page 11 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Note: 1. 10/100/1000Base-T Ethernet port 2. RJ45 port status LED 3. System status LED 4. DC power port Heat Dissipation The RG-ES05G adopts natural heat dissipation, thereby ensuring normal function of the device. Maintain a minimum clearance of 100 mm (3.94 in.) around the device.
  • Page 12 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Not supported Not supported Power Less than 6.5W Consumption Operating 0℃ to 40℃ (32° F to 104° F) Temperature Storage -40℃ to 70℃ (-40° F to 158° F) Temperature Operating Humidity 10% to 90% RH Storage Humidity 5% to 95% RH...
  • Page 13 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Front Panel Figure 1-9 Front Panel of RG-ES08G Note: 1. 10/100/1000Base-T Ethernet port 2. RJ45 port status LED 3. System status LED 4. DC power port Heat Dissipation The RG-ES08G adopts natural heat dissipation, thereby ensuring normal function of the device. Maintain a minimum clearance of 100 mm (3.94 in.) around the device.
  • Page 14 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Solid on The port is connected at 10/100/1000 Mbps. The port is receiving or sending traffic at Blinking 10/100/1000 Mbps.

  • Page 15: Preparation Before Installation

    Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide 2 Preparation before Installation 2.1 Safety Suggestions To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the 5/8-port plastic series switch. The following safety suggestions do not cover all possible dangers. 2.1.1 Installation ...

  • Page 16: Static Discharge Damage Prevention

    Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide current of the system totals 30mA. A leakage protector with 30mA rated action current supports less than ten power supplies (that is, Action current of the leakage protector/2/Maximum leakage current of each power supply =30/2/1.5=10).
  • Page 17 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide  In an environment with low relative humidity, however, the insulating strip may dry and shrink. Static electricity may occur easily and endanger the circuit on the equipment.  In an environment with high temperature, the equipment is subject to even greater harm, as its performance may degrade significantly and various hardware faults may occur.

  • Page 18: Installation Tools

    Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide 2.2.4 EMI Electro-Magnetic Interference (EMI), from either outside or inside the equipment or application system, affects the system in the conductive ways such as capacitive coupling, inductive coupling, and electromagnetic radiation. There are two types of electromagnetic interference: radiated interference and conducted interference, depending on the type of the transmission path.

  • Page 19: Product Installation

    If outdoor cabling is necessary, take relevant measures for lightning protection. 3.2.1 Mounting the Switch on the Wall RG-ES05, RG-ES08, RG-ES05G and RG-ES08G can be mounted on the wall. (Mounting screws and wall anchors are customer supplied.) In actual installation, users need to determine the size and depth of the two mounting holes on the wall based on the sizes of wall anchors and screws.

  • Page 20: Mounting The Switch On A Table

    Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Step 4: As shown in Figure 3-1, Align the two mounting holes on the bottom of the chassis of the device with the screws, and then fasten the device on the screws. Figure 3-1 Mounting the Switch on the Wall Suitable for mounting on concrete or other non-combustible surface only.
  • Page 21 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide 3.4 Adding Unmanaged Device to Topology Note: There must be devices that can be managed in the network, including Reyee EG or ES2/NBS switches. Scenarios:  Add a new unmanaged switch: Select its uplink device, and scan the QR-code on the switch or manually add it to the topology.
  • Page 22 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide 3.4.2 Adding Unmanaged Device Manually Tap Topology to enter the topology page. Tap the Topology button, and select the existing managed device. To add an unmanaged downlink switch manually, select Manually Add. Select the device model and its uplink port, and the device is added successfully.
  • Page 23 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide...

  • Page 24: System Debugging

    Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide 4 System Debugging 4.1 Startup Check 4.1.1 Checking before the Device is Powered on  The power cable is correctly connected.  The power supply voltage complies with the requirement of the switch. 4.1.2 Checking after Program Startup (Recommended) After power-on, you are recommended to perform the following checks to ensure the normal operation of follow-up configurations.

  • Page 25: Maintenance And Troubleshooting

    Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide 5 Maintenance and Troubleshooting 5.1 General Troubleshooting Procedure 5.2 Troubleshooting Common Faults Symptom Possible Causes Solution The status indicator is Check whether the power socket at the equipment The power module does not work. not on after the switch room is normal and whether the power cable is The power cable is in loose contact.

  • Page 26: Appendix A Connectors And Connection Media

    Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Appendix A Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category-5 UTP or STP, which can be up to 100 m.
  • Page 27 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4: Figure A-4 Optical Fiber Connections...

  • Page 28: Appendix B Lightning Protection

    Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide Appendix B Lightning Protection Installing AC Power Arrester (lightning protection cable row) The external lightning protection cable row shall be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch.
  • Page 29 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide During the switch usage, the Ethernet port arrester shall be connected to the switch to prevent the switch damage by lightning before the outdoor network cable connects to the switch. Tools: Cross or straight screwdriver, Multimeter, Diagonal pliers Installation Steps: Tear one side of the protection paper for the double-sided adhesive tape and paste the tape to the framework of the...
  • Page 30 Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide  Reversed direction of the arrester installation. You shall connect the external network cable to the “IN” end and connect the switch Ethernet port to the “OUT” end.  Poor arrester grounding. The length of the grounding line should be as short as possible to ensure that it is in good contact with the switch grounding terminal.
