Rear Panel; Technical Specifications - Ruijie Networks Reyee RG-NBS3100-8GT2SFP-P-V2 Installation Manual

Installation Guide
1.3.2

Rear Panel

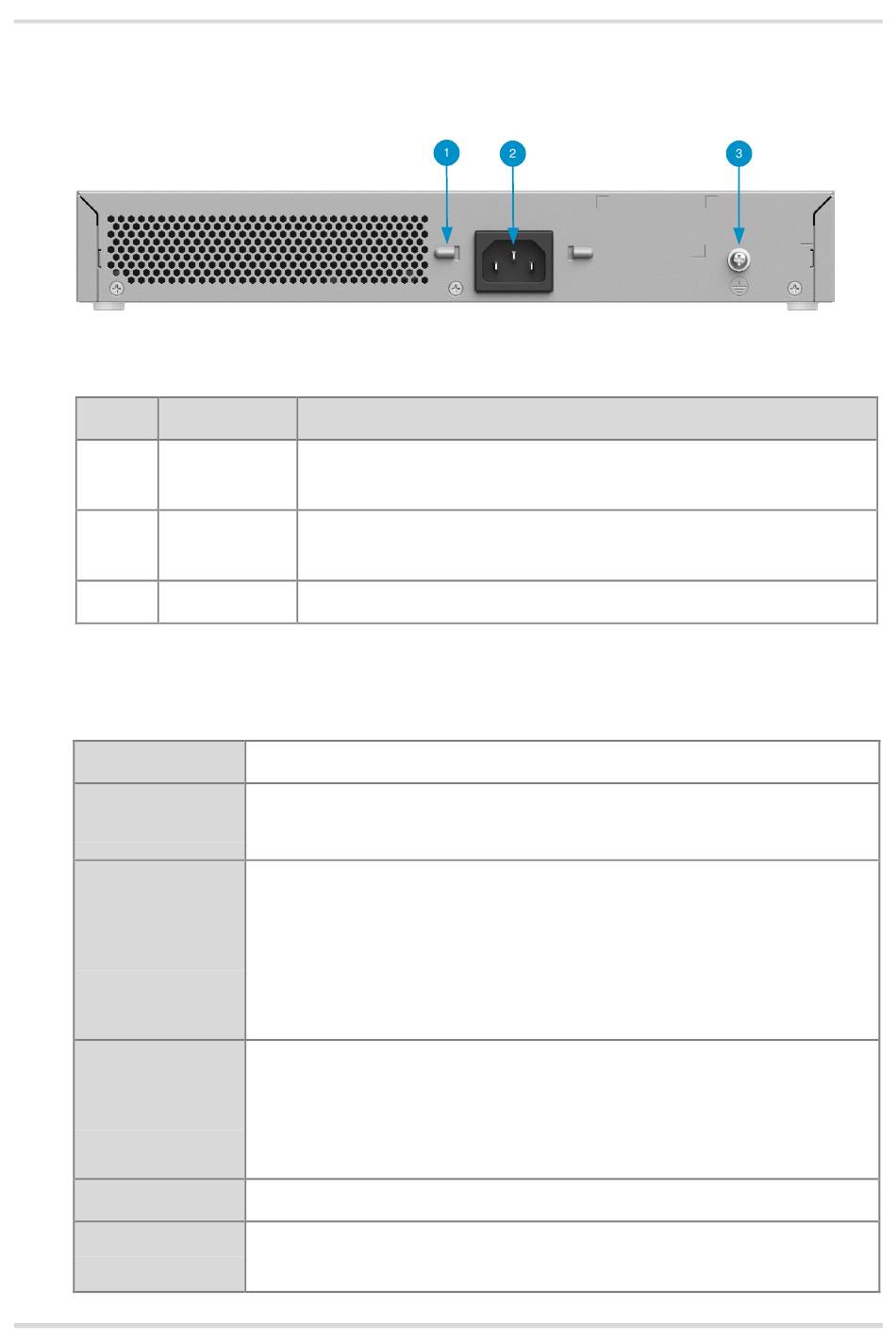

Figure 1-2 Rear Panel
Table 1-3 Rear Panel Components
No. Component
Power Cord
1
Retention Clip
Power
2
Connector
3 Grounding stud
1.4

Technical Specifications

Table 1-4 Technical Specifications
Model
Ports
Power Supply
PoE
PoE Power Pins
Max. Power
Consumption
Description
Secures the power cord.
Connects to an external AC power supply.
Secures the grounding lug to connect the chassis to earth ground.
RG-NBS3100-8GT2SFP-P-V2
8 x 10/100/1000Base-T ports with auto-negotiation
2 x 1000 Mbps SFP ports
AC input:
Rated voltage range: 100 V AC to 240 V AC
Max. voltage range: 90 V AC to 264 V AC
Frequency: 50 Hz or 60 Hz
Rated current: 2.5 A
Comply with the IEEE 802.3af and IEEE 802.3at. standards
Ports 1–8 are PoE/PoE+ ports, with each port supporting the maximum PoE+ power
output up to 30 W.
Maximum PoE/PoE+ output power: 125 W; PoE output voltage: 53.5 V
Mode A (1/2+, 3/6-)
150 W (full PoE load)
4
