CHAPTER 3: APPLICATION

3.8.5 FOUR TILES - PIP LEFT ON ONE DISPLAY

The "Four Tiles - Pip Left on one display" template contains four tiles, which each represent one connection, on one
display unit. There is one large tile, which occupies 2/3 of the screen distance, and three smaller Picture-in-Picture
(PiP) tiles to the left of that tile, each of which occupies 1/3 of the remaining screen area.
NOTE: The tile numbers shown in the template are important, since you map a connection to a specific tile location
when you create a workspace.
When you click on the "Preview" button for this option, the system displays an example of the template, as shown in
Figure 3-64 below:

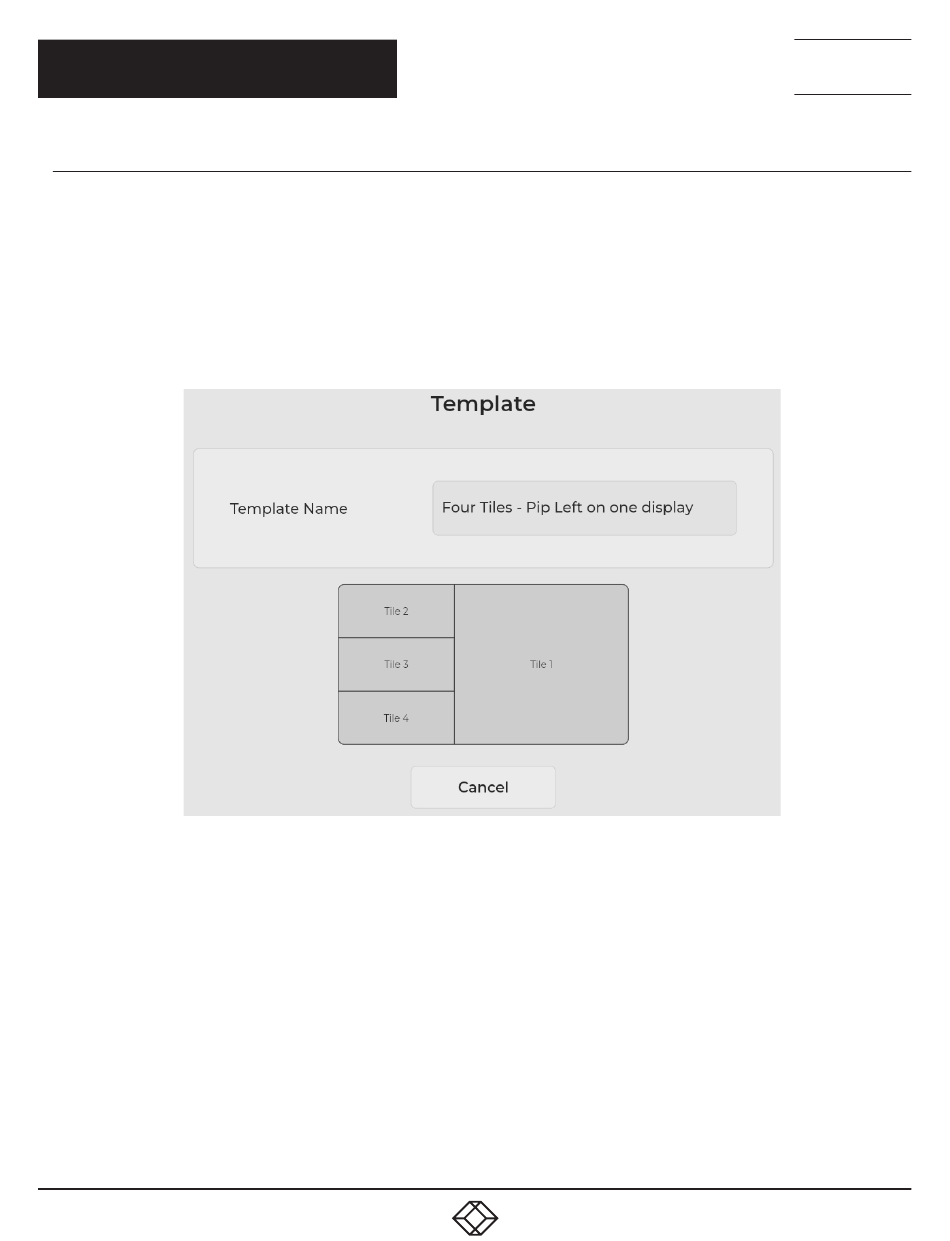

FIGURE 3-64: FOUR TILES - PiP LEFT ON ONE DISPLAY TEMPLATE
