3.6.1 TRANSMITTER SETTINGS

The DESKVUE unit is capable of discovering and configuring Emerald
Boxilla is being used. Enter the IP address of a known configured transmitter, or alternatively use the "Discover"
button to find the device's IP address. If a transmitter is managed by Boxilla, the DESKVUE unit won't be able to
configure or connect to it unless DESKVUE is part of the same Boxilla network. The transmitter can be in its default
state or already have a configured IP address assigned to it. As long as it is not managed, the DESKVUE unit will be
able to establish a connection to the transmitter and configure it.
The Transmitter Settings page, shown in Figure 3-20, allows the administrator to view and set configuration
parameters for the transmitter. By default, this page shows most buttons grayed out, except for the "Discover"
button. If you know the transmitter's IP address, enter it at the top of the screen, and then click "Apply." If the
transmitter's IP address is unknown, use the Discover process and follow the on-screen instructions.
24
TABLE 3-6. GLOBAL SETTINGS (CONTINUED)
DESCRIPTION
Use this option to configure if the DESKVUE unit shows overlays by either enabling or
disabling overlays via the drop-down menu. These options are shown in Figure 3-19
below:
.
1.877.877.2269

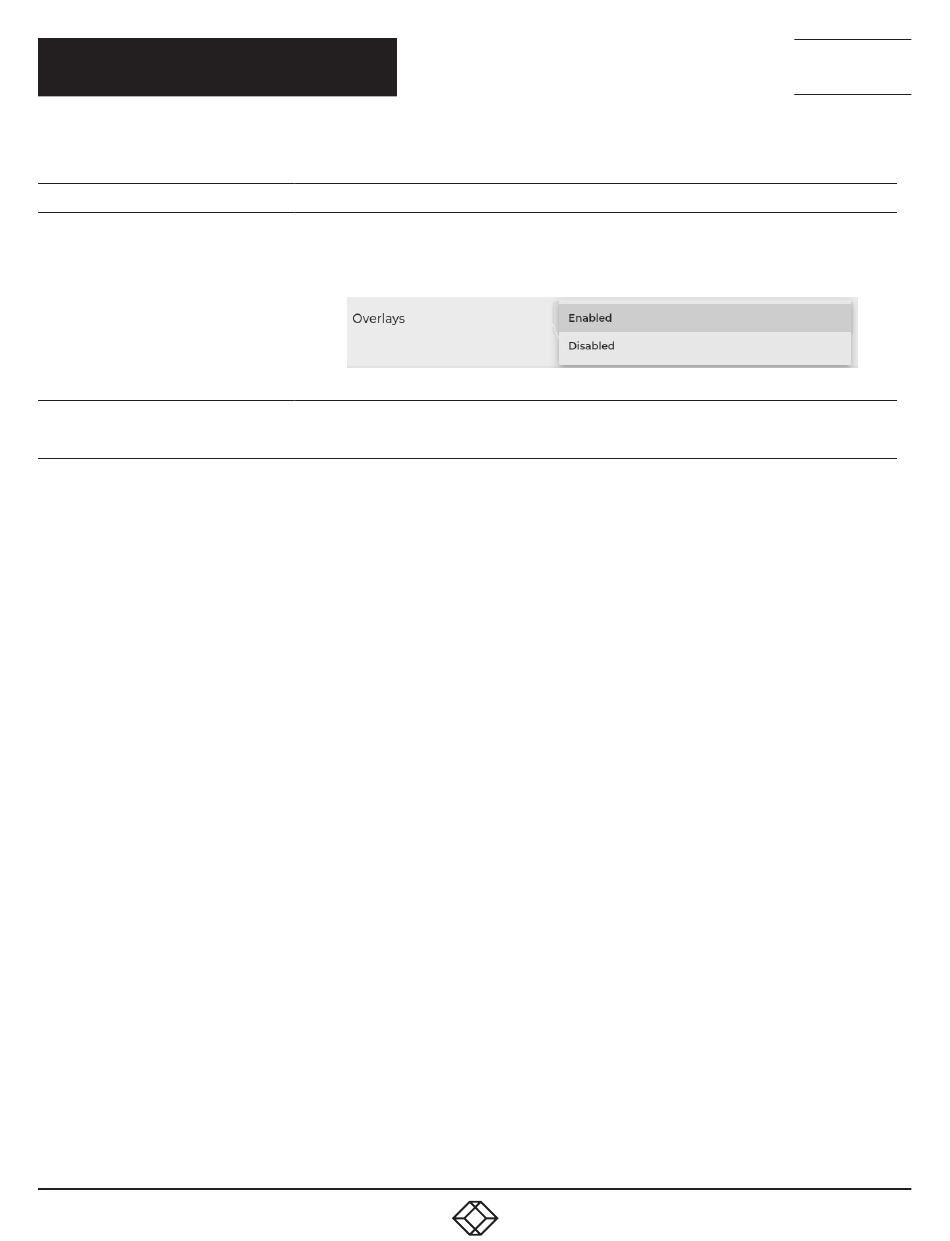

FIGURE 3-19: OVERLAY OPTIONS
