CHAPTER 3: APPLICATION
Table 3-3 explains the options on the "Network Settings" screen.
ITEM
Obtain an IP address
automatically
(DHCP Slider Bar)
IP Address
Subnet Mask
Gateway
Primary DNS Address
Secondary DNS Address
Save/Cancel buttons
TABLE 3-3. NETWORK SETTINGS
DESCRIPTION
When you set this DHCP Slider Bar to the "ON" position by dragging it to the right and
then click on the "Save" button, the system tries to obtain an IP address automatically.
If successful, it displays a message stating that the IP address was saved successfully,
as shown in Figure 3-11 below:

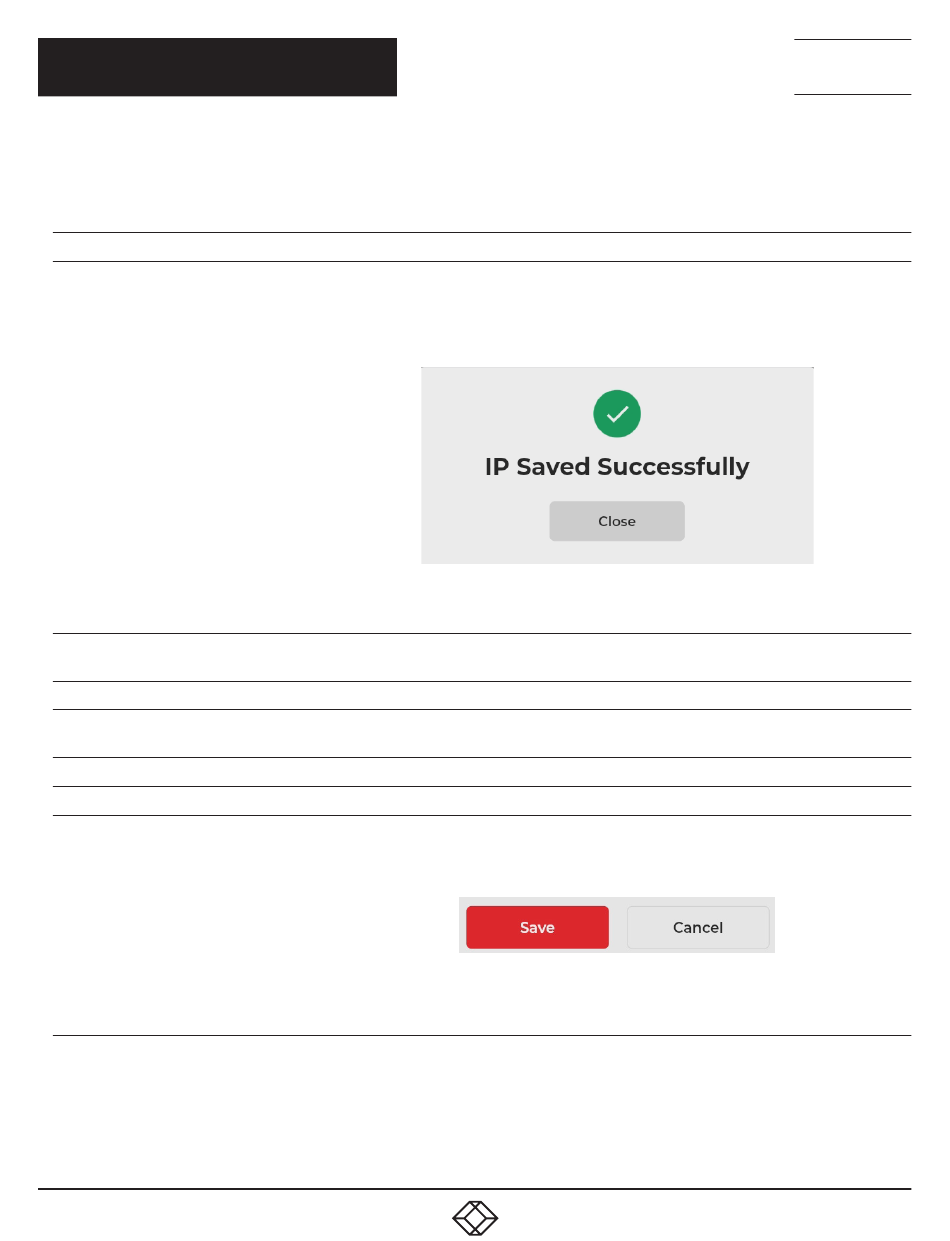

FIGURE 3-11: SUCCESSFUL IP SAVE MESSAGE
Click on the message's "Close" button to exit the message screen.
By default, the IP address is set to 192.168.1.21. You can keep this IP address, edit
it, or use the DHCP slider bar to obtain an IP address automatically.
Configure the Subnet Mask to meet your network requirements.
By default, the Gateway address is 192.168.1.1. Configure the Gateway to meet your
network requirements.
(optional) You can enter the Primary DNS address in this field.
(optional) You can enter the Secondary IP address in this field.
Click on the "Save" button to save information that you entered. Click on the "Cancel"
button to discard information that you entered. The "Save" and "Cancel" buttons are
shown in Figure 3-12 below:
FIGURE 3-12: SAVE AND CANCEL BUTTONS
After you click on the "Save" button, the system shows the message shown in
Figure 3-11 after it successfully saves the IP address.
