CHAPTER 3: APPLICATION
ITEM
Audio Source
Orientation (Transmitter option)
Port (RDP and H.264 options)
User Name (RDP, PCoIP, and
H.264 options)
Password (RDP, PCoIP, and H.264
options)
Domain (RDP and PCoIP options)
Extended Desktop (Transmitter,
RDP, and PCoIP options)
TABLE 3-9. NEW CONNECTION OPTIONS (CONTINUED)
DESCRIPTION
Use this drop-down list box to select the audio source. You can choose "OFF," "3.5mm/
DP Audio," or "HID Audio" from the list, as shown in Figure 3-50 below. "OFF" disables
audio for the device. and "3.5MM/DP audio" enables audio. HID Audio is model
dependent. When supported, it enables audio to be sent over the USB channel to a
USB speaker.
Set the video orientation for the connection. You can select between landscape and
portrait modes, as shown in Figure 3-51 below:
Enter the port for the RDP or H.264 target device. 3389 is the standard RDP protocol,
while port 554 is the default H.264 port.
Enter the user name for the connection.
Enter the password for the desired RDP user that was entered in the previous section.
If you leave the password field blank, the Emerald
automatically log in, and it will display the login screen.
Enter the device's domain, if applicable.
When the target has two video heads or extended desktop, set the Extended Desktop
option to "ON," as shown in Figure 3-52 below. If using single monitors/single video
head, leave this setting "OFF," as shown in Figure 3-53 below:
1.877.877.2269

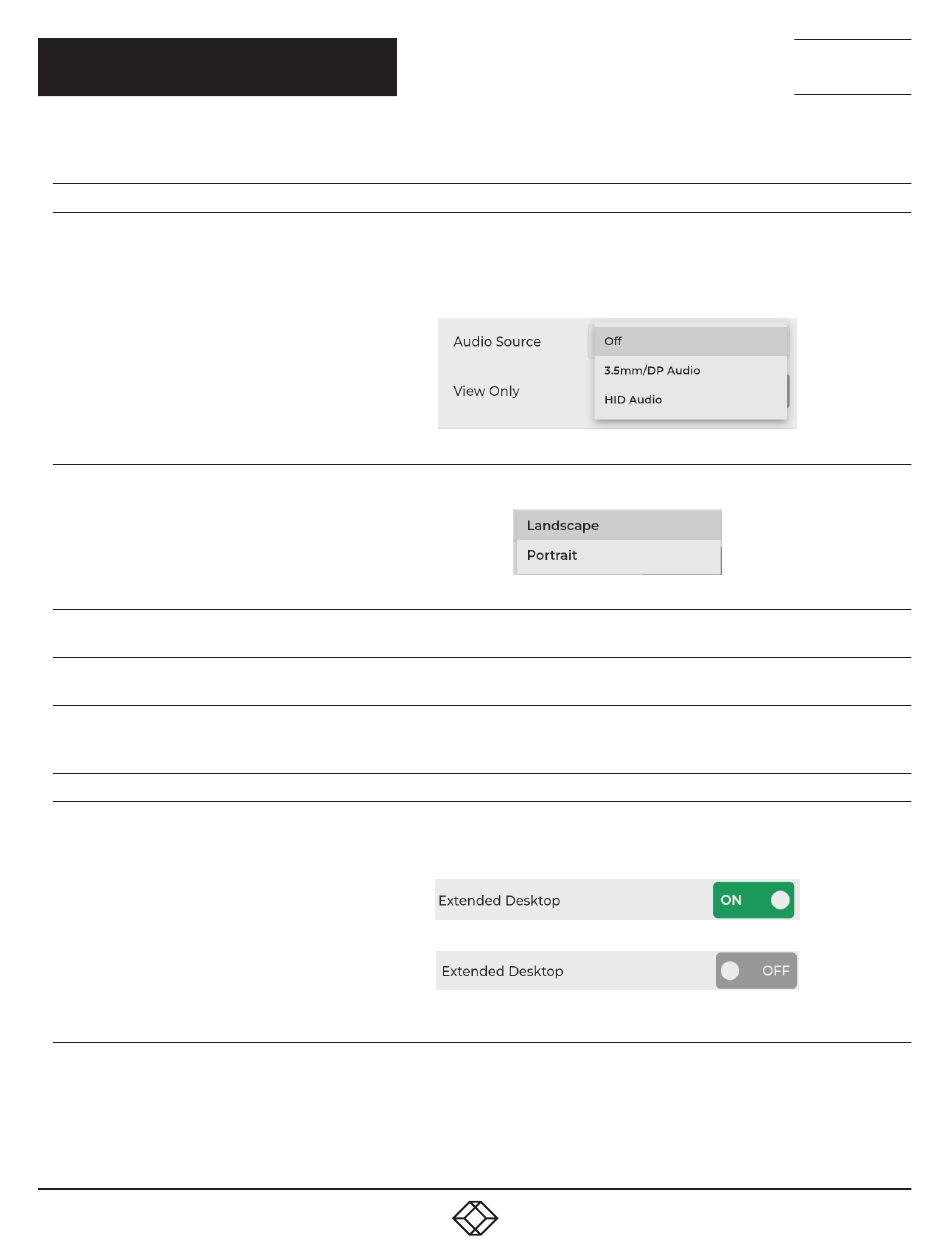

FIGURE 3-50: AUDIO SOURCE OPTIONS
