4

Connector Subsystems Rows A, B, C, D

The conga-B915 is connected to the carrier board via two 220-pin connectors (COM Express Type 2 pinout) for a total of 440 pins connectivity.
These connectors are broken down into four rows. The primary connector consists of rows A and B while the secondary connector consists of
rows C and D.

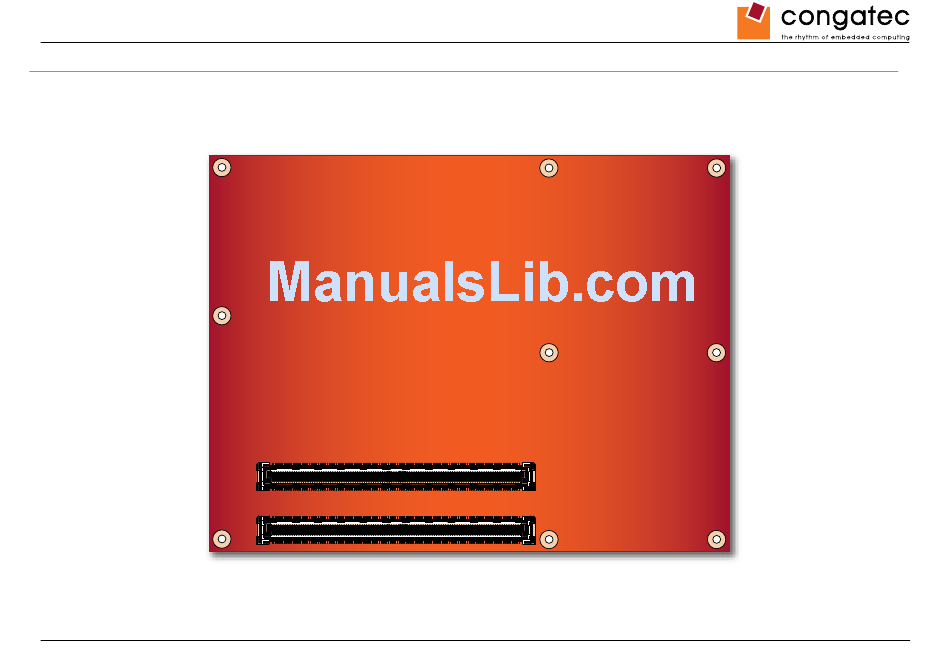

In this view the connectors are seen "through" the module.
Copyright © 2008 congatec AG
A-B
3x x1 PCI Express Lanes
2x Serial ATA
8x USB 2.0
AC'97/HDA/Digital Audio I/F
Gigabit Ethernet
LPC Bus
I²C Bus 400 kHz
VGA (CRT)
LVDS
Power Control
Power Management
C-D
A-B
C-D
x16 PCI Express Graphics
(only available on 82915GME variants)
2x SDVO
(Shared with PEG)
PCI Bus
IDE 1x (Primary)
B915m10
top view
22/92
