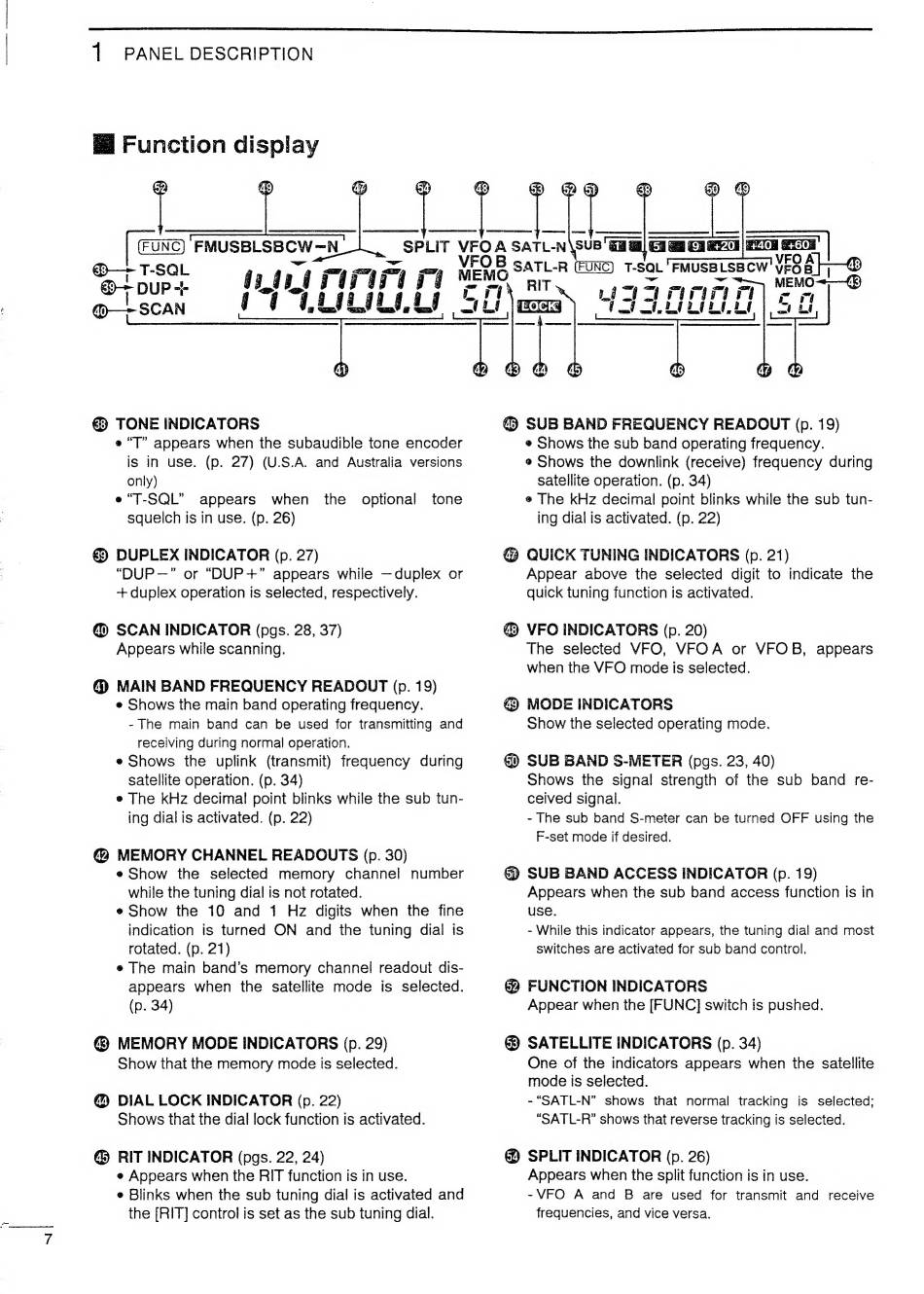

1 PANEL DESCRIPTION
FUNC) FMUSBLSBCW
€ TONE INDICATORS
« "T" appears when the subaudible tone encoder
is in use. (p. 27) (U.S.A. and Australia versions
only)
e "T-SQL" appears when the optional tone
squelch is in use. (p. 26)
€ DUPLEX INDICATOR (p. 27)
"DUP —" or "DUP+" appears while —duplex or
+ duplex operation is selected, respectively.
@ SCAN INDICATOR (pgs. 28, 37)
Appears while scanning.
@ MAIN BAND FREQUENCY READOUT (p. 19)
e Shows the main band operating frequency.
- The main band can be used for transmitting and
receiving during normal operation.
e Shows the uplink (transmit) frequency during
satellite operation. (p. 34)
e The kHz decimal point blinks while the sub tun-
ing dial is activated. (p. 22)
@ MEMORY CHANNEL REACOUTS (p. 30)
e Show the selected memory channel number
while the tuning dial is not rotated.
e Show the 10 and 1 Hz digits when the fine
indication is turned ON and the tuning dial is
rotated. (p. 21)
e The main band's memory channel readout dis-
appears when the satellite mode is selected.
(p. 34)
@ MEMORY MODE INDICATORS (p. 29)
Show that the memory mode is selected.
@ DIAL LOCK INDICATOR (p. 22)
Shows that the dial lock function is activated.
@ RIT INDICATOR (pgs. 22, 24)
e Appears when the RIT function is in use.
e Blinks when the sub tuning dial is activated and
the [RIT] control is set as the sub tuning dial.
SPLIT ve . SATL-N\SUB Gil Gill Gl a CHE | EOE
ae SATL-R (FUNC) T-SQL FMUSBLSBCW VFOB }-®
died Fir) FG MEMO
MEMO~—
| ia leleie cr
ge al LALO LL 'ic La
| a4
SUB BAND FREQUENCY READOUT (p. 19)
@ Shows the sub band operating frequency.
e Shows the downlink (receive) frequency during
satellite operation. (p. 34)
e The kHz decimal point blinks while the sub tun-
ing dial is activated. (p. 22)
@ QUICK TUNING INDICATORS (p. 21)
Appear above the selected digit to indicate the
quick tuning function is activated.
@ VFO INDICATORS (p. 20)
The selected VFO, VFOA or VFOB, appears
when the VFO mode is selected.
@ MODE INDICATORS
Show the selected operating mode.
@ SUB BAND S-METER (pgs. 23, 40)
Shows the signal strength of the sub band re-
ceived signal.
- The sub band S-meter can be turned OFF using the
F-set mode if desired.
€ SUB BAND ACCESS INDICATOR (p. 19)
Appears when the sub band access function is in
use.
- While this indicator appears, the tuning dial and most
switches are activated for sub band control.
@ FUNCTION INDICATORS
Appear when the [FUNC] switch is pushed.
@ SATELLITE INDICATORS (p. 34)
One of the indicators appears when the satellite
mode is selected.
-"SATL-N" shows that normal tracking is selected;
"SATL-R" shows that reverse tracking is selected.
@ SPLIT INDICATOR (p. 26)
Appears when the split function is in use.
- VFO A and B are used for transmit and receive
frequencies, and vice versa.
