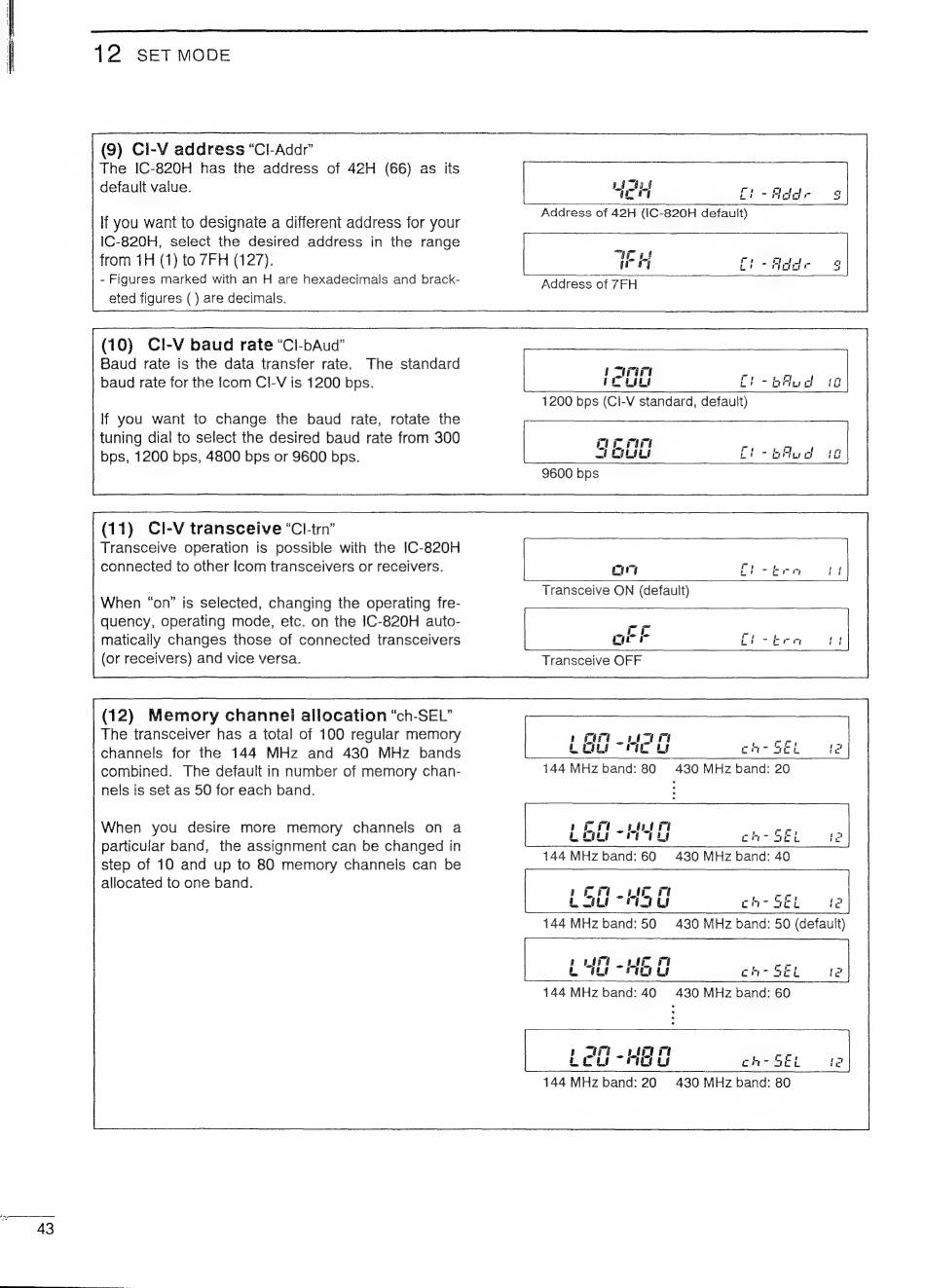

{2 SET MODE
(9) Ci-V address "Cl-Addr"
The IC-820H has the address of 42H (66) as its
default value.
lf you want to designate a different address for your
IC-820H, select the desired address in the range
from 1H (1) to 7FH (127).
- Figures marked with an H are hexadecimals and brack-
eted figures () are decimals.
(10) Cl-V baud rate "Cl-bAud"
Baud rate is the data transfer rate. The standard
baud rate for the Icom CI-V is 1200 bps.
If you want to change the baud rate, rotate the
tuning dial to select the desired baud rate from 300
bps, 1200 bps, 4800 bps or 9600 bps.
(11) Cl-V transceive "Cl-trn"
Transceive operation is possible with the IC-820H
connected to other Icom transceivers or receivers.
When "on" is selected, changing the operating fre-
quency, operating mode, etc. on the IC-820H auto-
matically changes those of connected transceivers
(or receivers) and vice versa.
(12) Memory channei allocation "ch-SEL"
The transceiver has a total of 100 regular memory
channels for the 144 MHz and 430 MHz bands
combined. The default in number of memory chan-
nels is set as 50 for each band.
When you desire more memory channels on a
particular band, the assignment can be changed in
step of 10 and up to 80 memory channels can be
allocated to one band.
| 98 Thi!
Address of 43H (iC-820H default)
| cL
Address of 7FH
1200 bps (CI-V standard, default)
|
9600 bps
us
Transceive ON (default)
Transceive OFF
144 MHz band: 20 430 MHz band: 80
