33

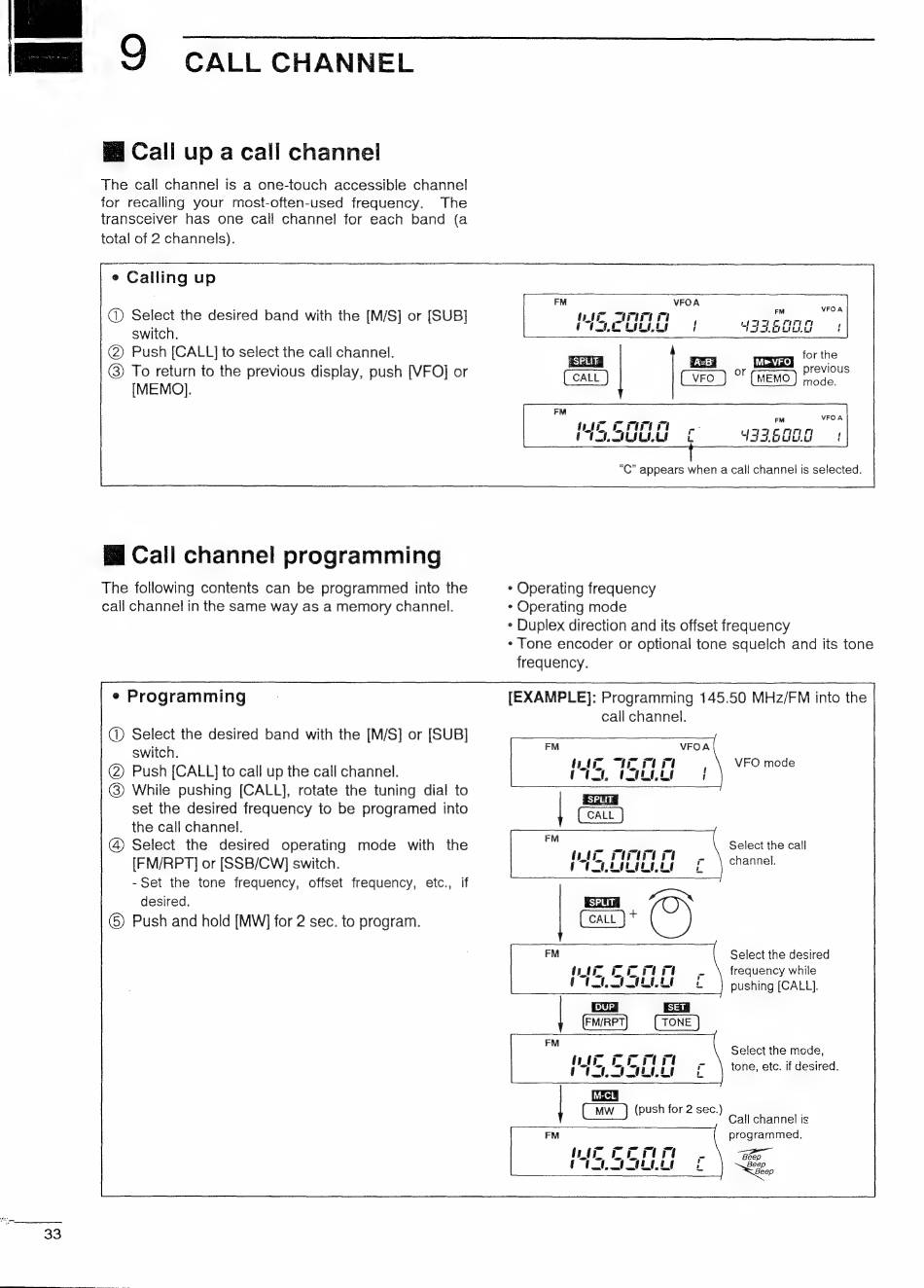

CALL CHANNEL
i Call up a call channel
The call channel is a one-touch accessible channel
for recalling your most-often-used frequency. The
transceiver has one call channel for each band (a
total of 2 channels).
@ Calling up
@ Select the desired band with the [M/S] or [SUB]
switch.
(2) Push [CALL] to select the call channel.
(3) To return to the previous display, push [VFO] or
[MEMO].
Hi Call channel programming
The following contents can be programmed into the
call channel in the same way as a memory channel.
e Programming
(@ Select the desired band with the [M/S] or [SUB]
switch.
(2) Push [CALL] to call up the call channel.
(3) While pushing [CALL], rotate the tuning dial to
set the desired frequency to be programed into
the call channel.
(4) Select the desired operating mode with the
[FM/RPT] or [SSB/CW] switch.
-Set the tone frequency, offset frequency, etc., if
desired.
(©) Push and hold [MW] for 2 sec. to program.
oon for the
= eae
"C" appears when a call channel is selected.
* Operating frequency
* Operating mode
¢ Duplex direction and its offset frequency
* Tone encoder or optional tone squelch and its tone
frequency.
[EXAMPLE]: Programming 145.50 MHz/FM into the
call channel.
VFOA
; VFO mode
Select the call
channel.
Select the desired
frequency while
pushing [CALL].
Select the mcede,
tone, etc. if desired.
