2 BASIC INSTALLATION

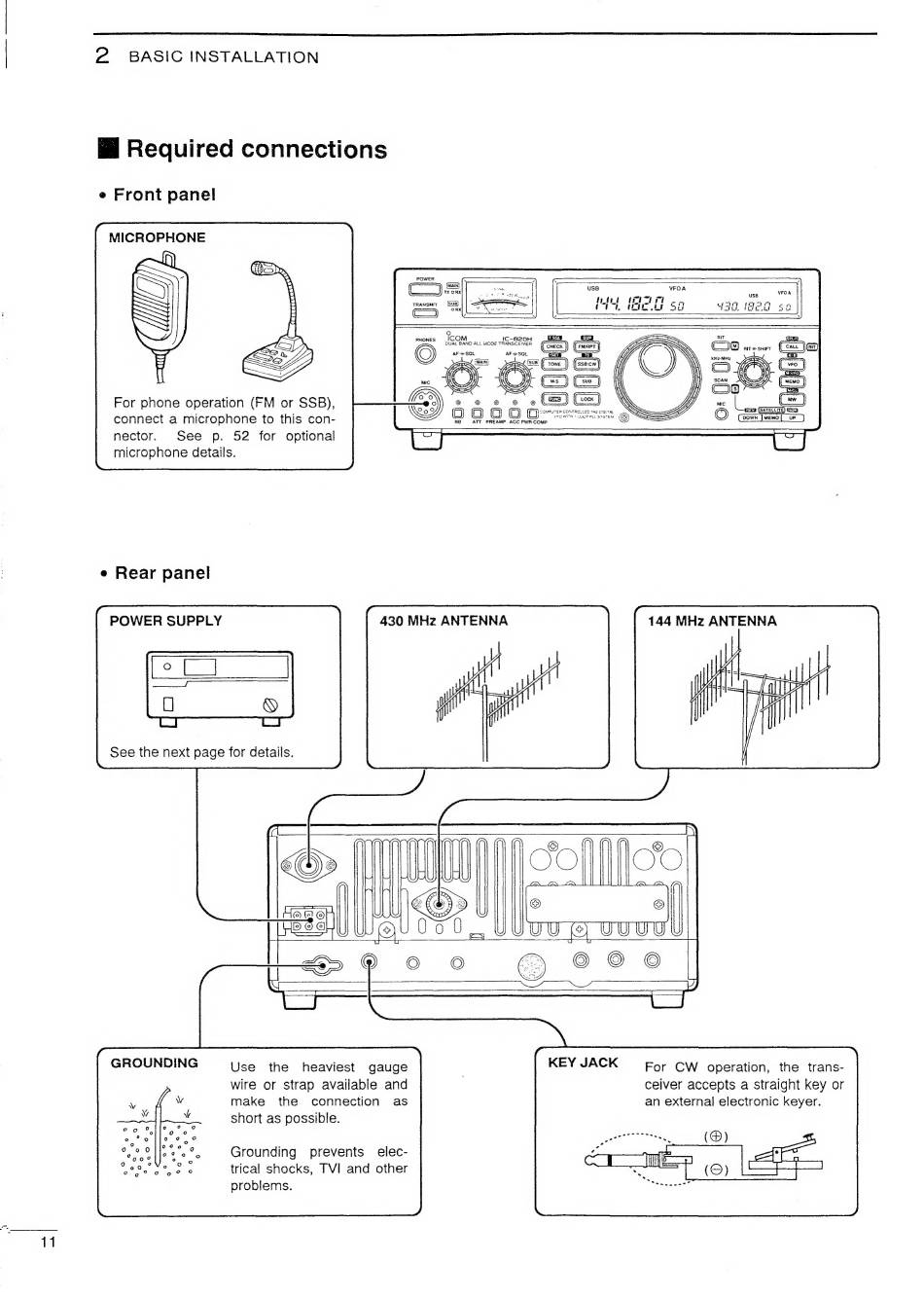

l@ Required connections
e Front panel
MICROPHONE
POWER
Cc} =) a | USB VFOA aon
TRaNsmMiy (U8) a | | pet. f { a rm crt u ai oe oer
—) one! | BON ie outs | | . p vue
°
ICOM 1C-B20H
QUAL BAND ALL MODE TRANSCEIVER
ISPLUT,
AEB
(Gena
lige.
AF->SQL AF»SQt
1
For phone operation (FM or SSB),
connect a microphone to this con-
nector. See p. 52 for optional
microphone details.
e Rear panel
POWER SUPPLY | 430 MHz ANTENNA 144 MHz ANTENNA
See the next page for details.
GROUNDING Use the heaviest gauge KEY JACK For CW operation, the trans-
wire or strap available and ceiver accepts a straight key or
make the connection as an external electronic keyer.
short as possible.
Grounding prevents elec-
trical shocks, TVI and other
problems.
