Hypertherm Powermax45 SYNC Operator's Manual page 105

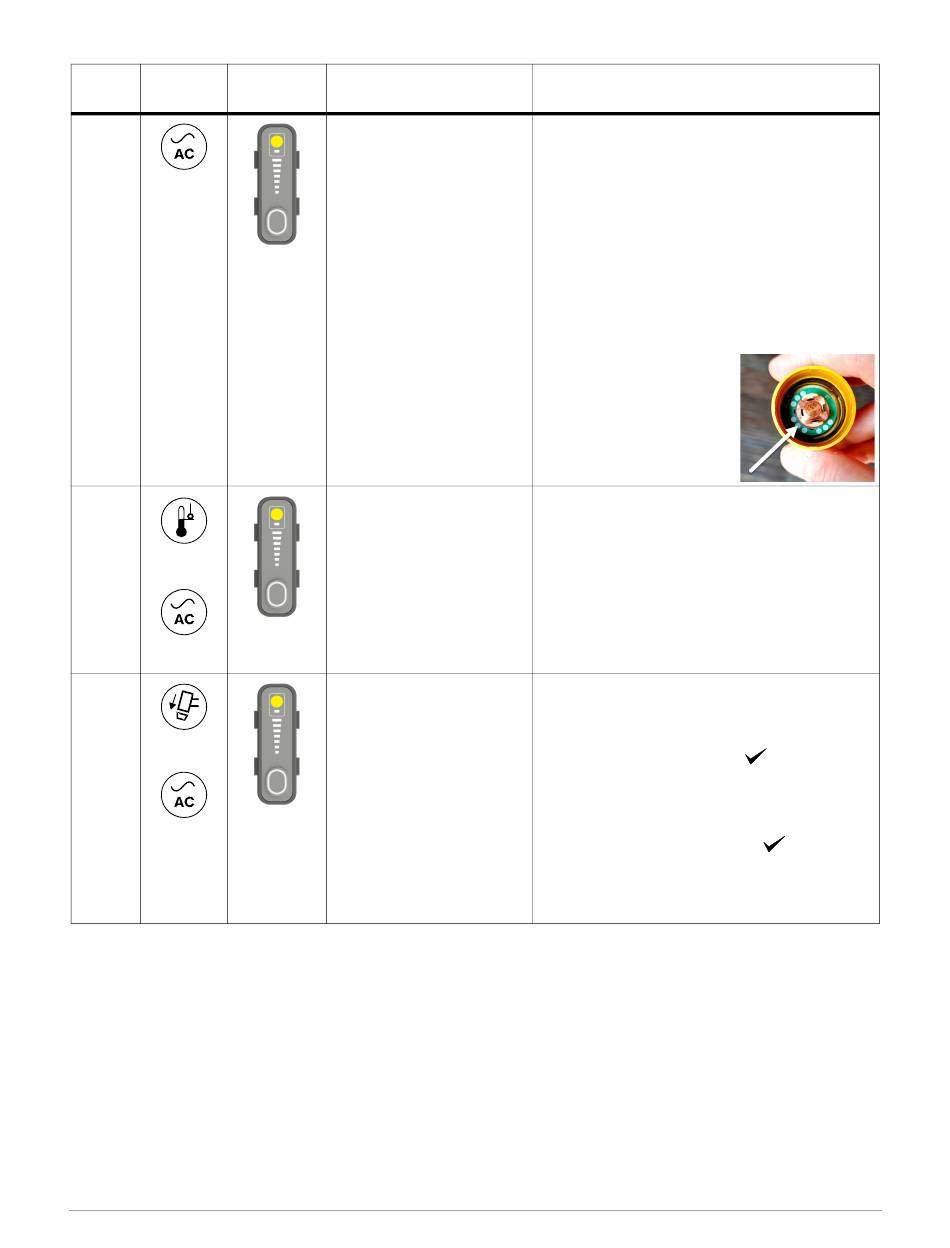

Fault Fault
code LEDs
0-14-1
ON
0-40-5
ON
ON
0-50-1
ON
ON
Powermax45 SYNC Operator Manual
Torch
LEDs Description
The cartridge is not
recognized.
Flashes
yellow
Duty cycle exceeded.
Yellow
The torch-lock switch is set
to the yellow lock (X)
position.
Yellow
811470
Troubleshoot Common Problems
Solutions
This fault shows when a cartridge cannot send
data to the plasma power supply for some
reason. This fault code does not stop the system
from operating.
• When this fault occurs, you can continue to
cut or gouge, but you must set the output
current (A) and the operating mode
manually.
• Lightly blow air into the cartridge to remove
all dust or other contamination. Install the
cartridge again.
• Make sure that the
green ring inside the
cartridge is not broken.
This fault code stops the system from operating.
Do the following:
• Wait 4 minutes for the plasma power supply
to cool. Refer to Prevent overheating
page 61.
• Reduce the power supply current setting or
reduce the torch on time to keep within the
system's rated duty cycle.
This fault code stops the system from operating.
Do the following. A restart is not necessary.
• Hand torch: Move the torch-lock switch to
the green "ready to fire" (
the torch 1 time to get the warning puffs of
air. Fire the torch again to get a plasma arc.
• Machine torch: Move the torch-lock switch
to the green "ready to fire" (
Fire the torch to get a plasma arc.
• Mini machine torch: This fault code is not
applicable to the mini machine torch.
6
on
) position. Fire
) position.
105
