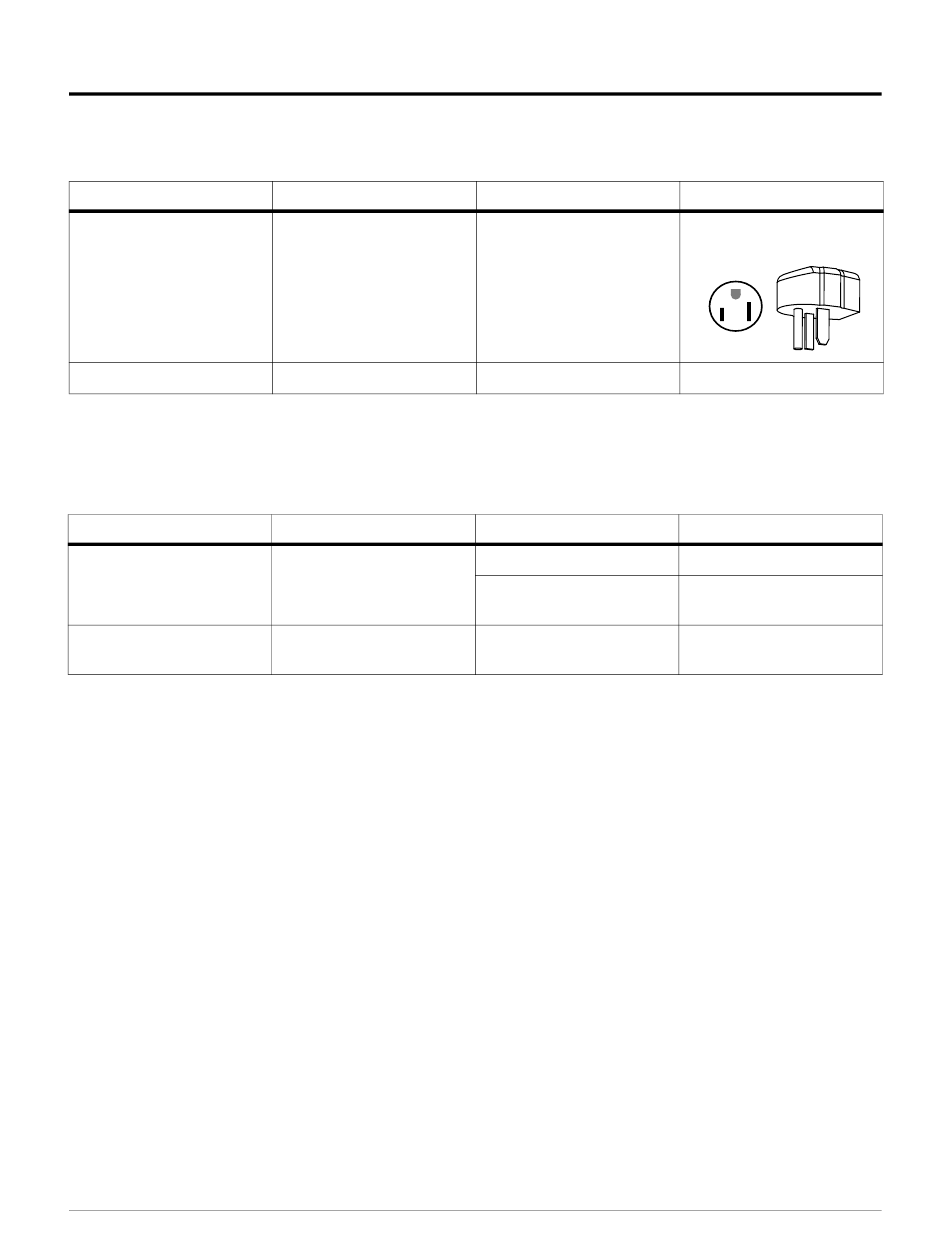

Prepare the power cord and plug

CSA systems

Model
1-phase
3-phase
* An approved plug must be installed on the power cord by a licensed electrician according to all national and
local codes.

CE/CCC systems

Model
1-phase
3-phase
* An approved plug must be installed on the power cord by a licensed electrician according to all national and
local codes.
** Style H07RN-F cord is a harmonized, heavy-duty, flexible, rubber-insulated, black-neoprene-jacketed
multi-conductor IEC60245-4 / EN50525 European power cord with CE printed on the cord. The H07RN-F
cord used by Hypertherm also has a CCC certification to GB/T 5013.4, with CCC printed on the cord.
Powermax45 SYNC Operator Manual
Configurations
200 V – 240 V
480 V
Configurations
200 V – 240 V
380 / 400 V
811470
Install and Set Up the Plasma Power Supply
Power cord
10 AWG 3-wire 50 A, 250 V power plug
(NEMA 6-50P) included
14 AWG 4-wire Power plug not included*
Power cord
10 AWG 3-wire Power plug not included*
6 mm 2 3-wire style
H07RN-F**
2.5 mm 4-wire Power plug not included*
2
styleH07RN-F**
2
Power plug
Power plug
