Operate the Plasma System

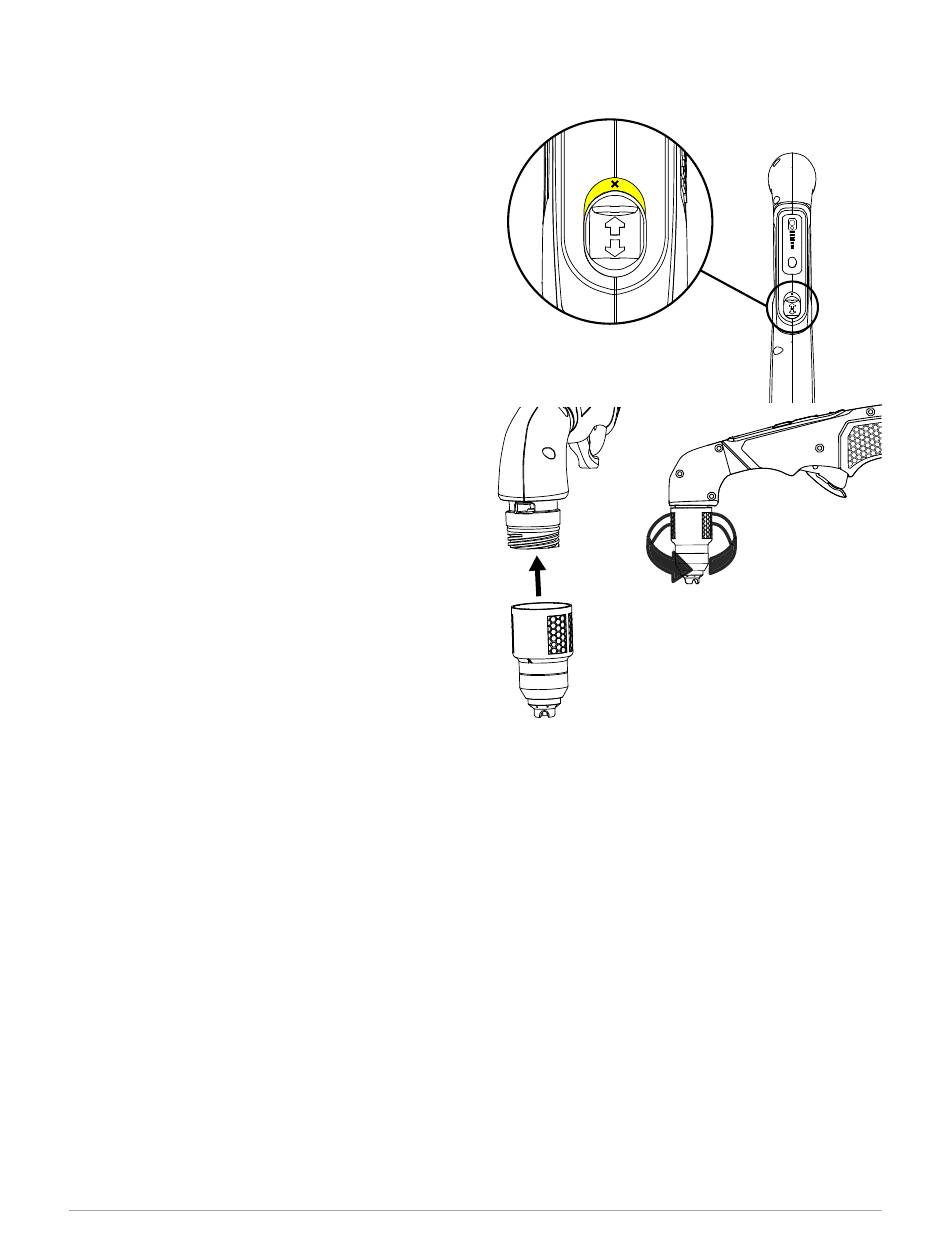

Install the cartridge

Cartridges are not preinstalled on new
torches.
1. Make sure that the power switch on the
plasma power supply stays OFF (O).
2. Make sure that the torch-lock switch on
the torch is set to the yellow lock (X)
position.
3. If this is a new torch, remove the vinyl cap
from the torch.
4. Install the correct Hypertherm cartridge for
your cutting or gouging application.
Cutting and piercing with a hand

torch: Refer to
the Hand Torch
Gouging with a hand torch: Refer

to Gouge with the Hand Torch
page 77.

Cut expanded metal

To cut expanded metal, install a Hypertherm cutting cartridge. The system does not require a
dedicated mode for cutting expanded metal.

Expanded metal has a slotted or mesh pattern. Cutting expanded metal
causes cartridges to wear more quickly because a continuous pilot arc is
necessary. A pilot arc occurs when the torch is fired but the plasma arc is
not in contact with the workpiece.
50
Cut and Mark with
on page 63.
on
Tighten 1/4 turn to install.
