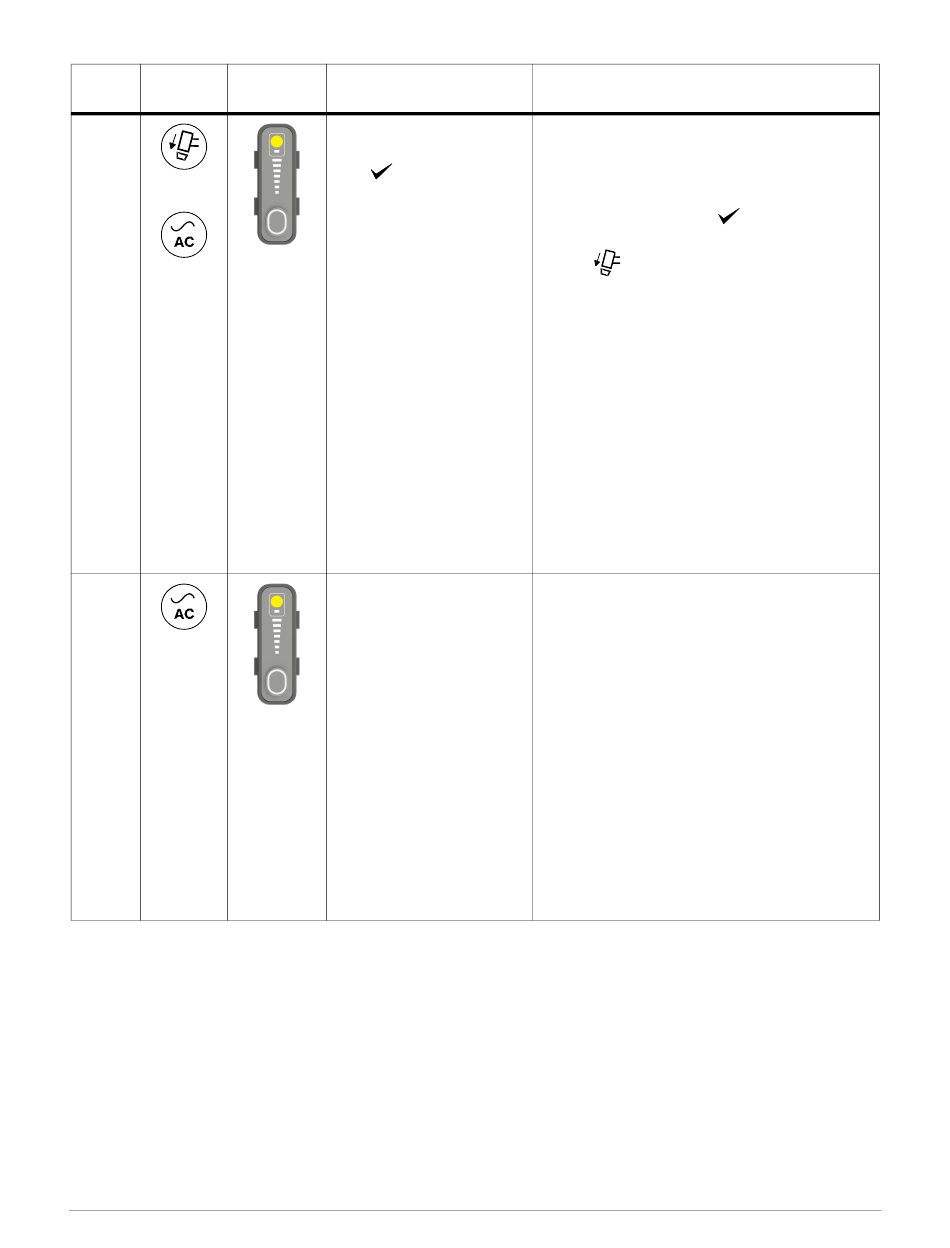

Troubleshoot Common Problems
Fault Fault
code LEDs
0-50-2
ON
ON
0-50-3
ON
106
Torch
LEDs Description
The torch-lock switch is set
to the green "ready to
fire" ( ) position, but the
torch is not prepared to fire.
Yellow
The system is reading data
from the cartridge.
Yellow
Solutions
This fault code identifies a condition in which an
additional step is necessary for hand torches
before the hand torch will fire a plasma arc.
• When you move the torch-lock switch to the
green "ready to fire" (
code changes from 0-50-1 to 0-50-2, and
the icon goes off.
• Hand torch: Fire the torch 1 time to get the
warning puffs of air. The 0-50-2 fault code
goes off, and the LED on the hand torch
changes from yellow to green. The torch is
now prepared to fire a plasma arc.
• Machine torch: The 0-50-2 fault code
shows for approximately 1 second and then
goes off. Fire the torch to get a plasma arc.
There are no warning puffs of air. If the
0-50-2 fault code does not go off, send a
STOP signal from the CNC to remove the
fault.
• Mini machine torch: This fault code is not
applicable to the mini machine torch.
This fault code flashes quickly while the system
reads configuration data from the cartridge.
Wait for the fault code to go away on its own.
• The system will not cut until the fault
code goes away.
• This fault code can show for up to
6 seconds if electrical noise causes
interference with the data connection.
• If the system cannot read the data from the
cartridge, a different fault code will show.
• Hand Torch: The usual behavior is to see a
0-50-2 fault code after 0-50-3 goes away.
Fire the torch 1 time to get the warning
puffs of air. The 0-50-2 fault code goes
away. The torch is now prepared to fire a
plasma arc.
