Controls and indicators on the plasma power supply

Cutting and gouging controls

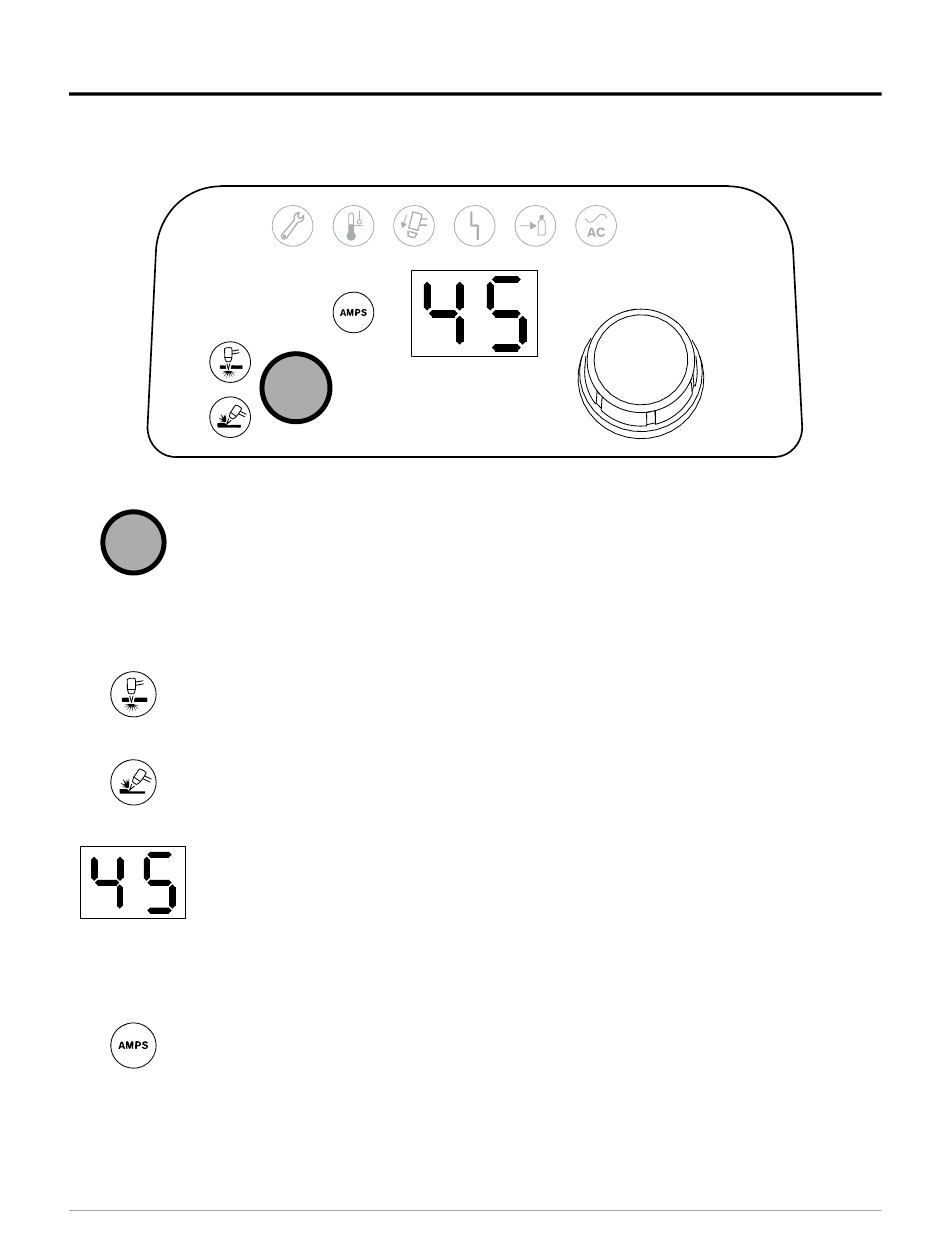

Mode button – Press this button to toggle between cut mode and gouge mode. The
Cut Mode LED (green) – When illuminated, this LED indicates that the system is
Gouge Mode LED (green) – When illuminated, this LED indicates that the system is
2-digit display – This display shows the output current by default.
AMPS LED (green) – When illuminated, this LED indicates that the 2-digit display
Powermax45 SYNC Operator Manual
system automatically adjusts the gas pressure based on:
The mode selected

The torch connected to the power supply

The length of the torch lead

ready to perform plasma cutting operations.
ready to perform plasma gouging operations.
When certain system faults occur, this display shows a fault code. Refer to
icons and fault codes on page 96.
If you manually adjust system settings, such as the gas pressure for example,
this display shows this information. Refer to
manually on page 57.
shows the cutting current (amperage).
When the 2-digit display shows other values, such as gas pressure or a fault
code, the AMPS LED is not illuminated.
