Examine the air filter bowl and filter element

It is extremely important to keep a clean, dry gas line to do the following:
Prevent oil, water, dirt, and other contaminants from causing damage to internal

components.
Get the best possible cut quality and consumable life.


Drain water from the bowl (if necessary)

A small amount of water can collect in the bottom of
the filter bowl. The filter bowl automatically removes
the water when enough water collects to engage
the float mechanism inside the bowl.
To manually drain water from the bowl, remove the
nut at the bottom of the bowl with your hand.
To prevent damage to the plastic nut, do not use a
wrench or other tool.

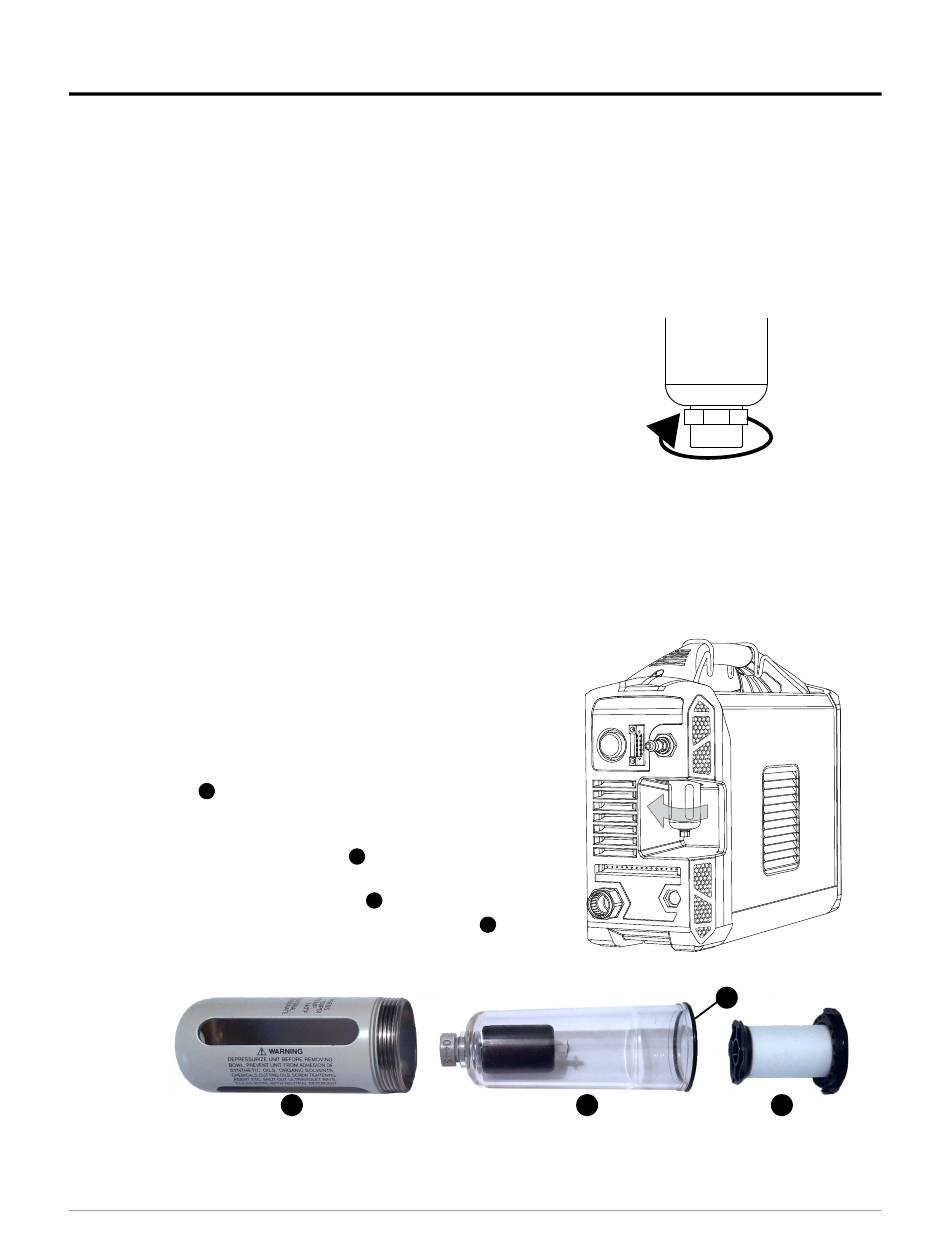

Remove the air filter bowl and filter element

1. Set the power switch on the plasma power supply to OFF (O).
2. Disconnect the power cord from the electrical
power.
3. Disconnect the gas supply from the rear of the
plasma power supply.
4. Remove the air filter bowl by unscrewing the metal
guard until it disconnects from the air filter
1
assembly inside the plasma power supply.
5. Remove the air filter bowl
6. Gently pry the filter element
bowl. Be careful not to damage the O-ring
the top of the bowl.
Powermax45 SYNC Operator Manual
from the metal guard.
2
out of the filter
3
1
811470
