CONNECTIONS AND INSTALLATION
■ MB-108 installation
The optional MB-108 mounting bracket is for
mounting the Main unit to a flat surface (less than 25
mm thick and can support more than 15 kg), such as
an instrument panel.
The MB-108 provides a one-touch attachment or
detachment.

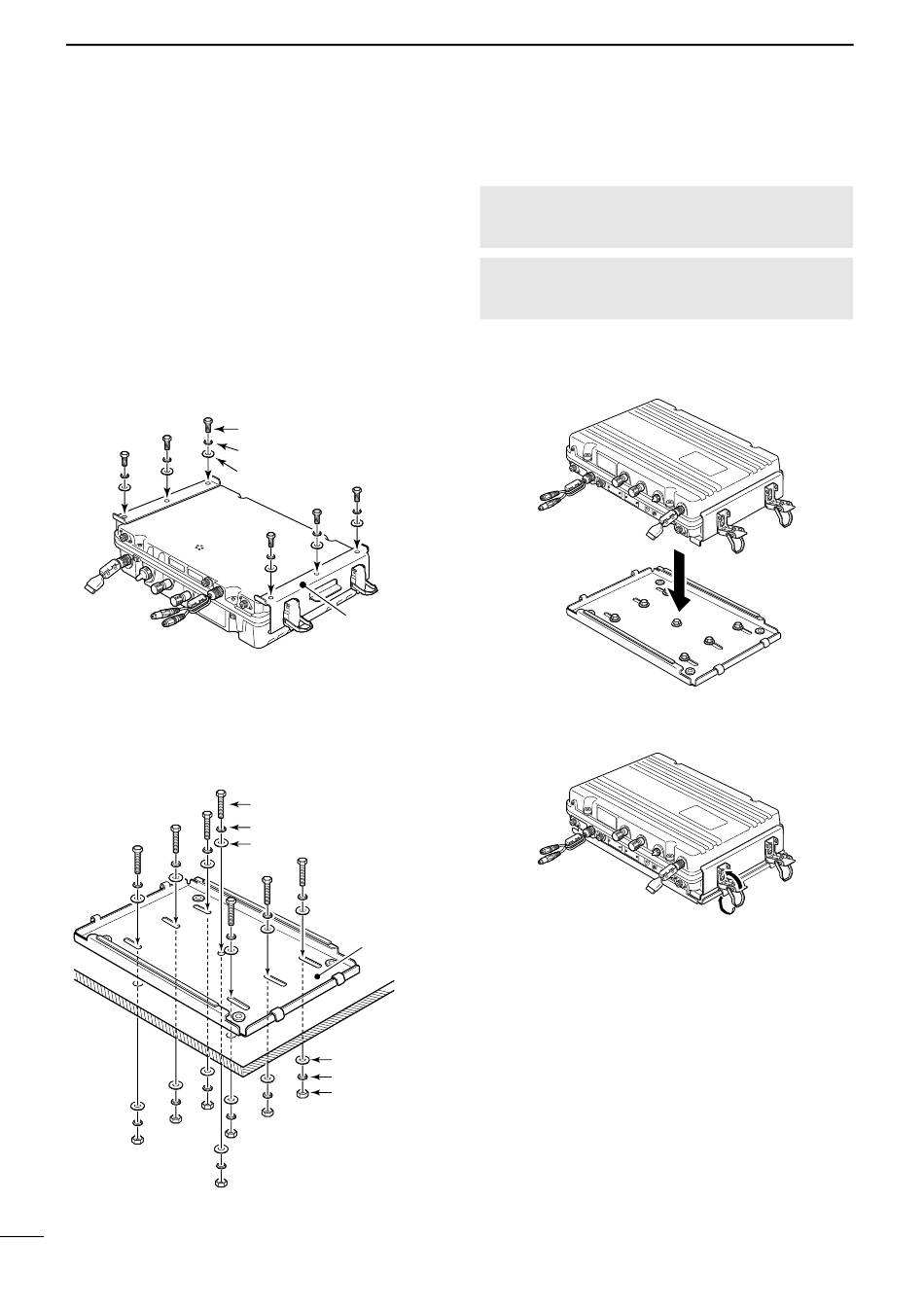

1. Attach the mounting handles with the 6 supplied
hex head bolts (6 × 15 mm), 6 spring and flat
washers, as shown below.
2. Drill 7 holes, 6 ~ 8 mm in diameter, using the
template supplied with the MB-108.
3. Attach the mounting base to a flat surface using
the 7 hex head bolts (6 × 50 mm), 14 spring and
flat washers, and 7 nuts supplied with the MB-108,
as shown below. (Torque: 3 N•m)
69
Hex head bolt (6 × 15 mm)
Spring washer
Flat washer
Mounting
handle
Hex head bolt (6 × 50 mm)
Spring washer
Flat washer
Mounting
base
Flat washer
Spring washer
Nut (M6)
CAUTION: KEEP the transceiver and microphone
at least 1 meter away from your vessel's magnetic
navigation compass.
CAUTION: Wear gloves when installing the MB-108.
The edges of the MB-108 may be sharp and may cut
your fingers or hands.
4. Mount the Main unit with the mounting handles
attached to the mounting base.
5. Lock the Main unit in place by closing the 4
latches on the mounting handles.
