Using The Bosch Battery; Using The Integrated Battery - Bosch Quadriga Cargoline 11G Translation Of Original Operating Instructions

6.8

Using the BOSCH battery

Switch off the electric drive system.

6.8.1

Using the integrated battery

Only applies to pedelecs with this equipment
6.8.1.1 Removing the integrated battery
1
2

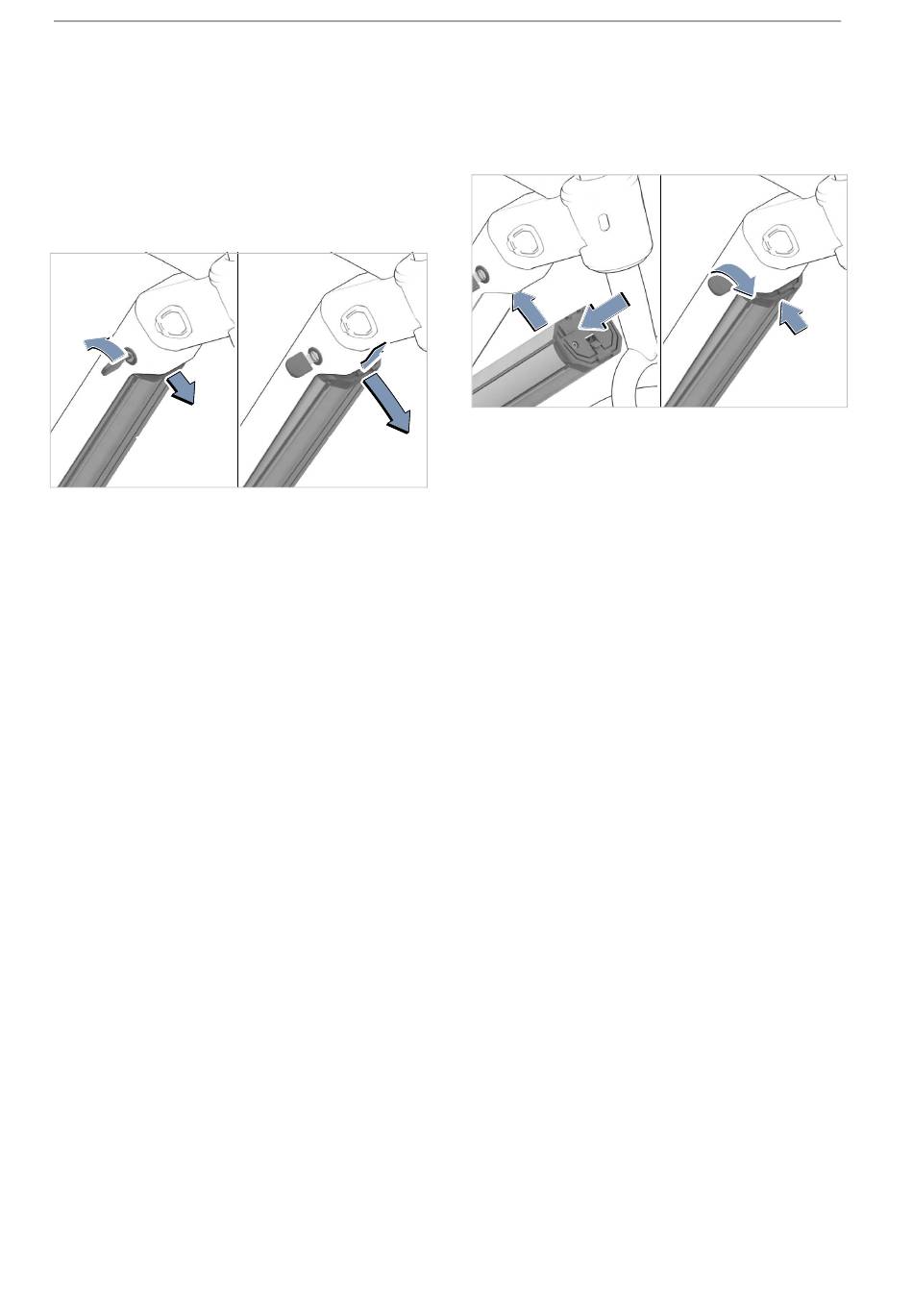

Figure 139: Removing the integrated battery
1 Open battery lock with battery key (1).
 The battery is released and falls into the
retainer guard (2).
2 Hold the battery in your hand from below. Use
the other hand to push on the retainer guard
from above (3).
 The battery is released and falls into the
hand (4).
3 Remove the battery from the frame.
4 Remove the battery key from the battery lock.
MY24K10 - 63_1.0_01.02.2024
6.8.1.2 Inserting the integrated battery
The key is inserted in the lock.

The lock is unlocked.

2
3
Figure 140: Inserting the integrated battery
4
1 Place the battery into the lower mount with the
contacts facing the front (1).
2 Flip the battery upwards so that the battery is
held by the retainer guard (2).
3 Keep the lock open with the key.
4 Push the battery upwards (3).
 The battery can be heard locking into place.
5 Check battery to ensure it is firmly in place on
all sides.
6 Lock the battery with the battery key;
otherwise, the battery may fall out of the mount
when you open the see (4).
7 Remove the battery key from the battery lock.
8 Check the battery to ensure it is firmly in place
before each ride.
Operation
4
1
3
