Checking the riding light

1 Check the cable connections on the headlight
and rear light for damage and corrosion and
ensure they are firmly in position.
 If cable connections are damaged or corroded,
or are not firmly in positioned. take pedelec out
of service. Contact specialist dealer.
2 Switch light on.
3 Check that the headlight and rear light come
on.
I
II
III

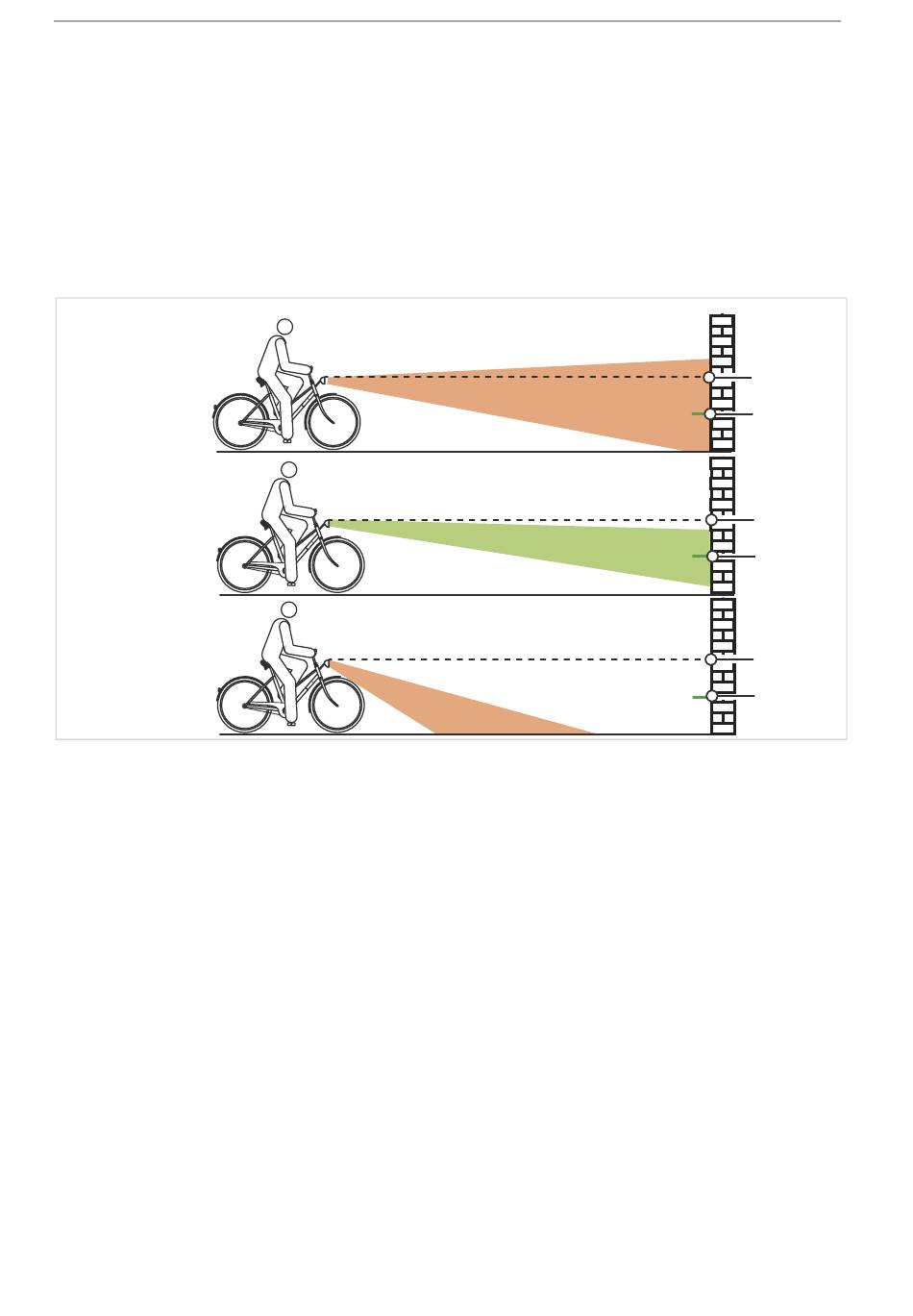

Figure 196: Light positioned too high (1), correctly (2) and too low (3)
6 Check the position of the light beam.
 If the light is positioned too high or too low,
adjust riding light (see Section 6.4.14.1).
MY24K10 - 63_1.0_01.02.2024
Cleaning, maintenance and inspection
 If the headlight or rear lights do not come on,
take pedelec out of service. Contact specialist
dealer.
4 Place pedelec 5 m from the wall.
5 Stand the pedelec up straight. Hold the
handlebars straight with both hands. Do not
use the kickstand.
1
2
1
2
1
2
