6.4.10 Control panel and gear shift

The control panel and gear shift must be adjusted
to the rider's needs.
1 Undo attachment screw.
2 Place control panel or gear shift into the
position where the rider can use the control
panel or the shifter with their thumb and/or
index finger.
3 Fasten attachment screw into position with a
4 mm hex bit with 3 Nm.
6.4.10.1 SHIMANO shifter
Only applies to vehicles with this equipment

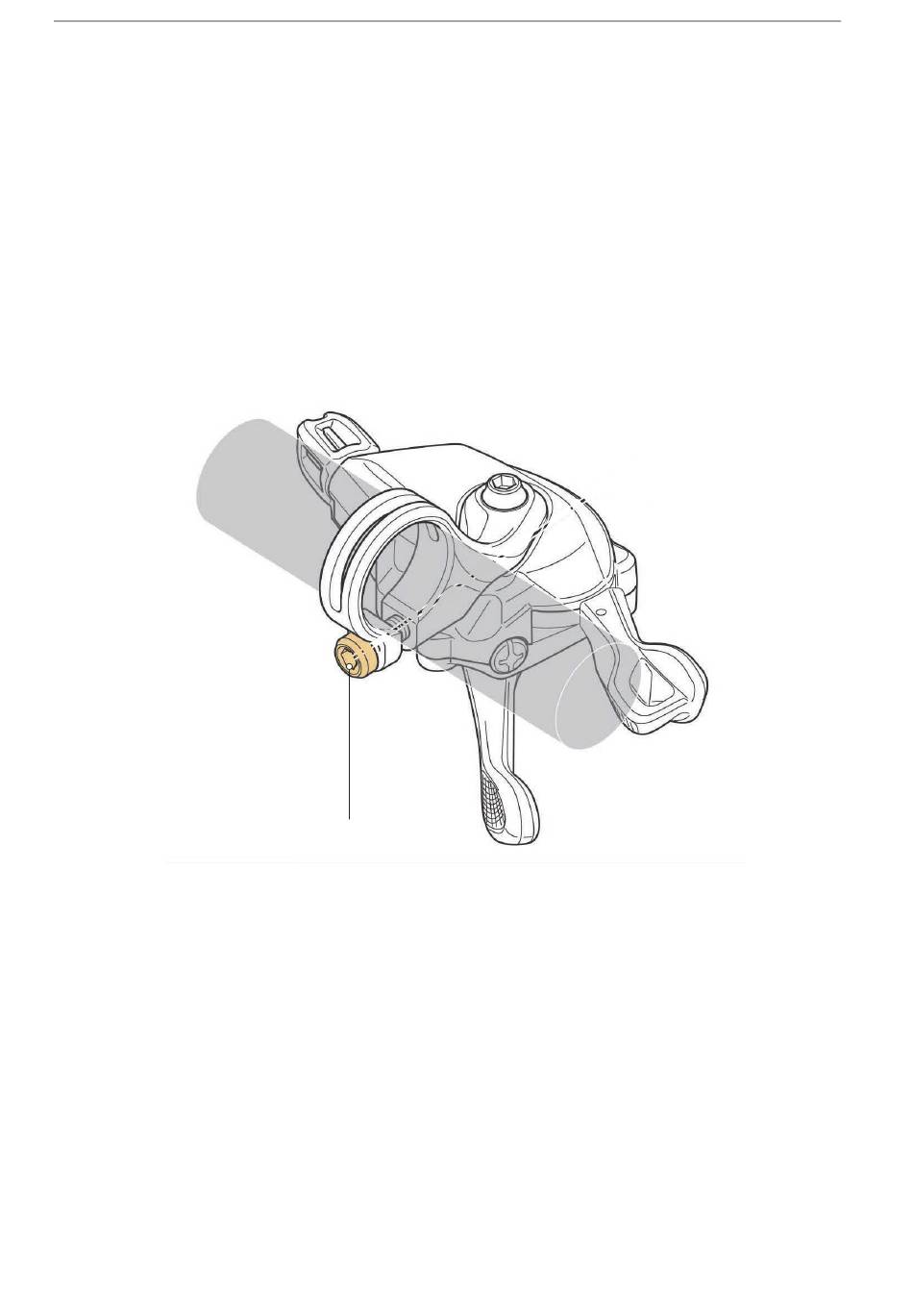

Figure 118: Position of attachment screw (1)
