Rechargeable battery

3.6.7.1 Battery level indicator screen

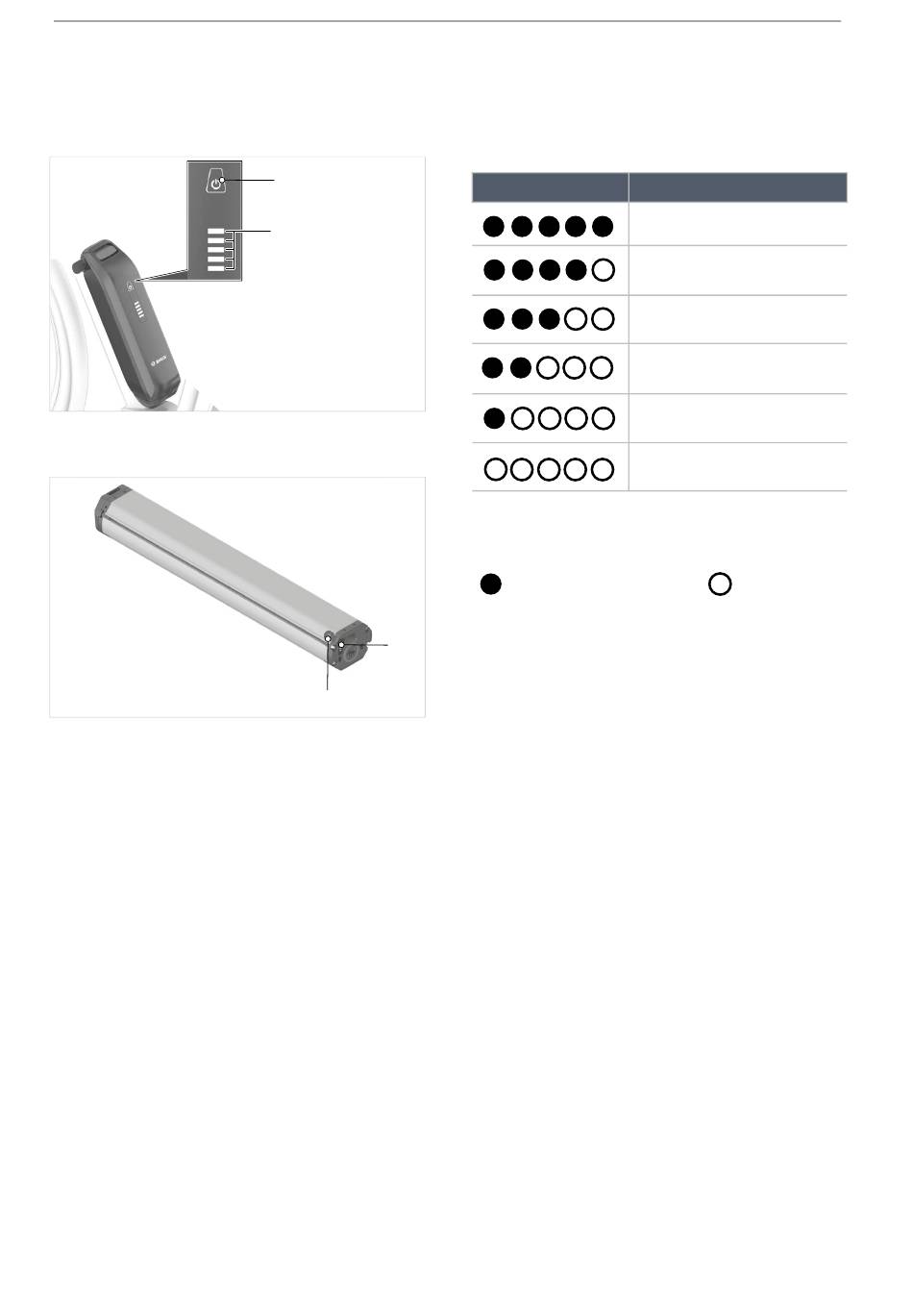

Each battery has its battery level indicator:
Figure 63: BOSCH PowerPack battery indicator and
operating element
Figure 64: BOSCH PowerTube indicator and operating
element
1 On-Off button (battery)
2 Battery Level indicator screen
MY24K10 - 63_1.0_01.02.2024
2
1
2
1
The five green LEDs on the battery level indicator
show the charge level when the battery is
switched on. Each LED represents 20% of battery
capacity.
LED 1,2,3,4,5 Battery level
Figure 65: Battery level indicator
Symbols:
LED on
All five LEDs will light up when the battery is fully
charged. The charge level for the activated
battery is also shown on the on-board computer.
If the battery capacity is less than 10%, the last
remaining LED indicator will flash.
If the battery level falls below 5%, all the LEDs on
the battery level indicator will go out.
The battery level is still shown on the on-board
computer.
Description
100 ... 80%
79 ... 60%
59 ... 40%
39 ... 20%
19 ... 15%
5 ... 0%
LED off
