BOSCH LED Remote on-board computer

The on-board computer on the handlebars is used as a control panel. It controls the system and all
indicators on the display screen using six buttons.

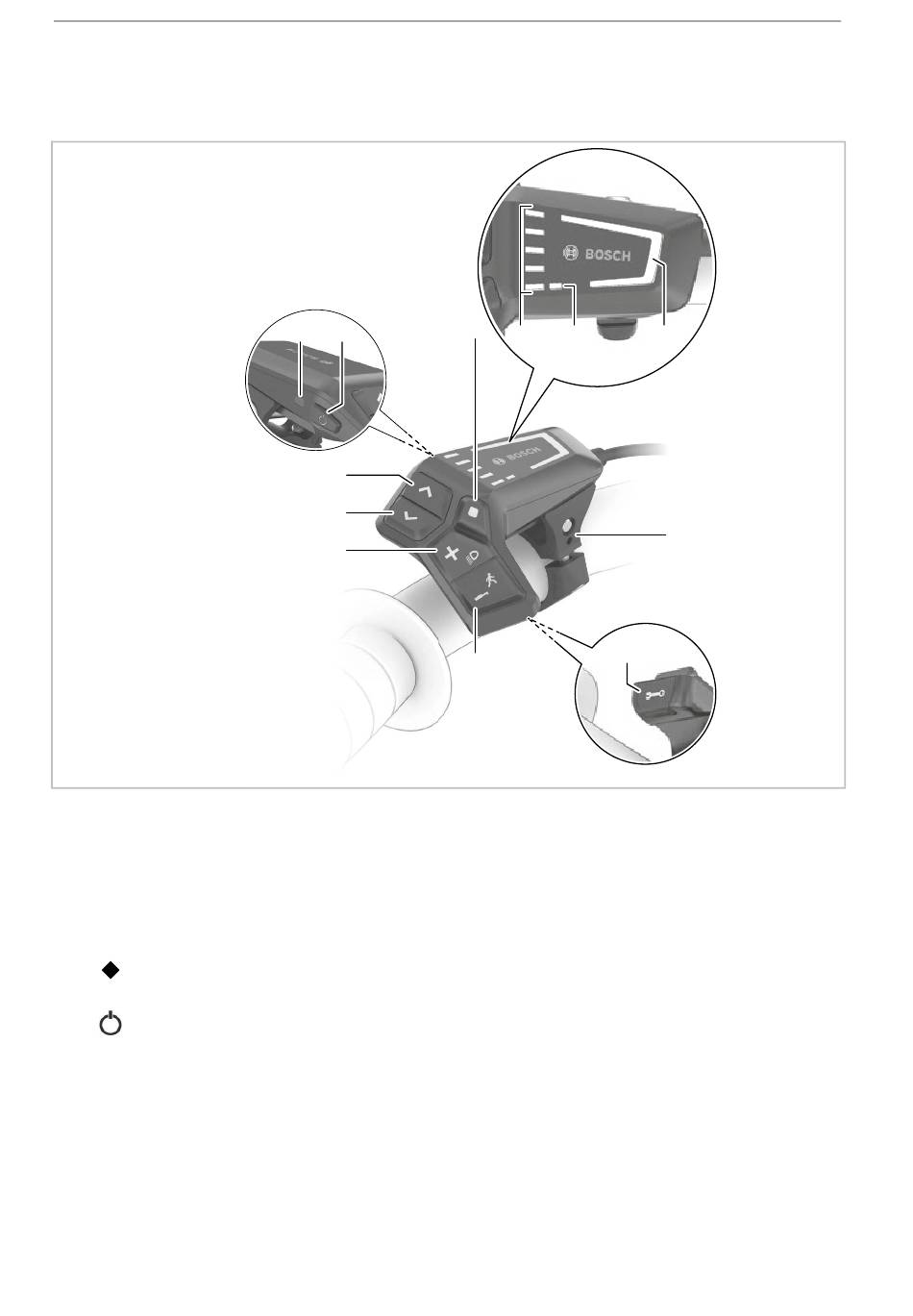

Figure 52: Overview of BOSCH LED Remote on-board computer
1 Selected level of assistance indicator
2 ABS indicator (optional)
3 Battery level indicator (on-board computer)
4 Select button
5 On-Off button (on-board computer)
6 Ambient light sensor
7 Increase brightness button/
>
forward button
MY24K10 - 63_1.0_01.02.2024
6
5
7
8
9
10
4
3 2
11
8 Decrease brightness button/
<
back button
9 Plus button/
+
light button
10 Minus button/
–
push assist button
11 Diagnosis connection (for maintenance
purposes only)
12 Mount
Description
