R0E424270MCU00 User's Manual 5. Debugging Functions
5.1.7

Viewing the Progress of Boot-Up Processing

You can check the progress of boot-up processing in the Connecting dialog box.
This dialog box appears when boot-up processing is started and remains open until it is completed.
As long as display of the Device setting and the Configuration properties dialog boxes continues, you cannot manipulate this
dialog box.

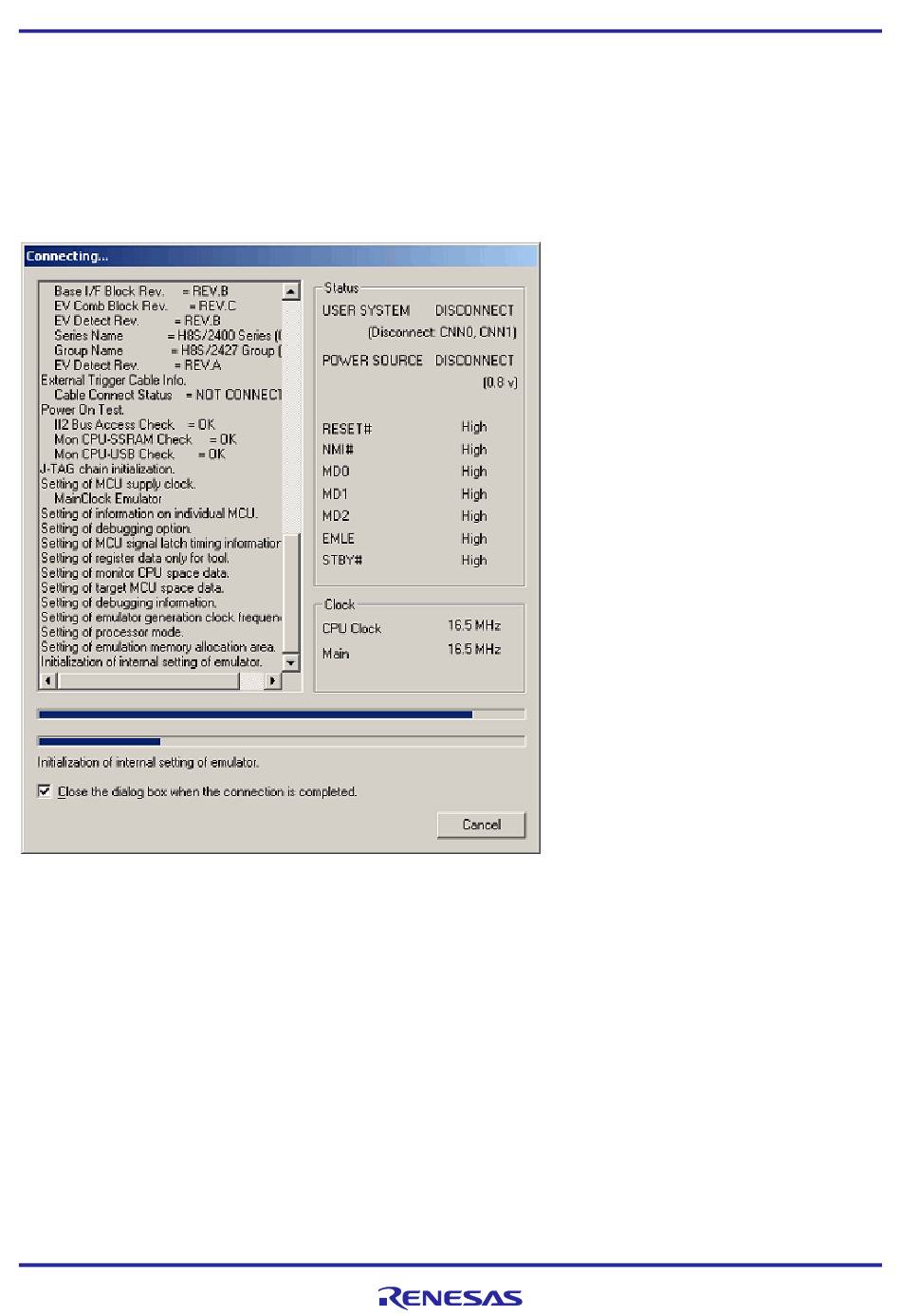

Figure 5.6 Connecting dialog box
(1) Description of progress
The progress history box on the left-hand side of the dialog box shows the history of progress.
The information shown here is saved in a bug report. To check the contents of the bug report, select Technical Support ->
Create Bug Report from the Help menu.
(2) Display of pin states
The pin states are updated when you close the Configuration properties dialog box.
A warning will be shown in the progress history box if the pin states do not match the settings made in the Device setting
dialog box.
